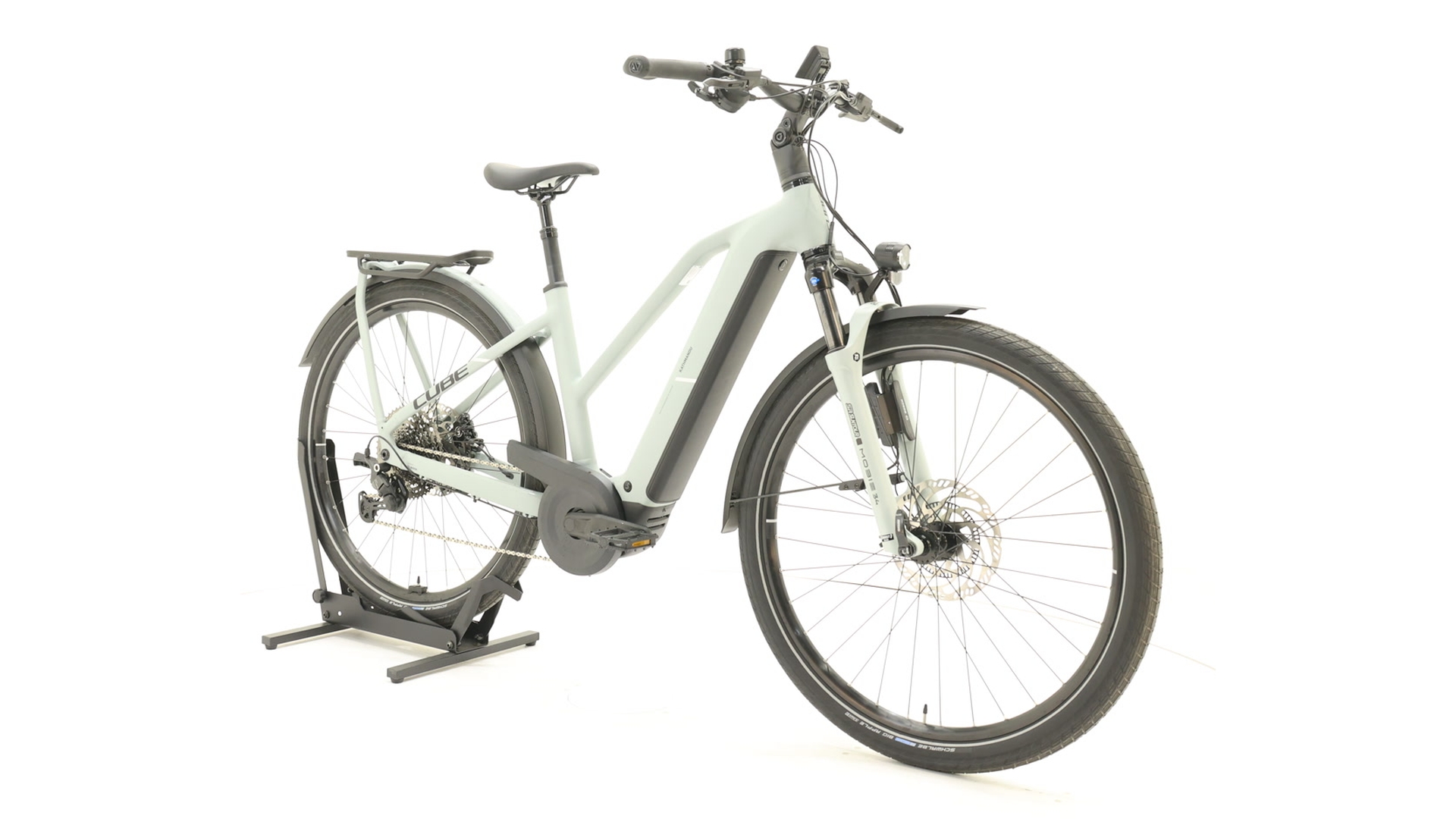

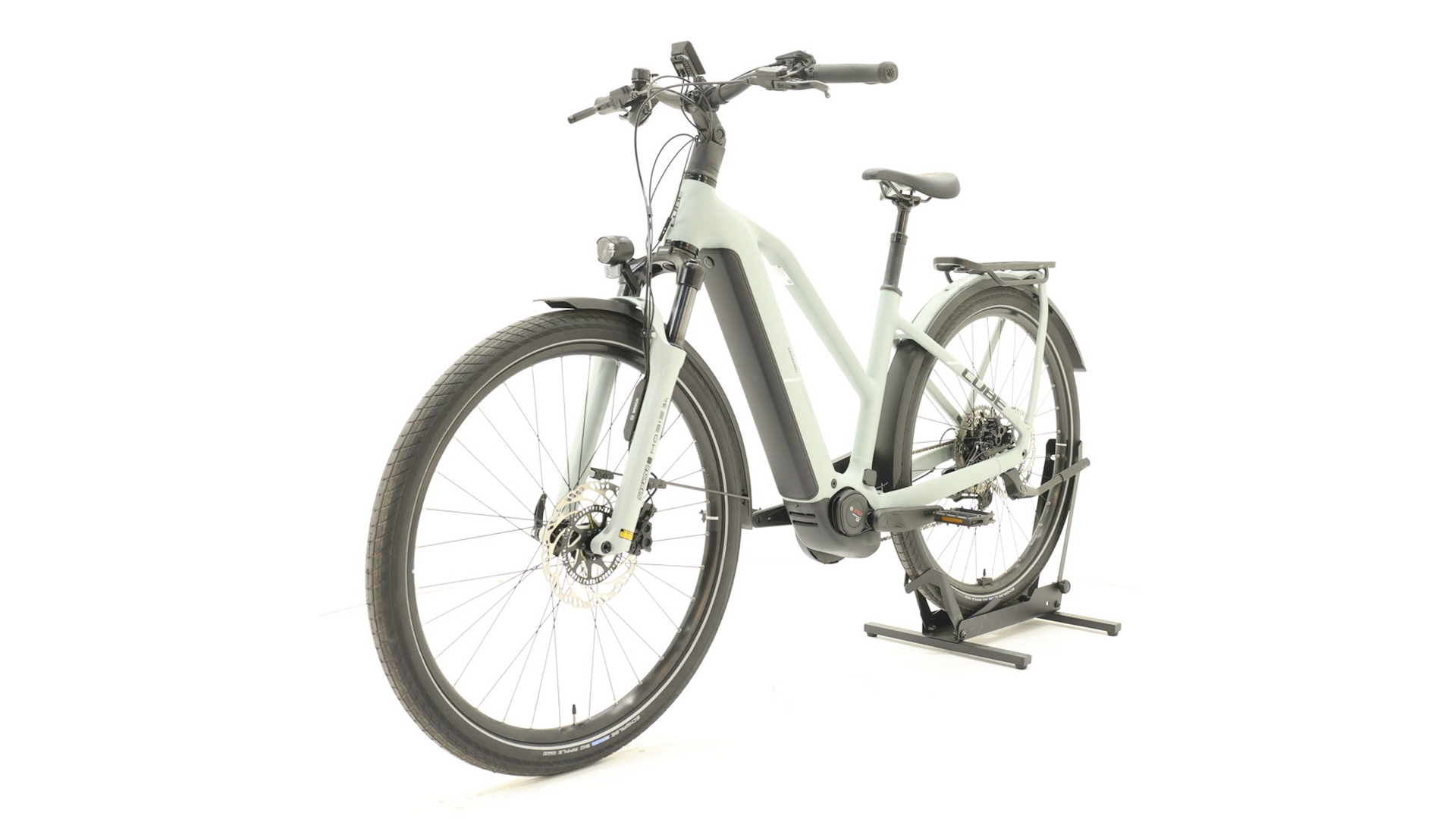

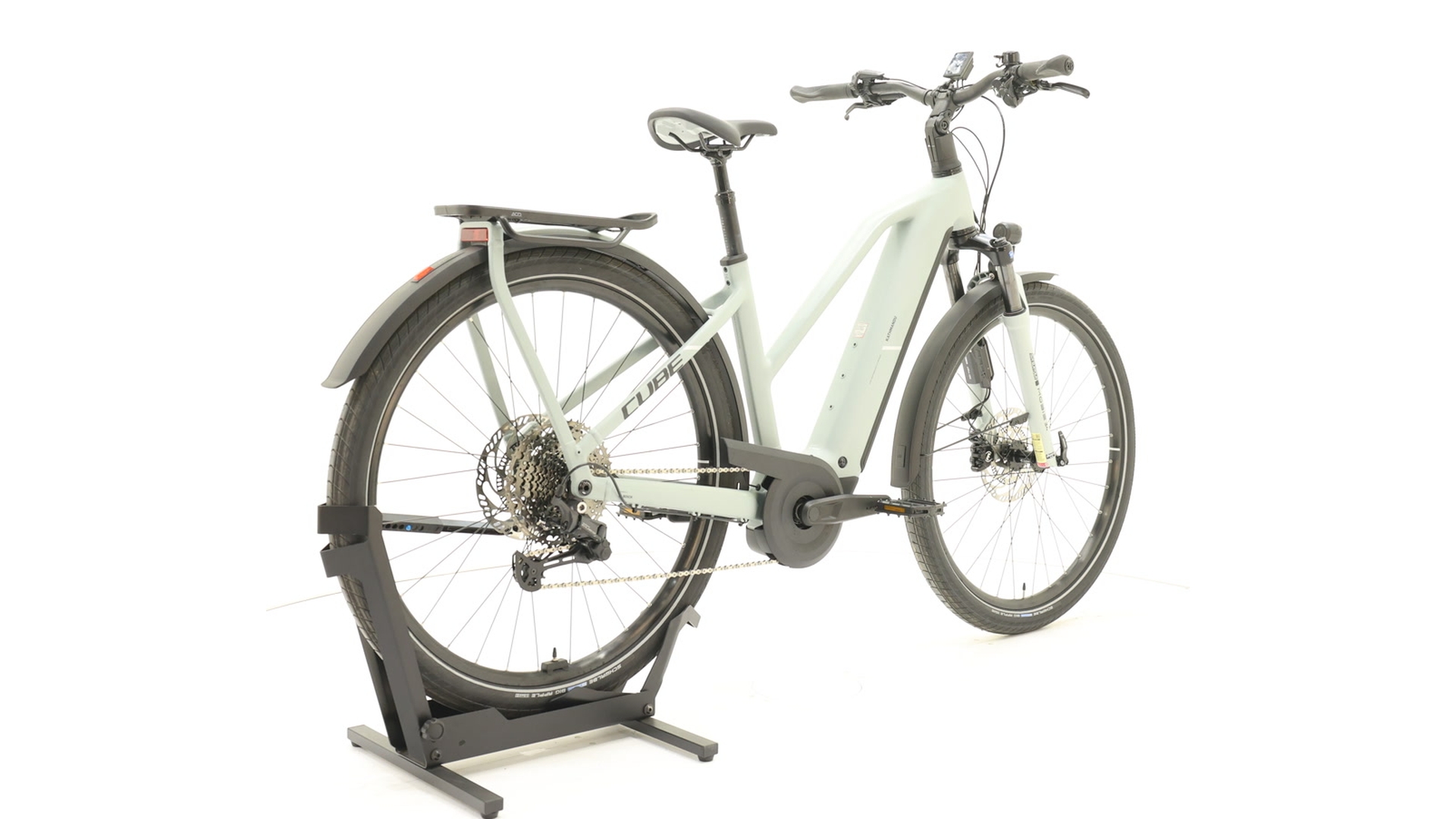

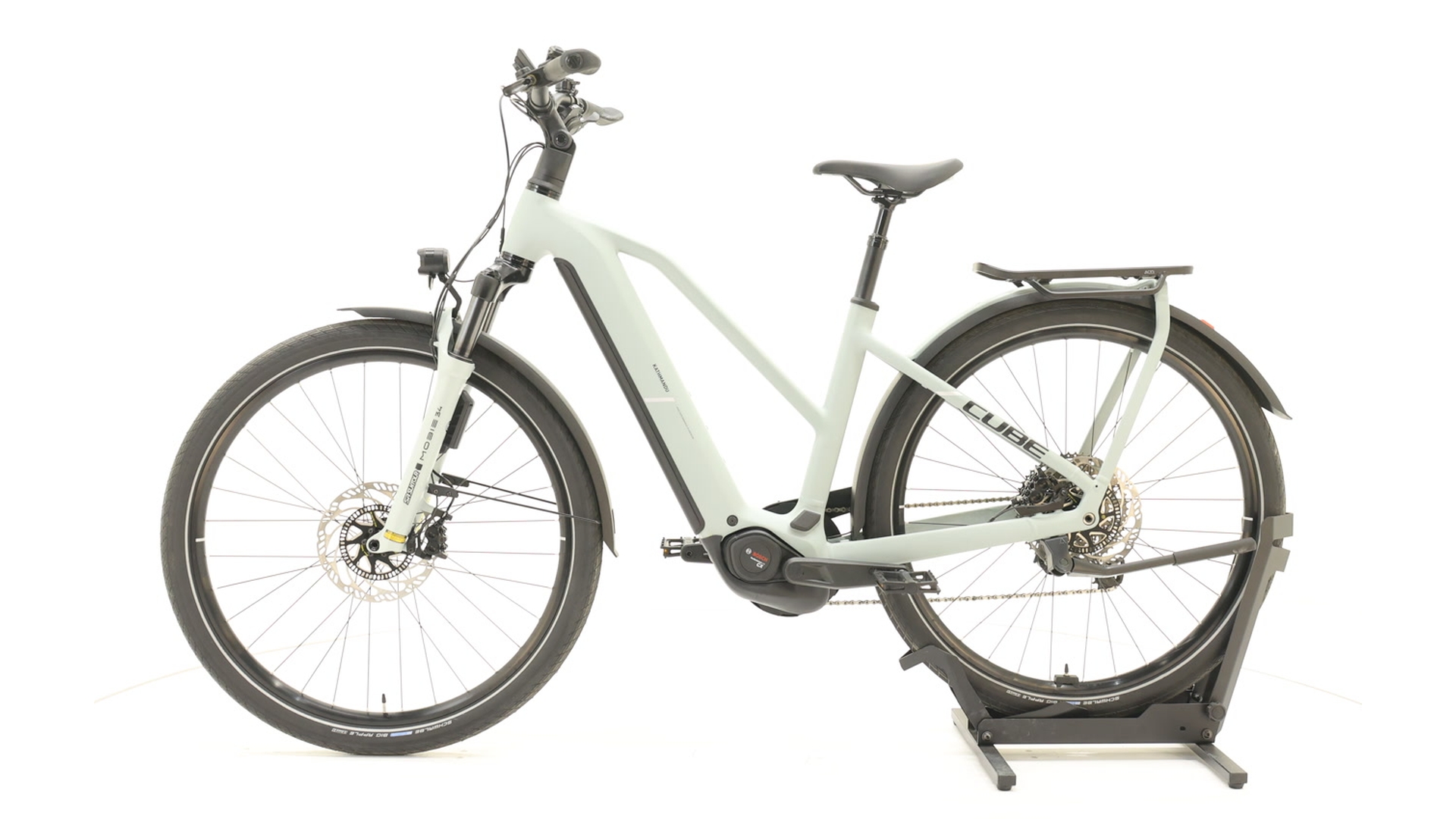

Cube Kathmandu Hybrid EX 800Wh used bike 28 inch size S
-
Available immediately, with you in 7 - 9 working days
-
Fast delivery!
-
Convenient financing with easyCredit instalment purchase
-
100,000+ satisfied customers
-
Pay only after 30 days further information
The Kathmandu Hybrid EX ABS 800 from Cube reliably keeps touring fans' backs free on all routes. How? With its powerful and super reliable Magura MT C ABS hydraulic disc brakes with anti-lock system. This gives the front wheel first-class grip in all weathers and even during very abrupt braking manoeuvres. The CX motor from Bosch delivers up to 85 Nm of torque - and therefore extra forward thrust - and is powered by an 800 Wh PowerTube battery. We have paired this set-up with an easy-to-operate Shimano Cues 11-speed gear system, which transfers the power to the rear wheel with a top gear ratio. Anyone travelling with luggage, whether on the way to the office or on a long weekend ride, will benefit from our customisable and super-stable integrated IC 3.0 luggage rack. A complete set of accessories gives this tourer the finishing touch. Your bike adventure, your riding pleasure!
Elegant, timeless design - that's the Kathmandu Hybrid from Cube. At first glance - the second glance reveals a whole host of innovations and clever details. The Bosch CX motor with its 800 Wh PowerTube battery, aesthetically and neatly integrated into the design, is just the beginning. Our Efficient Comfort Geometry works harmoniously with the 100 mm suspension fork, which optimises control, especially in difficult conditions on the road. In addition, the internal cable routing plays into the hands of the clean look of the chassis and significantly reduces maintenance work. What else? A versatile, almost indestructible UDH for easy availability of spare parts, an integrated chain guard and our stable, robust, beautifully designed integrated IC 3.0 luggage carrier, which has room for everything you need to take on an adventure tour.
This bike arrives (almost) fully assembled. All you have to do is straighten the handlebars and attach the pedals.
This is a second-hand bike with a 12-month warranty!
Condition of the bike: very good
The bike has already been ridden and has a higher mileage. Slight to normal signs of use such as minor scratches are possible. Technically flawless and fully functional.
Mileage: 140 km
| Frame | Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Fully Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube |
| Frame shape | Trapez |
| Material | Aluminium |
| Gender | Unisex |
| Weight | approx. 25.8 kg |
| permissible total weight | 135 kg |
| Colour | Hazen black |
| Fork | SR Suntour Mobie 35 EQ Air, ABS, tapered, 15x110mm, 100mm |
| Manufacturer shift group | Shimano |
| Rear derailleur | Shimano Cues RD-U6000-GS, 11-Speed |
| Number of gears | 1 x 11 |
| Circuit type | Kettenschaltung |
| Crank handle | ACID MTB Hybrid Pro |
| Cassette | Shimano Cues CS-LG400, 11-50T |
| Drive type | Kettenantrieb |
| Freewheel/coaster | Freilauf |
| Pedals included in the scope of delivery | ja |
| Rims | Cube EX25, 36H, Disc, Tubeless Ready |
| Hubs | front: Cube Engineered By Newmen, 15mm, Boost, Centrelock, rear: Cube Engineered By Newmen, 12mm, Boost, Centrelock |
| Wheel size | 28 Zoll |
| Tyres | Schwalbe Big Apple, Active, 55-622 |
| Motor manufacturer | Bosch |
| Engine | Bosch Performance CX |
| max. torque | up to 100 Nm |
| Support for | up to 25 km/h |
| Battery | Bosch 800Wh PowerTube |
| Display | Bosch Kiox 300 |
| Brakes | Magura MT C ABS, Hydr. Disc Brake (203/203) |
| Handlebars | Cube Comfort Trail Bar, 700mm |
| Seat post | Cube Suspension Seatpost HD, 31.6mm |
| Saddle | ACID Sequence Pro Plus |
| Stem | Cube Comfort Stem Pro, 31.8mm, Adjustable |
| Lighting | Rear light: ACID Mudguard Rear Light PRO-E, 12V, DC, Headlight: ACID Front Light PRO-E 60 X-Connect, 12V, DC |
| Accessories/Miscellaneous | Charger included in the scope of delivery |
Log in
Important safety information for electric bicycles
The safety information is part of the operating instructions, in which all relevant information is described.
The digital operating instructions can be accessed here www. Cube.eu/downloads.
Reading the safety information does not release you from the obligation to read and observe the operating instructions!
Failure to observe the operating instructions can lead to dangerous driving situations, falls, accidents and damage to property.
General
Disregarding the intended use can lead to the failure of components and materials with the risk of accidents and injury:
Comply with the restrictions of the specified utilisation class / bike classification
Do not exceed the permissible total weight (electric bike + rider + load + trailer if applicable)
Observe the manufacturer's specifications for transporting people and loads
Manipulation of the drive system, in particular tuning, is not permitted
Check the electric bike for possible damage before every ride, especially to the frame, fork, handlebar/stem unit, drive unit and seat post
Do not use the electric bike if any damage is found
Be aware of the increased risk of injury due to potentially high temperatures of individual components (e.g. brakes, drive unit, headlights)
Observe the manufacturer's instructions for attaching add-on parts (bags, lock, child seat, carrier systems, etc.) and for using a trailer
Observe the legal regulations applicable in the respective country for use on public roads
When transporting the electric bike, observe the instructions of the manufacturer, the legislator or the transport company
Before the journey
Before each journey, check in particular
the correct function of the brakes, steering, chassis and lights,
the tight fit of handlebars, stem, wheels, mudguards and pedals and
the tyre pressure
The tyres must be checked and adjusted in accordance with the manufacturer's instructions.
Riding behaviour
Initially familiarise yourself with the riding and braking behaviour as well as the electric assistance modes and the push assistance (if available), especially with different loads, in wet conditions and on loose surfaces
After the journey / maintenance
In the event of damage or malfunctions, the electric bike must be checked by a specialist company before further use
Have the electric bike checked and serviced regularly by a specialised company in accordance with the manufacturer's specifications in order to avoid hazards, e.g. due to wear and tear
Observe the specified torques (Nm) for the assembly of components
Only use batteries and chargers approved by the manufacturer
Observe the manufacturer's specifications for charging and using the battery, particularly with regard to the ambient temperature and location of the charging process
Only use undamaged and unmodified batteries and chargers
Modifying the add-on parts on the electric bike can affect safety and approval. Contact your specialist dealer before making any such changes.
Contact your specialist dealer if you are unable to carry out the described work on your electric bike (e.g. making adjustments) yourself, if you feel unsure or if you do not have the right tools.
Important safety information for bicycles
The safety information is part of the operating instructions, in which all relevant information is described.
The digital operating instructions can be accessed here www. Cube.eu/downloads.
Reading the safety information does not release you from the obligation to read and observe the operating instructions!
Failure to observe the operating instructions can lead to dangerous driving situations, falls, accidents and damage to property.
General
Disregarding the intended use can lead to the failure of components and materials with the risk of accidents and injury:
Comply with the restrictions of the specified utilisation class / bike classification
Do not exceed the permissible total weight (bike + rider + load + trailer if applicable)
Check the bike for possible damage before every ride, especially to the frame, fork, handlebar/stem unit and seat post
Do not use the bike if you notice any damage
Be aware of the increased risk of injury due to potentially high temperatures of individual components (e.g. brakes, headlights)
Observe the manufacturer's instructions for attaching add-on parts (bags, lock, child seat, carrier systems, etc.) and for using a trailer
Observe the legal regulations applicable in the respective country for use on public roads
When transporting the bike, observe the manufacturer's, legal or transport company's instructions
Before the journey
Before each journey, check in particular
the correct function of brakes, steering, chassis and lights,
the tight fit of handlebars, stem, wheels, mudguards and pedals and
the tyre pressure
The tyres must be checked and adjusted in accordance with the manufacturer's instructions.
Riding behaviour
Initially familiarise yourself with the riding and braking behaviour, especially with different loads, wet conditions and loose surfaces
After the ride / maintenance
In the event of damage or malfunctions, the bicycle must be checked by a specialised workshop before further use
Have the bike checked and serviced regularly by a specialist company in accordance with the manufacturer's specifications in order to avoid hazards, e.g. due to wear and tear
Observe the specified torques (Nm) for the assembly of components
Contact your specialist dealer if you are unable to carry out the described work on your bike (e.g. making adjustments) yourself, if you feel unsure or if you do not have the right tools.
Important safety information for children's bikes
The safety information is part of the operating instructions, in which all relevant information is described.
The digital operating instructions can be accessed here www. Cube.eu/downloads.
Reading the safety information does not release you from the obligation to read and observe the operating instructions!
Failure to observe the operating instructions can lead to dangerous driving situations, falls, accidents and damage to property.
General
The bicycle may only be used under the supervision of a parent or guardian
Disregarding the intended use can lead to the failure of components and materials with the risk of accidents and injury:
Comply with the restrictions of the specified utilisation class / bike classification
Do not exceed the permissible total weight (bike + rider + load + trailer if applicable)
Check the bike for possible damage before every ride, especially to the frame, fork, handlebar/stem unit and seat post
Do not use the bike if you notice any damage
Be aware of the increased risk of injury due to potentially high temperatures of individual components (e.g. brakes, headlights)
Observe the manufacturer's instructions for attaching add-on parts (bags, lock, child seat, carrier systems, etc.) and for using a trailer
Observe the legal regulations applicable in the respective country for use on public roads
When transporting the bike, observe the manufacturer's, legal or transport company's instructions
Before the journey
Before each journey, check in particular
the correct function of brakes, steering, chassis and lights,
the tight fit of handlebars, stem, wheels, mudguards and pedals and
the tyre pressure
The tyres must be checked and adjusted in accordance with the manufacturer's instructions.
Riding behaviour
Initially familiarise yourself with the riding and braking behaviour, especially with different loads, wet conditions and loose surfaces
After the ride / maintenance
In the event of damage or malfunctions, the bicycle must be checked by a specialised workshop before further use
Have the bike checked and serviced regularly by a specialist company in accordance with the manufacturer's specifications in order to avoid hazards, e.g. due to wear and tear
Observe the specified torques (Nm) for the assembly of components
Contact your specialist dealer if you are unable to carry out the described work on your bike (e.g. making adjustments) yourself, if you feel unsure or do not have the right tools
