Cube Kathmandu Hybrid Pro Performance Line CX 800Wh
-
Available immediately, with you in 7 - 9 working days
-
Fast delivery!
-
Convenient financing with easyCredit instalment purchase
-
100,000+ satisfied customers
-
Pay only after 30 days further information

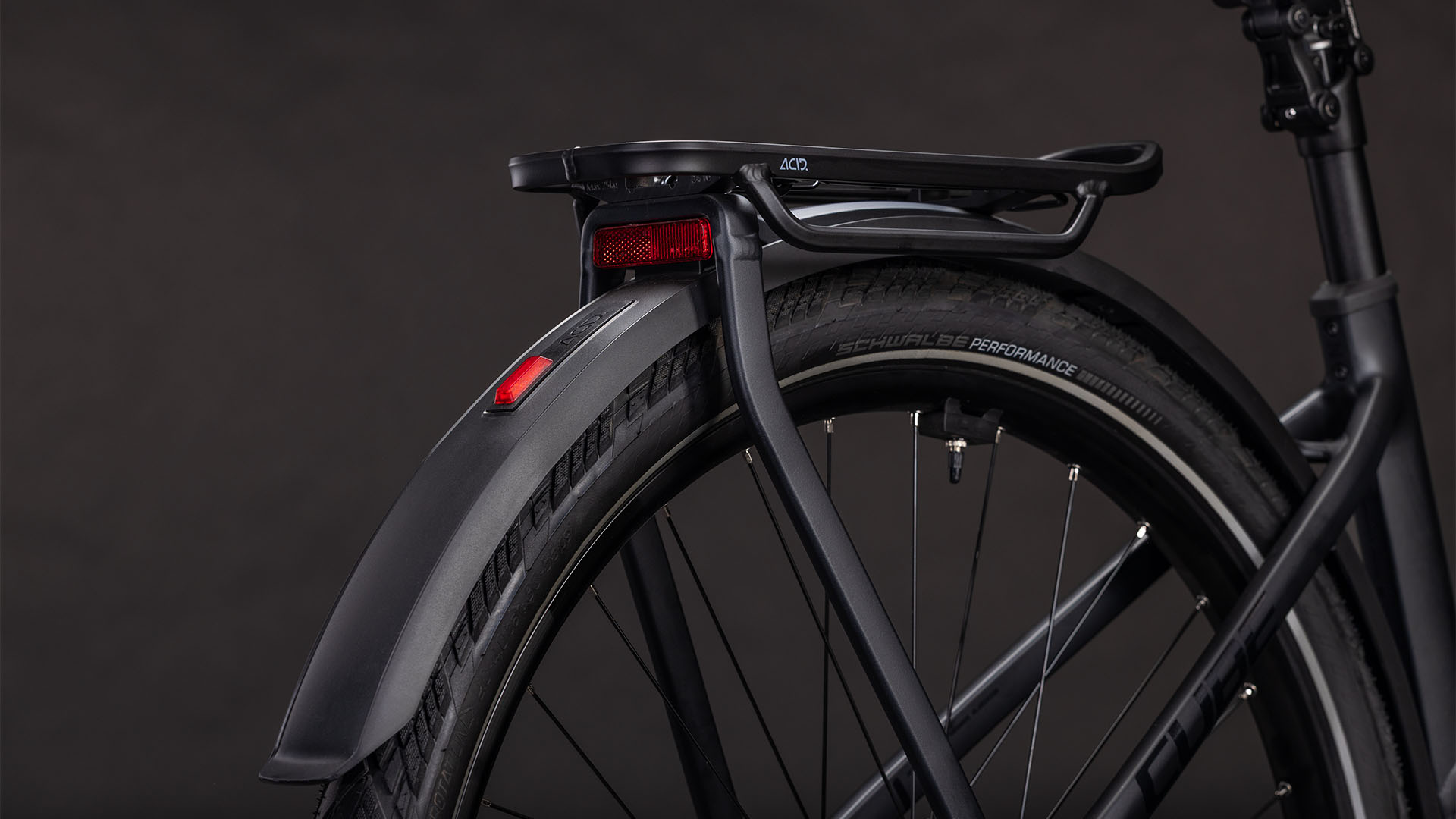

Our Kathmandu Hybrid Pro stands for the ultimate freedom on two wheels - and therefore has a powerful Bosch motor on board! It also has our super-elegant, stable integrated IC 3.0 pannier rack, which has room for everything you need on tour. Its Bosch CX drive and 800 Wh PowerTube battery are so neatly and aesthetically integrated into the frame design that they are barely noticeable. What is noticeable, however, is the powerful support. The wide-ranging Shimano XT 12-speed drivetrain shifts precisely from gear to gear. The powerful hydraulic 4-piston disc brakes from Shimano work just as precisely, reliably slowing and stopping the bike. The whole thing is rounded off by an extensive range of accessories, including an extremely comfortable parallelogram seat post. So, where do you want to go on your next adventure?
The low step-through frame of the Cube Kathmandu Hybrid lives up to its name, as it makes getting on and off the bike super easy and the adventure can start right away! But there's more, for example the CX motor from Bosch with its 800 Wh PowerTube battery, which is aesthetically and cleanly integrated into the design, and our Efficient Comfort Geometry, which works harmoniously with the 100 mm suspension fork to optimise control, especially in difficult conditions. In addition, the internal cable routing emphasises the clean look of the chassis. What else? A versatile, almost indestructible UDH for easy availability of spare parts, an integrated chain guard and our stable, robust, beautifully designed integrated IC 3.0 pannier rack, which has room for everything you need to take with you on a tour of discovery.
This bike arrives (almost) fully assembled. All you have to do is straighten the handlebars and attach the pedals.
| Frame | Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, UDH™, Fully Integrated Battery, IC 3.0, Advanced Internal Cable Routing, Integrated Seatclamp |
| Frame shape | Tiefeinstieg |
| Material | Aluminium |
| Gender | Unisex |
| Weight | approx. 29.9 kg |
| permissible total weight | 135 kg |

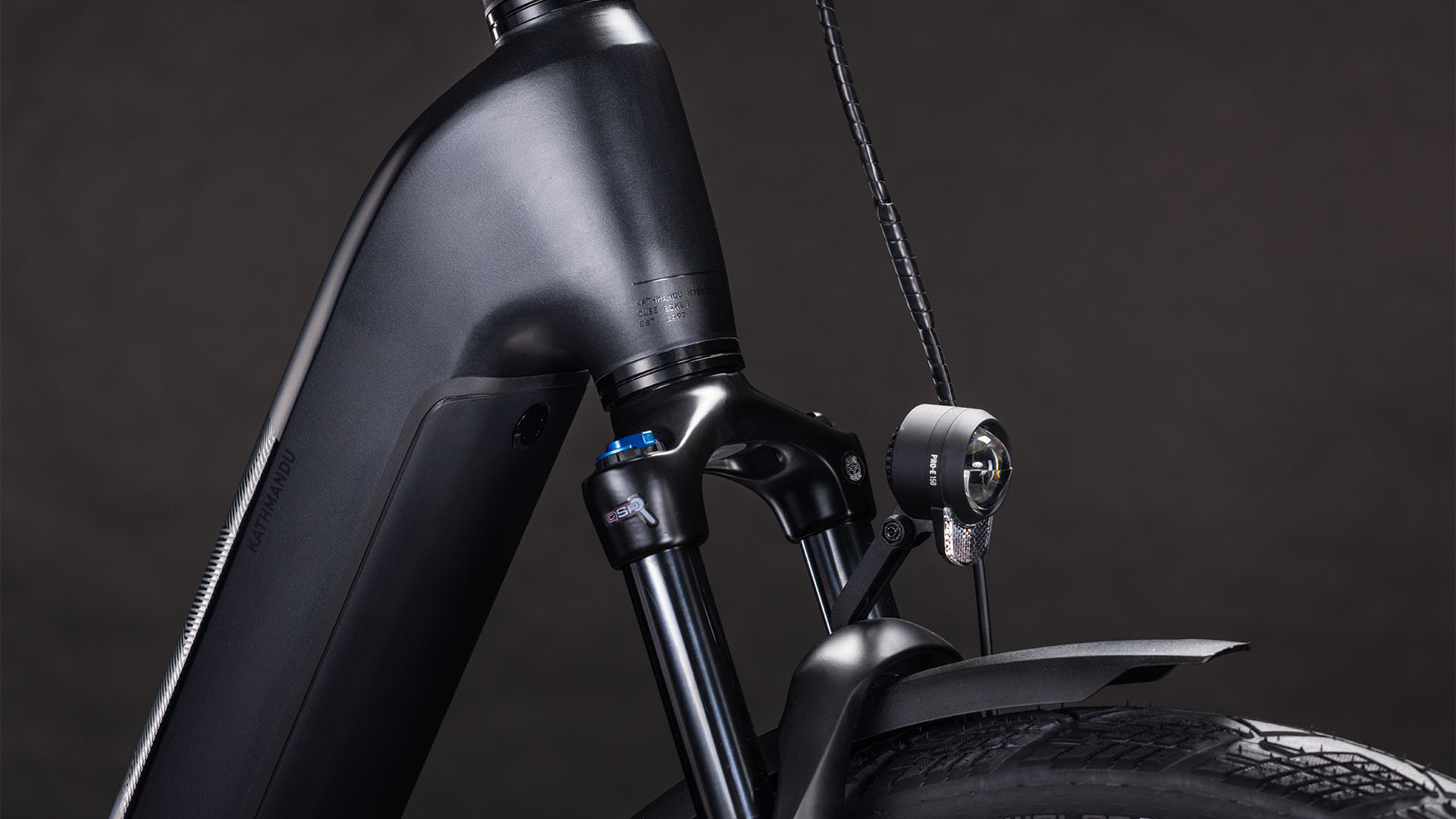

| Fork | SR Suntour NX1-32 LO Air, tapered, 15x110mm, 100mm |
| Manufacturer shift group | Shimano |
| Rear derailleur | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
| Number of gears | 1 x 12 |
| Circuit type | Kettenschaltung |
| Crank handle | ACID MTB Hybrid Pro, 40T |
| Cassette | Shimano Deore CS-M6100, 10-51T |
| Drive type | Kettenantrieb |
| Freewheel/coaster | Freilauf |
| Pedals included in the scope of delivery | ja |
| Impellers | ACID SLX 25, 32/32 spokes, 15x110mm/12x148mm, tubeless ready |
| Wheel size | 28 Zoll |
| Tyres | Schwalbe Marathon Efficiency, PerfL, 55-622 |
| Motor manufacturer | Bosch |
| Engine | Bosch Performance CX |
| max. torque | max. 100Nm |
| Reach | up to 150 km |
| Support for | up to 25 km/h |

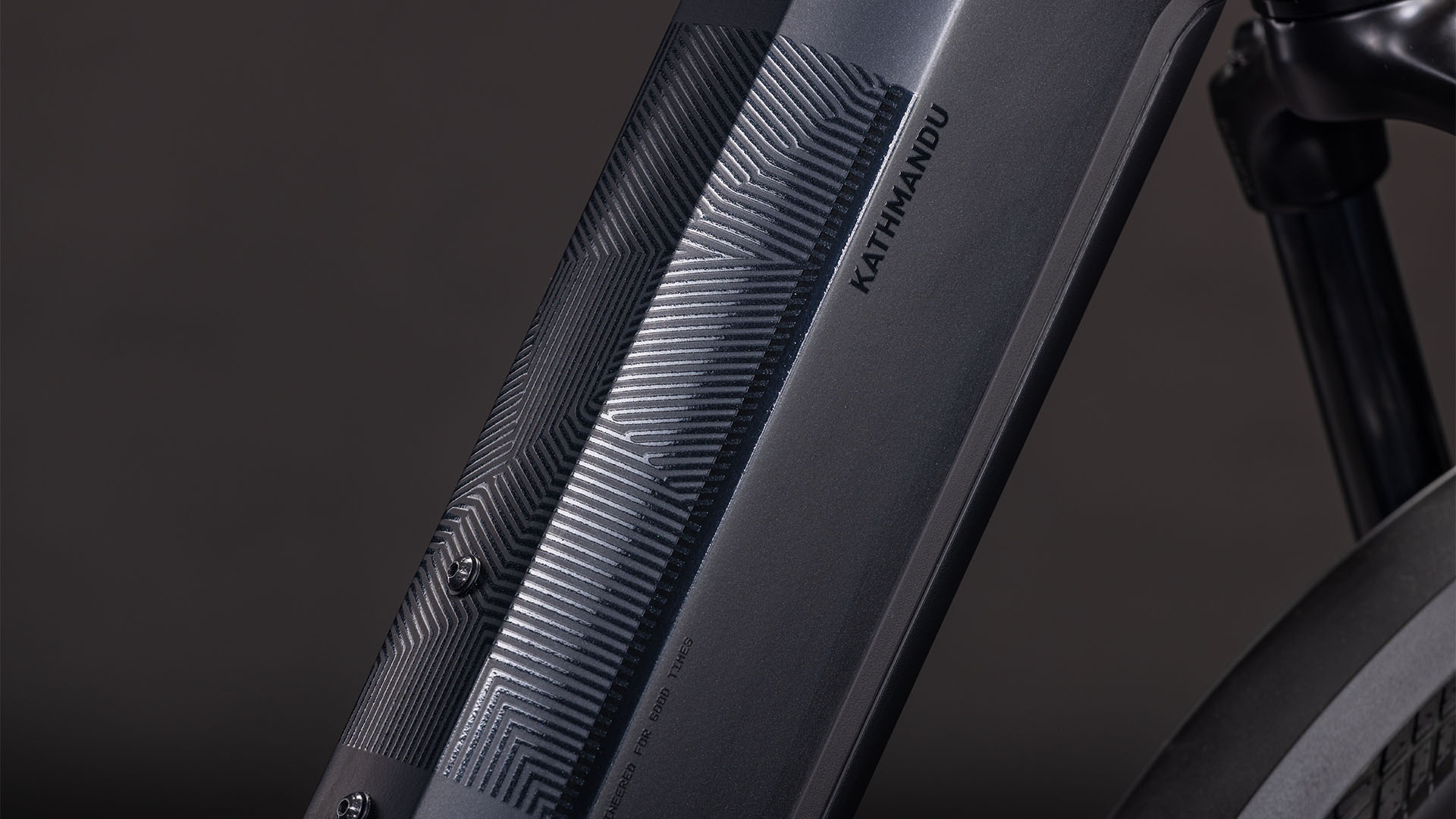

| Battery | Bosch 800Wh PowerTube |

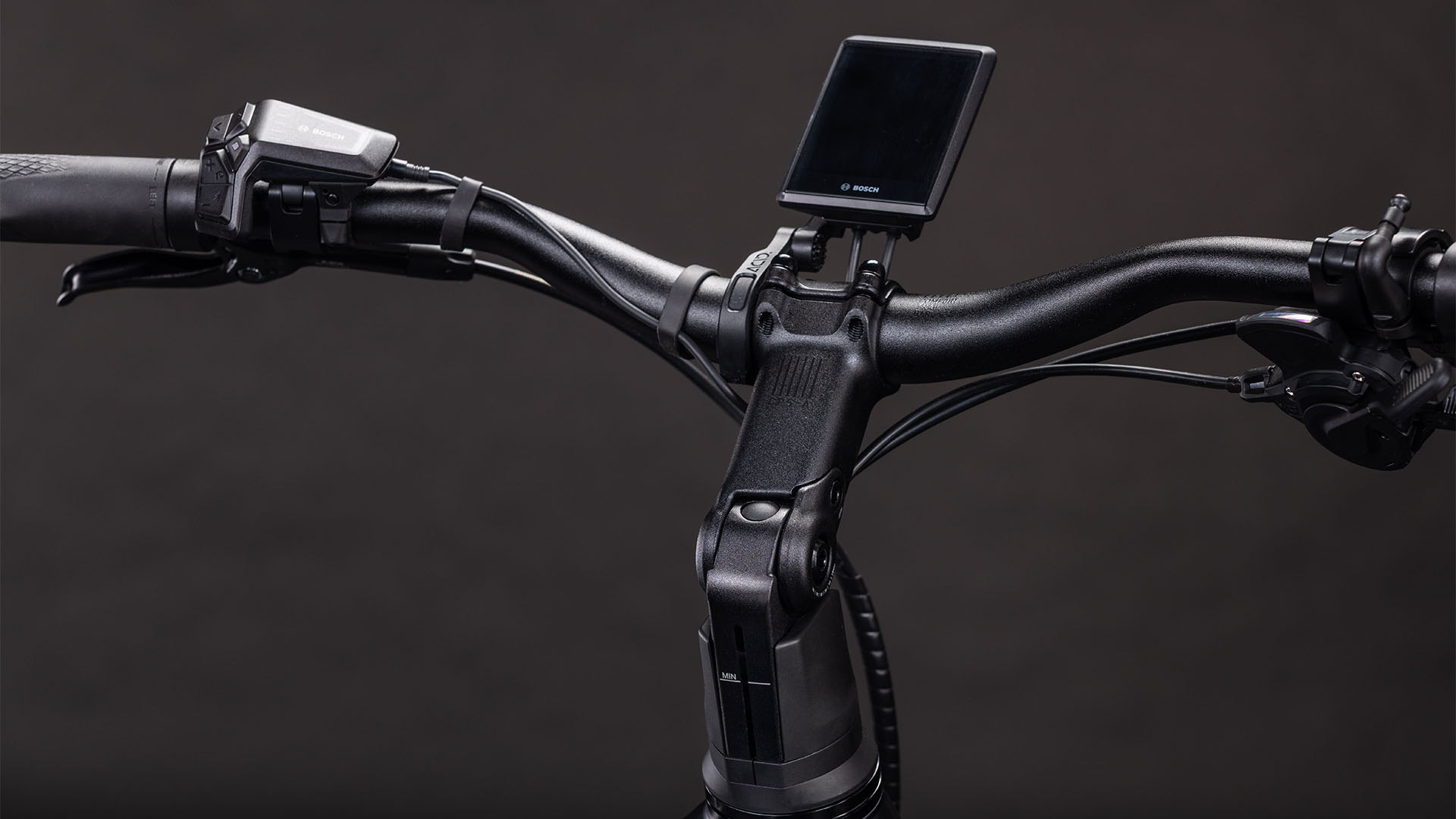

| Display | Bosch Kiox 500 |
| Brakes | Shimano BR-MT420, Hydr. Disc Brake (180/180) |
| Handlebars | Cube Comfort Trail Bar, 700mm |
| Seat post | SR Suntour NVX, 31.6mm |

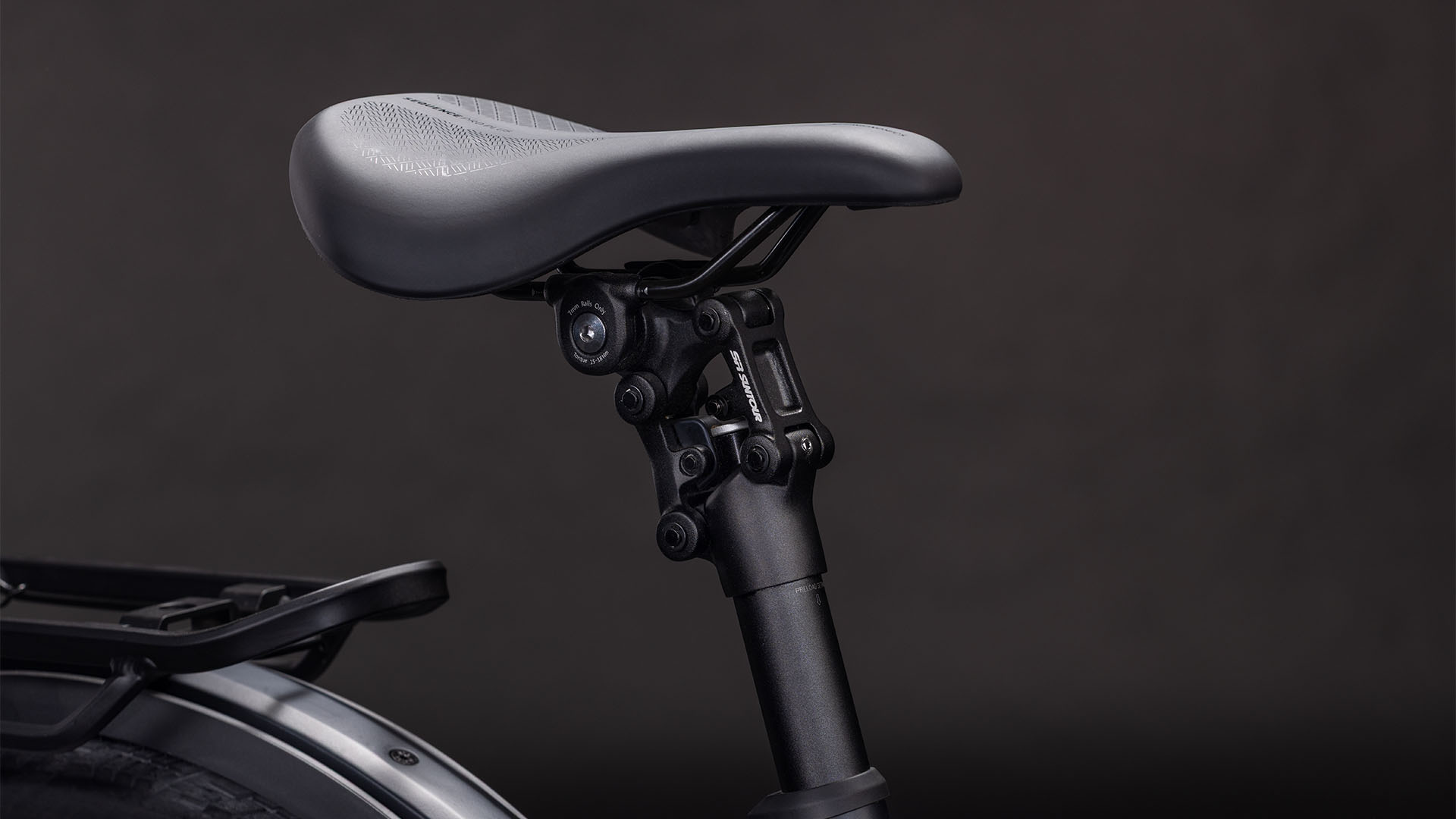

| Saddle | ACID Sequence 180 |
| Stem | Cube Comfort Stem Pro, 31.8mm, Adjustable |
| Lighting | Headlight: ACID Front Light PRO-E 150 X-Connect, 12V, DC, Rear light: ACID Mudguard Rear Light PRO-E, 12V, DC |
| Accessories/Miscellaneous | Charger included in the scope of delivery |
| Rims | CUBE EX25, 36H, Disc, Tubeless Ready |
| Hubs | front: CUBE Engineered By Newmen, 15mm, Boost, Centrelock, rear: Shimano FH-MT400-B, 12mm, Boost, Centrelock |
Log in
Important safety information for electric bicycles
The safety information is part of the operating instructions, in which all relevant information is described.
The digital operating instructions can be accessed here www. Cube.eu/downloads.
Reading the safety information does not release you from the obligation to read and observe the operating instructions!
Failure to observe the operating instructions can lead to dangerous driving situations, falls, accidents and damage to property.
General
Disregarding the intended use can lead to the failure of components and materials with the risk of accidents and injury:
Comply with the restrictions of the specified utilisation class / bike classification
Do not exceed the permissible total weight (electric bike + rider + load + trailer if applicable)
Observe the manufacturer's specifications for transporting people and loads
Manipulation of the drive system, in particular tuning, is not permitted
Check the electric bike for possible damage before every ride, especially to the frame, fork, handlebar/stem unit, drive unit and seat post
Do not use the electric bike if any damage is found
Be aware of the increased risk of injury due to potentially high temperatures of individual components (e.g. brakes, drive unit, headlights)
Observe the manufacturer's instructions for attaching add-on parts (bags, lock, child seat, carrier systems, etc.) and for using a trailer
Observe the legal regulations applicable in the respective country for use on public roads
When transporting the electric bike, observe the instructions of the manufacturer, the legislator or the transport company
Before the journey
Before each journey, check in particular
the correct function of the brakes, steering, chassis and lights,
the tight fit of handlebars, stem, wheels, mudguards and pedals and
the tyre pressure
The tyres must be checked and adjusted in accordance with the manufacturer's instructions.
Riding behaviour
Initially familiarise yourself with the riding and braking behaviour as well as the electric assistance modes and the push assistance (if available), especially with different loads, in wet conditions and on loose surfaces
After the journey / maintenance
In the event of damage or malfunctions, the electric bike must be checked by a specialist company before further use
Have the electric bike checked and serviced regularly by a specialised company in accordance with the manufacturer's specifications in order to avoid hazards, e.g. due to wear and tear
Observe the specified torques (Nm) for the assembly of components
Only use batteries and chargers approved by the manufacturer
Observe the manufacturer's specifications for charging and using the battery, particularly with regard to the ambient temperature and location of the charging process
Only use undamaged and unmodified batteries and chargers
Modifying the add-on parts on the electric bike can affect safety and approval. Contact your specialist dealer before making any such changes.
Contact your specialist dealer if you are unable to carry out the described work on your electric bike (e.g. making adjustments) yourself, if you feel unsure or if you do not have the right tools.
Important safety information for bicycles
The safety information is part of the operating instructions, in which all relevant information is described.
The digital operating instructions can be accessed here www. Cube.eu/downloads.
Reading the safety information does not release you from the obligation to read and observe the operating instructions!
Failure to observe the operating instructions can lead to dangerous driving situations, falls, accidents and damage to property.
General
Disregarding the intended use can lead to the failure of components and materials with the risk of accidents and injury:
Comply with the restrictions of the specified utilisation class / bike classification
Do not exceed the permissible total weight (bike + rider + load + trailer if applicable)
Check the bike for possible damage before every ride, especially to the frame, fork, handlebar/stem unit and seat post
Do not use the bike if you notice any damage
Be aware of the increased risk of injury due to potentially high temperatures of individual components (e.g. brakes, headlights)
Observe the manufacturer's instructions for attaching accessories (bags, lock, child seat, carrier systems, etc.) and for using a trailer
Observe the legal regulations applicable in the respective country for use on public roads
When transporting the bike, observe the manufacturer's, legal or transport company's instructions
Before the journey
Before each journey, check in particular
the correct function of brakes, steering, chassis and lights,
the tight fit of handlebars, stem, wheels, mudguards and pedals and
the tyre pressure
The tyres must be checked and adjusted in accordance with the manufacturer's instructions.
Riding behaviour
Initially familiarise yourself with the riding and braking behaviour, especially with different loads, wet conditions and loose surfaces
After the ride / maintenance
In the event of damage or malfunctions, the bicycle must be checked by a specialised workshop before further use
Have the bike checked and serviced regularly by a specialist company in accordance with the manufacturer's specifications in order to avoid hazards, e.g. due to wear and tear
Observe the specified torques (Nm) for the assembly of components
Contact your specialist dealer if you are unable to carry out the described work on your bike (e.g. making adjustments) yourself, if you feel unsure or if you do not have the right tools.
Important safety information for children's bikes
The safety information is part of the operating instructions, in which all relevant information is described.
The digital operating instructions can be accessed here www. Cube.eu/downloads.
Reading the safety information does not release you from the obligation to read and observe the operating instructions!
Failure to observe the operating instructions can lead to dangerous driving situations, falls, accidents and damage to property.
General
The bicycle may only be used under the supervision of a parent or guardian
Disregarding the intended use can lead to the failure of components and materials with the risk of accidents and injury:
Comply with the restrictions of the specified utilisation class / bike classification
Do not exceed the permissible total weight (bike + rider + load + trailer if applicable)
Check the bike for possible damage before every ride, especially to the frame, fork, handlebar/stem unit and seat post
Do not use the bike if you notice any damage
Be aware of the increased risk of injury due to potentially high temperatures of individual components (e.g. brakes, headlights)
Observe the manufacturer's instructions for attaching add-on parts (bags, lock, child seat, carrier systems, etc.) and for using a trailer
Observe the legal regulations applicable in the respective country for use on public roads
When transporting the bike, observe the manufacturer's, legal or transport company's instructions
Before the journey
Before each journey, check in particular
the correct function of brakes, steering, chassis and lights,
the tight fit of handlebars, stem, wheels, mudguards and pedals and
the tyre pressure
The tyres must be checked and adjusted in accordance with the manufacturer's instructions.
Riding behaviour
Initially familiarise yourself with the riding and braking behaviour, especially with different loads, wet conditions and loose surfaces
After the ride / maintenance
In the event of damage or malfunctions, the bicycle must be checked by a specialised workshop before further use
Have the bike checked and serviced regularly by a specialised company in accordance with the manufacturer's specifications in order to avoid hazards, e.g. due to wear and tear
Observe the specified torques (Nm) for the assembly of components
Contact your specialist dealer if you are unable to carry out the described work on your bike (e.g. making adjustments) yourself, if you feel unsure or do not have the right tools
