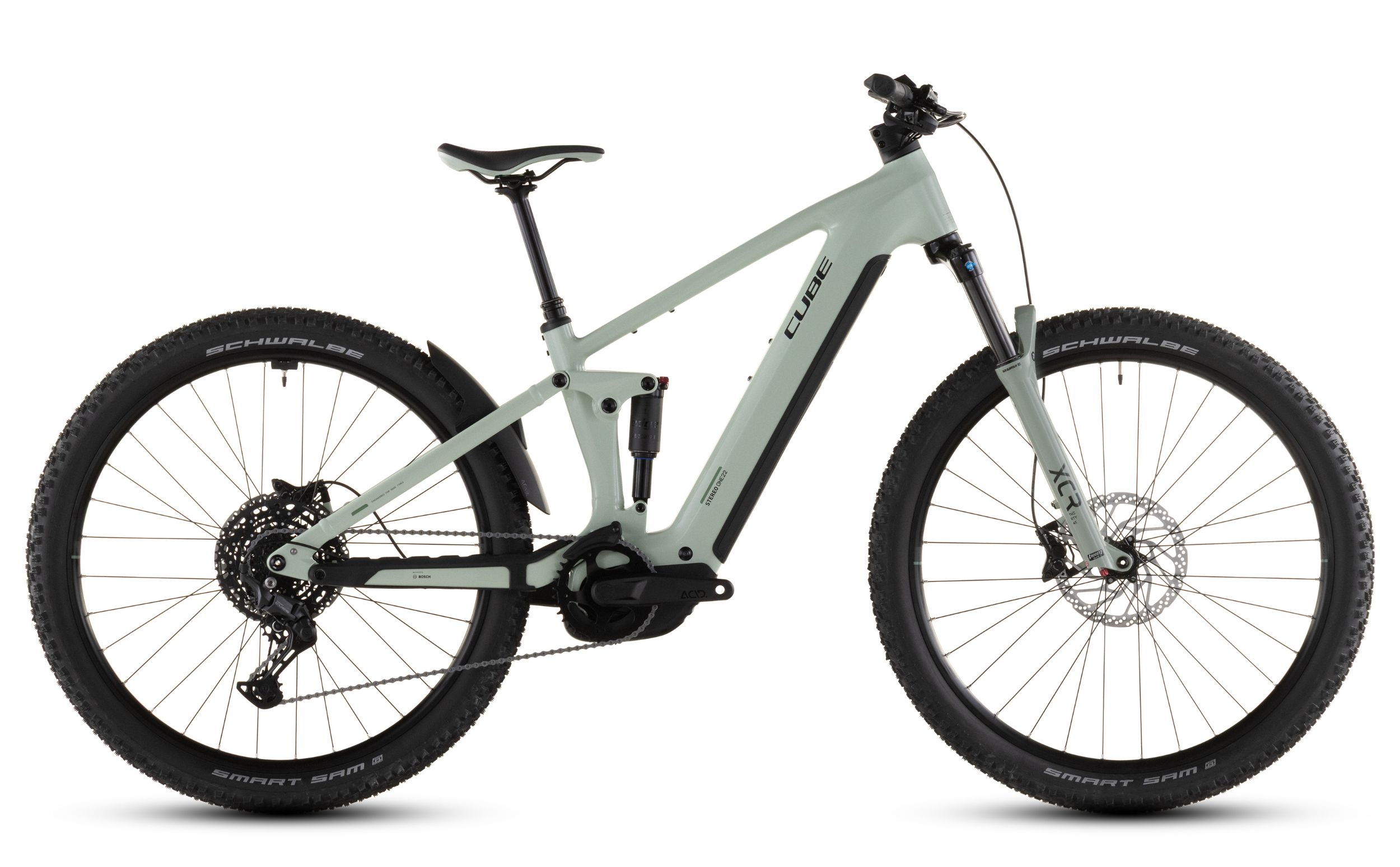

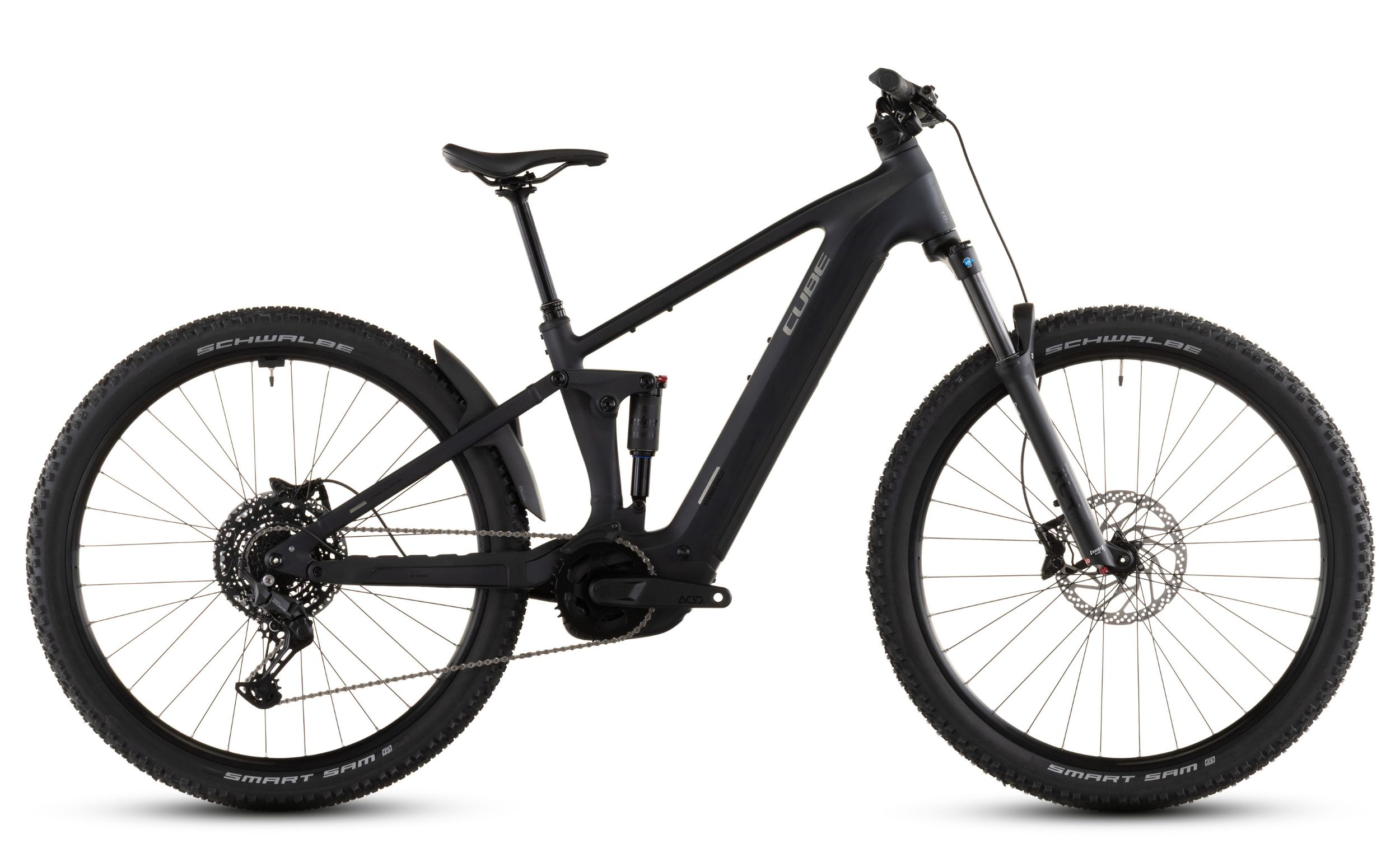

Cube Stereo Hybrid ONE22 Pro 27.5 inch 800 Wh
-
Available immediately, with you in 7 - 9 working days
-
Fast delivery!
-
Convenient financing with easyCredit instalment purchase
-
100,000+ satisfied customers
-
Pay only after 30 days further information
The Stereo Hybrid ONE22 Pro 800 performs superbly on any terrain - thanks in part to a powerful Bosch CX drive with Purion 200 display and 800 Wh battery for uncompromising support, even on many kilometres of trail. The easy-to-operate Shimano Cues 10-speed gearstick brings the propulsion to the ground in a well-dosed manner. The air suspension fork and the matching Suntour shock work efficiently with our proven Cube kinematics, so this off-roader is not only super comfortable to ride, but also offers excellent traction. the powerful hydraulic Shimano disc brakes and grippy Schwalbe 2.6-inch tyres provide first-class speed control and a safe riding experience. Time for a long trip off-road, right?

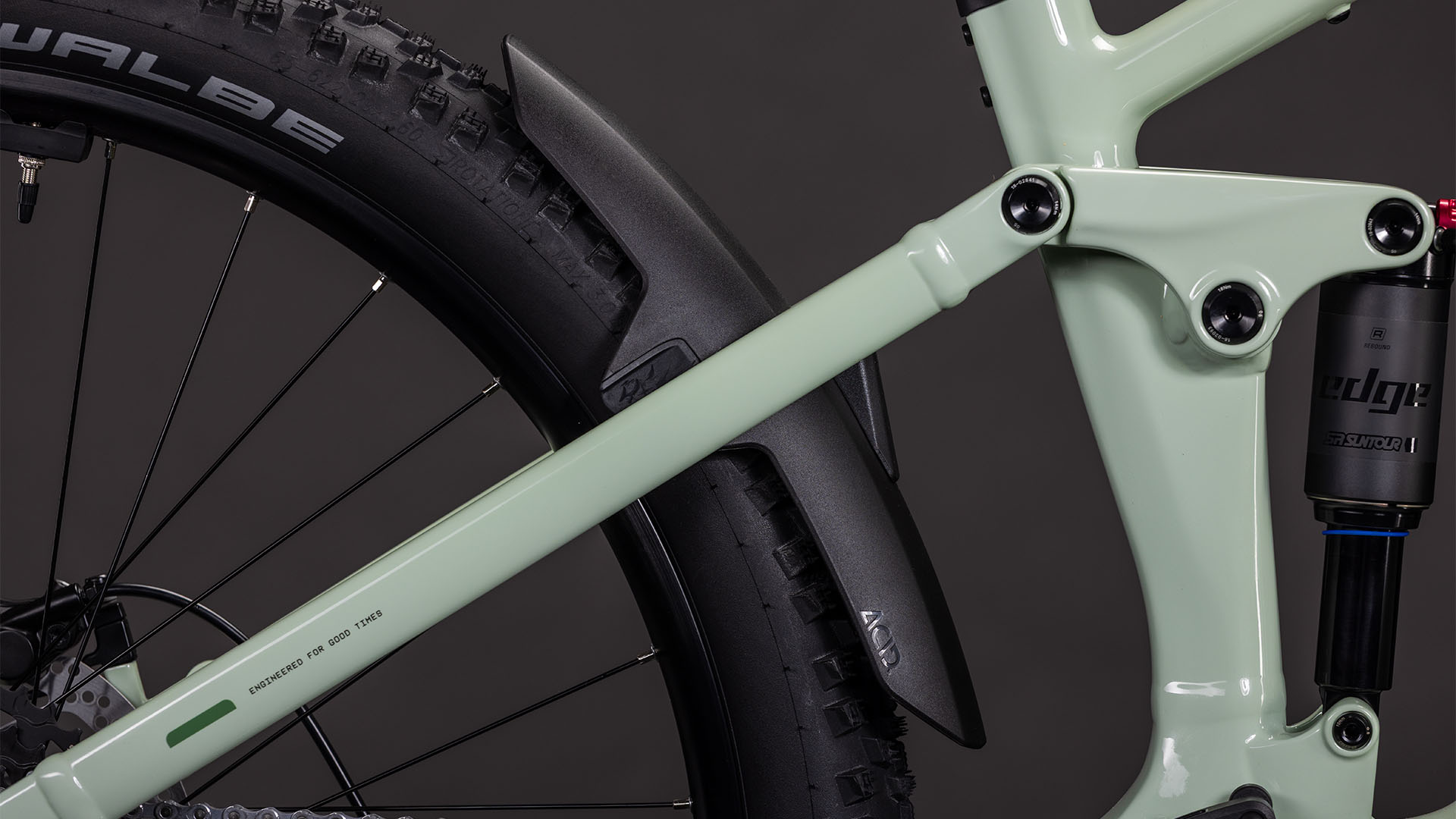

In this chassis, a powerful Bosch motor meets the proven kinematics of Cube, the result: the ultimate off-road pro, in which the robust chassis works efficiently with the 120 mm suspension fork (including mounting points for mudguards). This not only guarantees maximum comfort, but also top control. The powerful Bosch CX drive is powered by an 800 Wh battery, which is particularly useful on long distances and long trails. On top of this, we have - thanks to our love of detail in frame construction - installed a UDH derailleur hanger and a direct mount chain guide and routed the cables inside the frame. Clever: Thanks to our size split system, everyone can find the perfect fit for themselves and their requirements.
This bike arrives (almost) fully assembled. All you have to do is straighten the handlebars and attach the pedals.

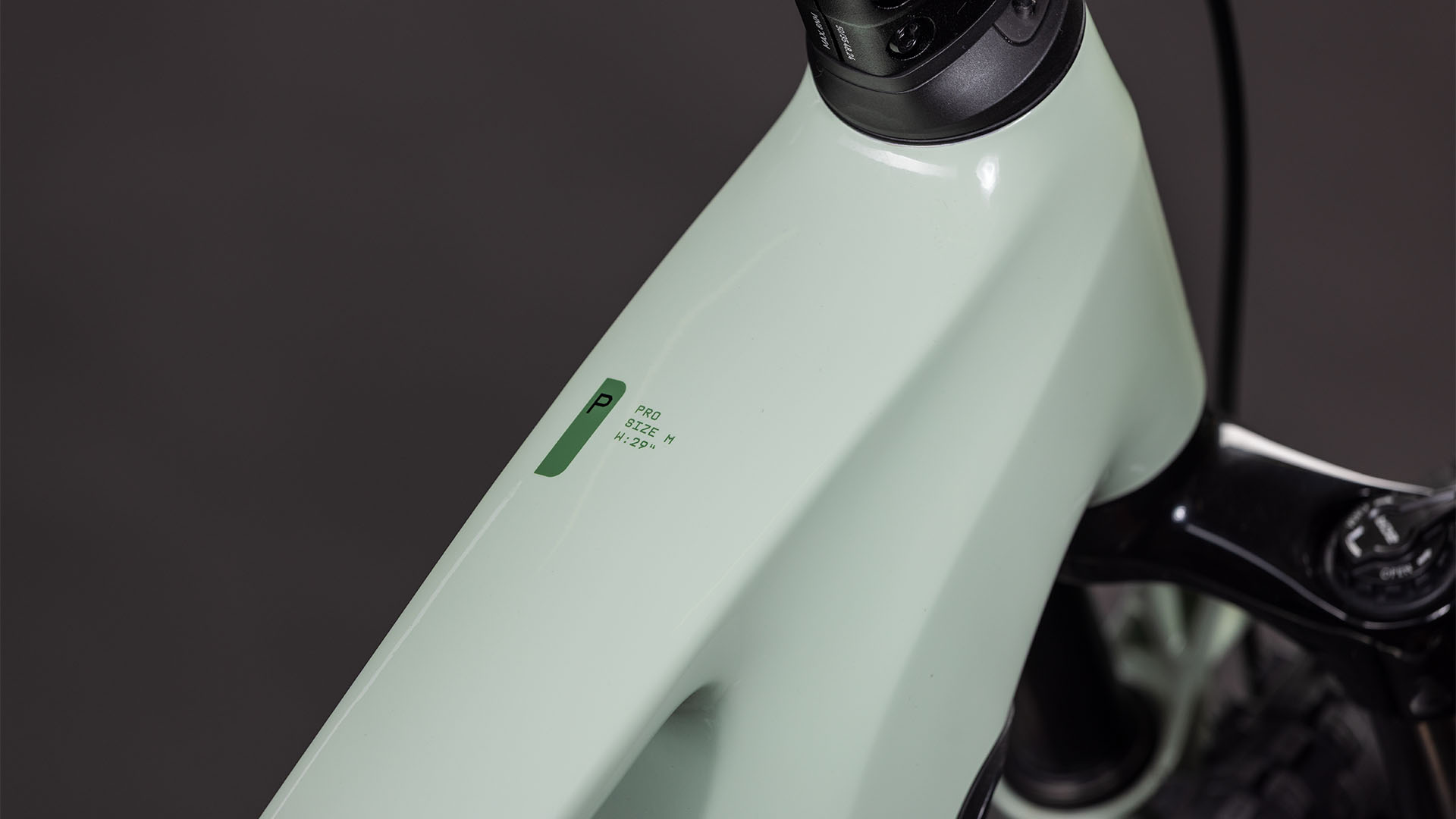

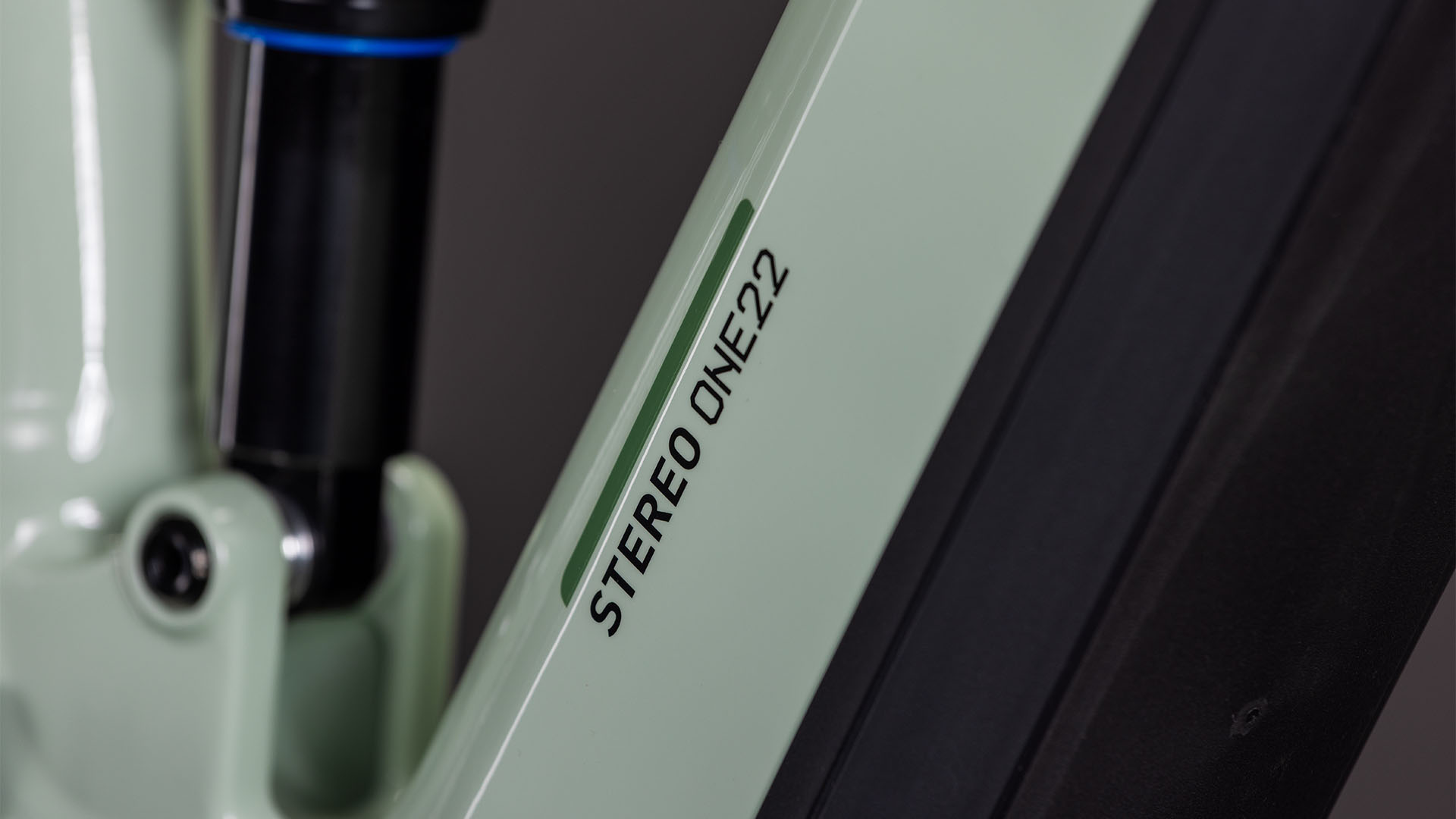

| Frame | Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points, Integrated Seatclamp |
| Frame shape | Mountainbike |
| Material | Aluminium |
| Gender | Unisex |
| Weight | approx. 26.7 kg |
| permissible total weight | 140 kg |

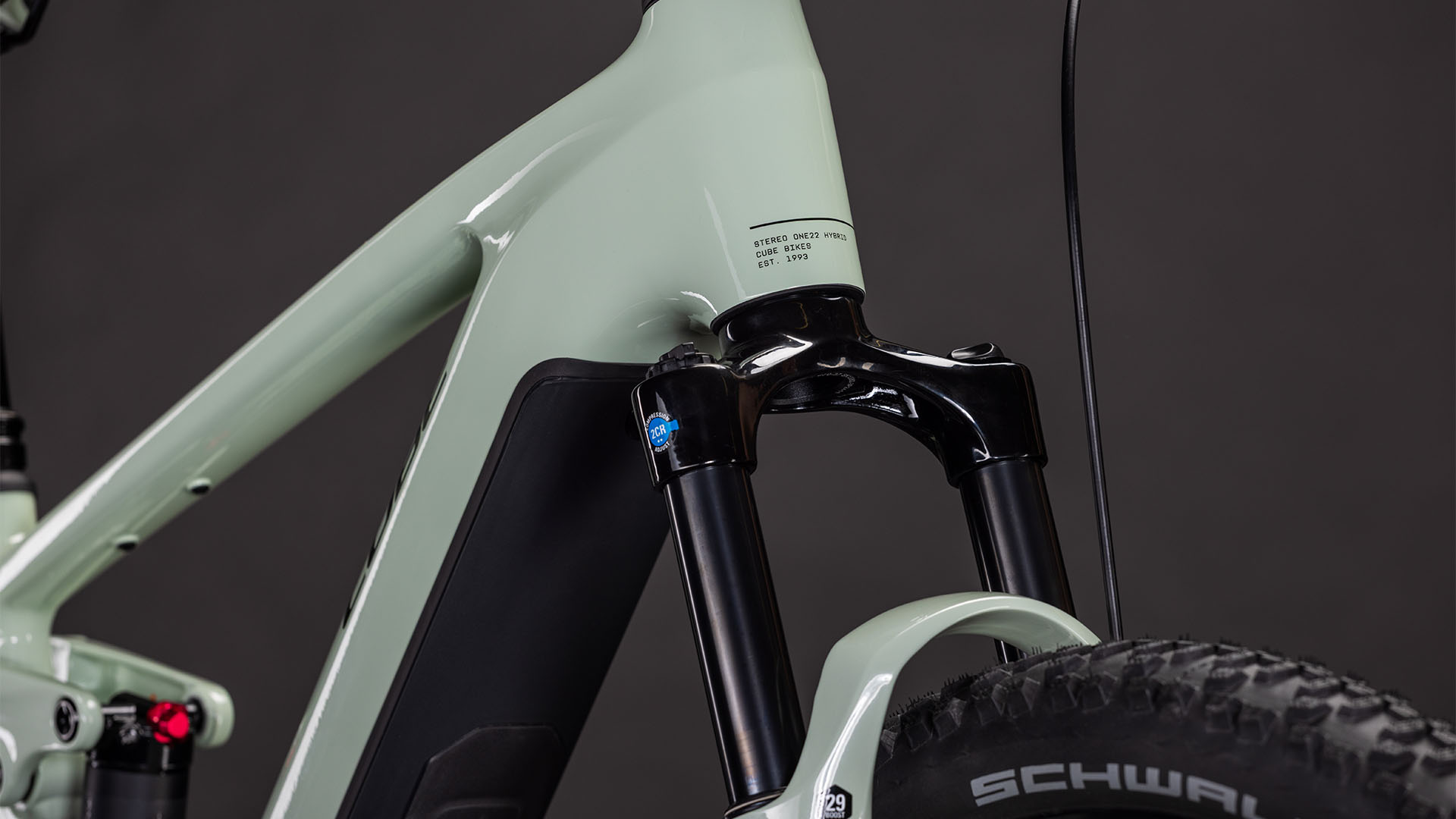

| Fork | SR Suntour XCR34X 2CR Air, tapered, 15x110mm, 120mm |

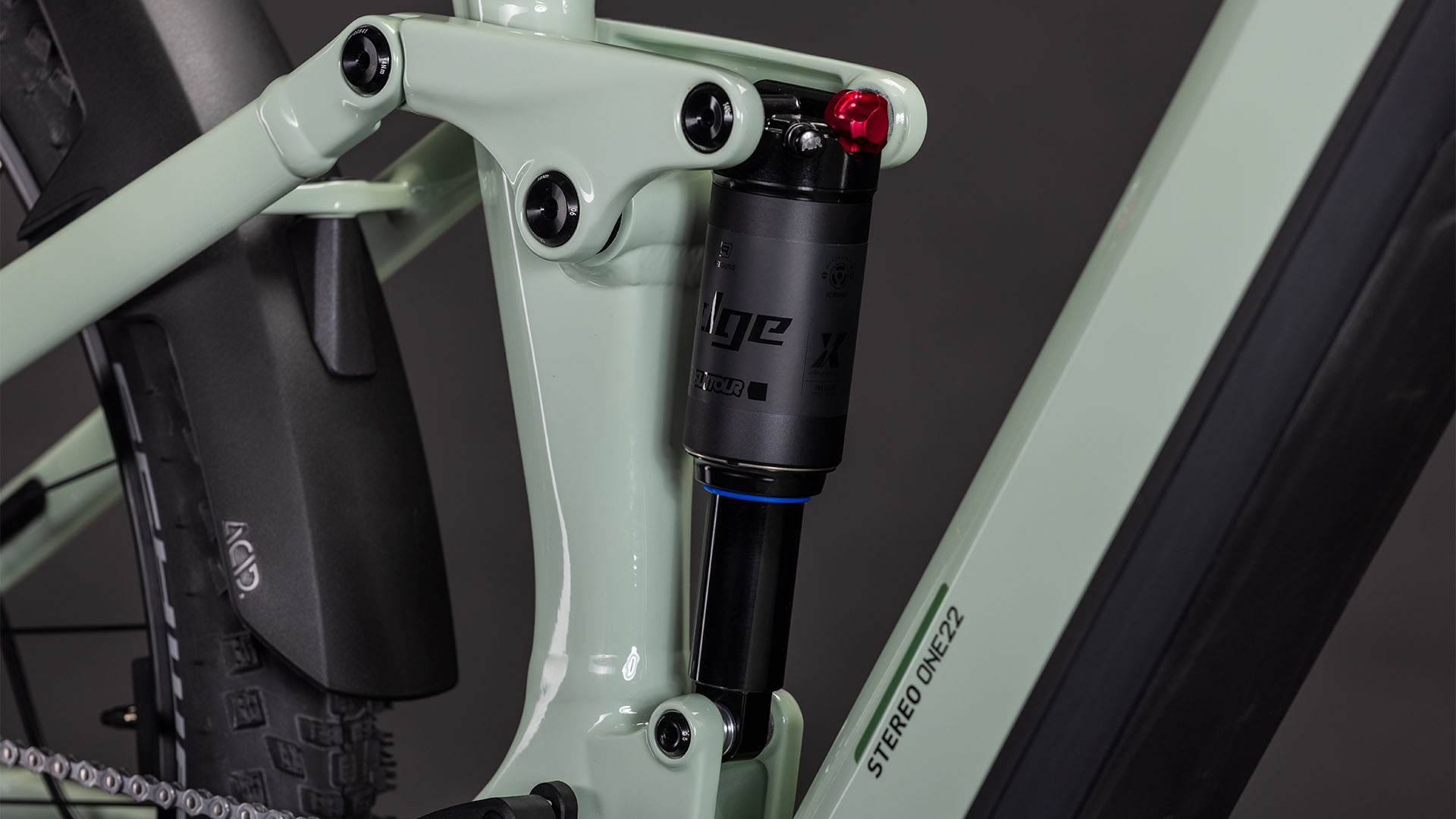

| Damper | SR Suntour EdgeX R 185x52.5mm, Rebound Adjust, Trunnion Mount |
| Manufacturer shift group | Shimano |
| Rear derailleur | Shimano Cues RD-U6000-GS, 10-Speed |
| Number of gears | 1 x 10 |
| Circuit type | Kettenschaltung |

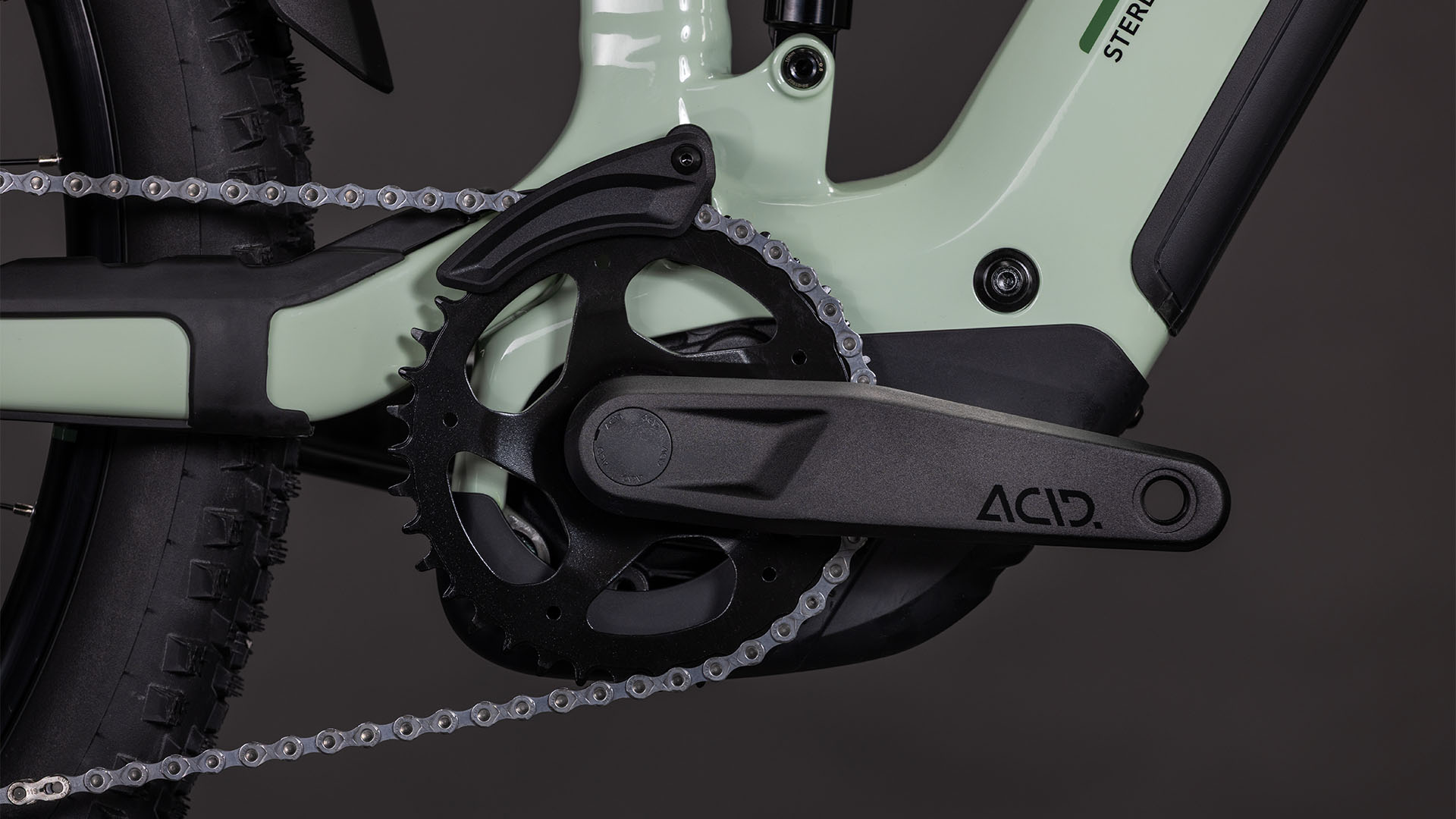

| Crank handle | ACID MTB Hybrid Pro, 38T |
| Cassette | Shimano Cues CS-LG300, 11-48T |
| Drive type | Kettenantrieb |
| Freewheel/coaster | Freilauf |
| Pedals included in the scope of delivery | ja |
| Impellers | ACID PRO 30, 32/32 spokes, 15x110mm/12x148mm, tubeless ready |
| Wheel size | 27,5 Zoll |
| Tyres | Schwalbe Smart Sam, Active, 2.6 |
| Motor manufacturer | Bosch |
| Engine | Performance Line CX |
| max. torque | 85 Nm |
| Reach | up to 150 km |
| Support for | up to 25 km/h |
| Battery | Bosch 800Wh PowerTube |
| Display | Bosch Purion 200 |
| Brakes | Shimano BR-MT420, Hydr. Disc Brake (203/203) |
| Handlebars | Cube Rise Trail Bar 35 |
| Seat post | Cube Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm |
| Saddle | ACID Venec EMTB Plus 145 |
| Stem | Cube Performance Stem E-MTB 35, FPI-Link |
| Accessories/Miscellaneous | Charger included in the scope of delivery |
| Rims | CUBE EX30, 32H, Disc, Tubeless Ready |
| Hubs | front: CUBE Engineered By Newmen, 15mm, Boost, 6-Bolt, rear: CUBE Engineered By Newmen, 12mm, Boost, 6-Bolt |
Log in
Important safety information for electric bicycles
The safety information is part of the operating instructions, in which all relevant information is described.
The digital operating instructions can be accessed here www. Cube.eu/downloads.
Reading the safety information does not release you from the obligation to read and observe the operating instructions!
Failure to observe the operating instructions can lead to dangerous driving situations, falls, accidents and damage to property.
General
Disregarding the intended use can lead to the failure of components and materials with the risk of accidents and injury:
Comply with the restrictions of the specified utilisation class / bike classification
Do not exceed the permissible total weight (electric bike + rider + load + trailer if applicable)
Observe the manufacturer's specifications for transporting people and loads
Manipulation of the drive system, in particular tuning, is not permitted
Check the electric bike for possible damage before every ride, especially to the frame, fork, handlebar/stem unit, drive unit and seat post
Do not use the electric bike if any damage is found
Be aware of the increased risk of injury due to potentially high temperatures of individual components (e.g. brakes, drive unit, headlights)
Observe the manufacturer's instructions for attaching add-on parts (bags, lock, child seat, carrier systems, etc.) and for using a trailer
Observe the legal regulations applicable in the respective country for use on public roads
When transporting the electric bike, observe the instructions of the manufacturer, the legislator or the transport company
Before the journey
Before each journey, check in particular
the correct function of the brakes, steering, chassis and lights,
the tight fit of handlebars, stem, wheels, mudguards and pedals and
the tyre pressure
The tyres must be checked and adjusted in accordance with the manufacturer's instructions.
Riding behaviour
Initially familiarise yourself with the riding and braking behaviour as well as the electric assistance modes and the push assistance (if available), especially with different loads, in wet conditions and on loose surfaces
After the journey / maintenance
In the event of damage or malfunctions, the electric bike must be checked by a specialist company before further use
Have the electric bike checked and serviced regularly by a specialised company in accordance with the manufacturer's specifications in order to avoid hazards, e.g. due to wear and tear
Observe the specified torques (Nm) for the assembly of components
Only use batteries and chargers approved by the manufacturer
Observe the manufacturer's specifications for charging and using the battery, particularly with regard to the ambient temperature and location of the charging process
Only use undamaged and unmodified batteries and chargers
Modifying the add-on parts on the electric bike can affect safety and approval. Contact your specialist dealer before making any such changes.
Contact your specialist dealer if you are unable to carry out the described work on your electric bike (e.g. making adjustments) yourself, if you feel unsure or if you do not have the right tools.
Important safety information for bicycles
The safety information is part of the operating instructions, in which all relevant information is described.
The digital operating instructions can be accessed here www. Cube.eu/downloads.
Reading the safety information does not release you from the obligation to read and observe the operating instructions!
Failure to observe the operating instructions can lead to dangerous driving situations, falls, accidents and damage to property.
General
Disregarding the intended use can lead to the failure of components and materials with the risk of accidents and injury:
Comply with the restrictions of the specified utilisation class / bike classification
Do not exceed the permissible total weight (bike + rider + load + trailer if applicable)
Check the bike for possible damage before every ride, especially to the frame, fork, handlebar/stem unit and seat post
Do not use the bike if any damage is found
Be aware of the increased risk of injury due to potentially high temperatures of individual components (e.g. brakes, headlights)
Observe the manufacturer's instructions for attaching accessories (bags, lock, child seat, carrier systems, etc.) and for using a trailer
Observe the legal regulations applicable in the respective country for use on public roads
When transporting the bike, observe the manufacturer's, legal or transport company's instructions
Before the journey
Before each journey, check in particular
the correct function of brakes, steering, chassis and lights,
the tight fit of handlebars, stem, wheels, mudguards and pedals and
the tyre pressure
The tyres must be checked and adjusted in accordance with the manufacturer's instructions.
Riding behaviour
Initially familiarise yourself with the riding and braking behaviour, especially with different loads, wet conditions and loose surfaces
After the ride / maintenance
In the event of damage or malfunctions, the bicycle must be checked by a specialised workshop before further use
Have the bike checked and serviced regularly by a specialist company in accordance with the manufacturer's specifications in order to avoid hazards, e.g. due to wear and tear
Observe the specified torques (Nm) for the assembly of components
Contact your specialist dealer if you are unable to carry out the described work on your bike (e.g. making adjustments) yourself, if you feel unsure or if you do not have the right tools.
Important safety information for children's bikes
The safety information is part of the operating instructions, in which all relevant information is described.
The digital operating instructions can be accessed here www. Cube.eu/downloads.
Reading the safety information does not release you from the obligation to read and observe the operating instructions!
Failure to observe the operating instructions can lead to dangerous driving situations, falls, accidents and damage to property.
General
The bicycle may only be used under the supervision of a parent or guardian
Disregarding the intended use can lead to the failure of components and materials with the risk of accidents and injury:
Comply with the restrictions of the specified utilisation class / bike classification
Do not exceed the permissible total weight (bike + rider + load + trailer if applicable)
Check the bike for possible damage before every ride, especially to the frame, fork, handlebar/stem unit and seat post
Do not use the bike if you notice any damage
Be aware of the increased risk of injury due to potentially high temperatures of individual components (e.g. brakes, headlights)
Observe the manufacturer's instructions for attaching accessories (bags, lock, child seat, carrier systems, etc.) and for using a trailer
Observe the legal regulations applicable in the respective country for use on public roads
When transporting the bike, observe the manufacturer's, legal or transport company's instructions
Before the journey
Before each journey, check in particular
the correct function of brakes, steering, chassis and lights,
the tight fit of handlebars, stem, wheels, mudguards and pedals and
the tyre pressure
The tyres must be checked and adjusted in accordance with the manufacturer's instructions.
Riding behaviour
Initially familiarise yourself with the riding and braking behaviour, especially with different loads, wet conditions and loose surfaces
After the ride / maintenance
In the event of damage or malfunctions, the bicycle must be checked by a specialised workshop before further use
Have the bicycle checked and serviced regularly by a specialist company in accordance with the manufacturer's specifications in order to avoid hazards, e.g. due to wear and tear
Observe the specified torques (Nm) for the assembly of components
Contact your specialist dealer if you are unable to carry out the described work on your bike (e.g. making adjustments) yourself, if you feel unsure or do not have the right tools
