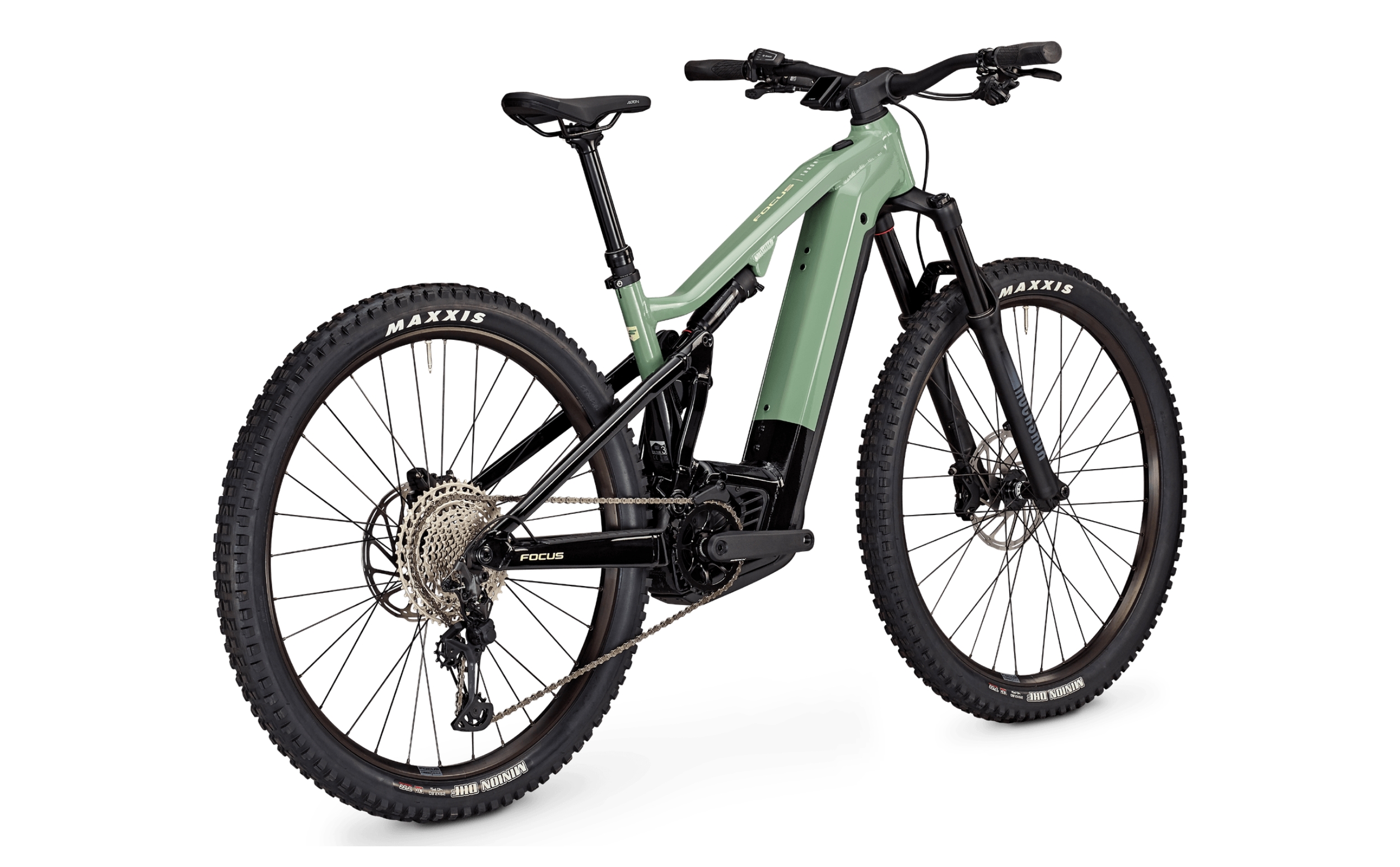

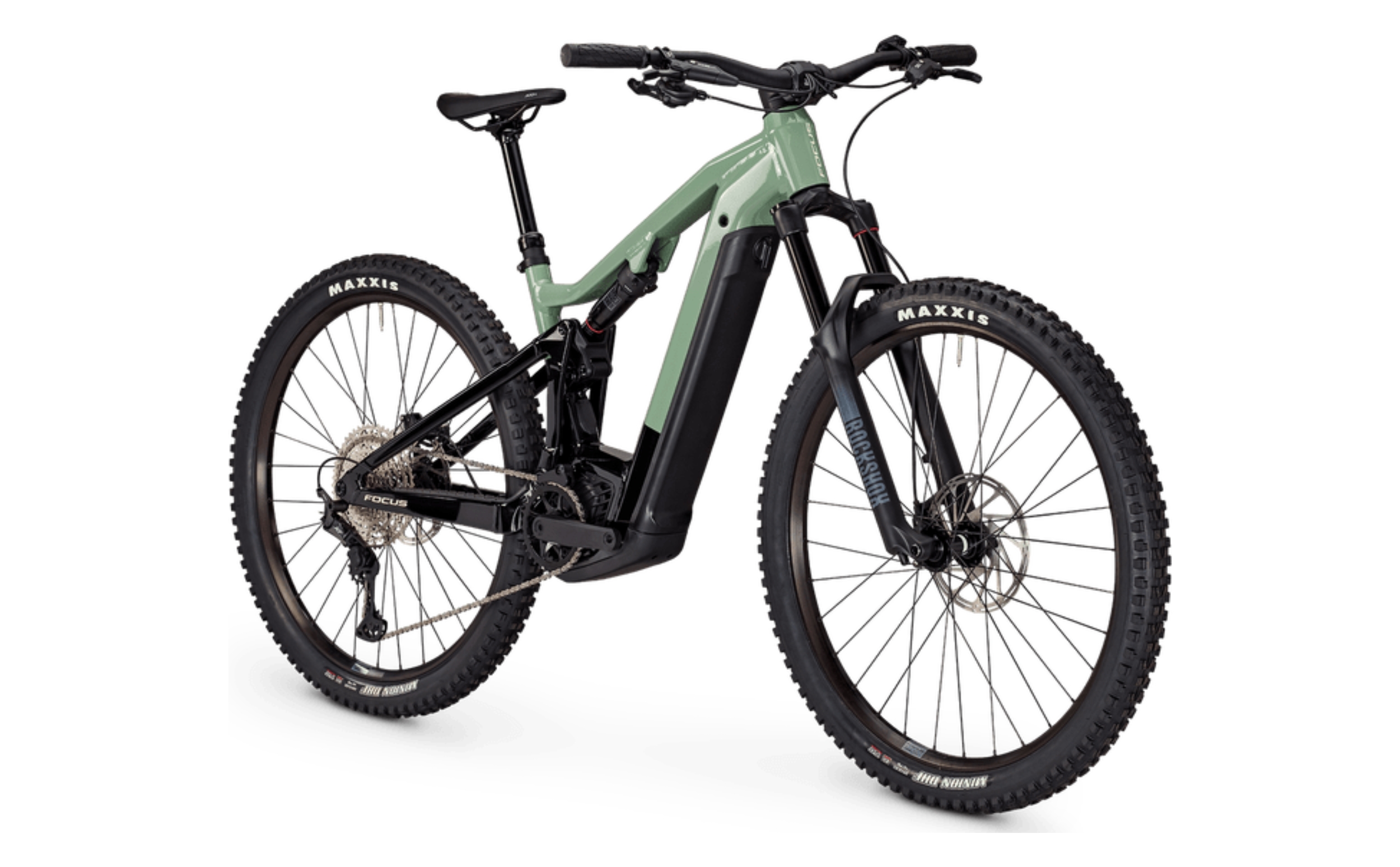

Focus Thron² 6.8 Small Performance CX 625Wh
€2,799.00
% €5,599.00Prices incl. VAT plus shipping costs
-
Currently not available
-
Fast delivery!
-
Convenient financing with easyCredit instalment purchase
-
100,000+ satisfied customers
-
Pay only after 30 days further information
Size S is only available with a 625 Wh battery
SUPER POWERFUL AND DYNAMIC E-ASSIST WITH INTEGRATED RECORD RANGE
The efficient Bosch Performance CX E-drive (Gen.4) supports you with a powerful 85 Nm up to 25 km/h. The most powerful electric motor from Bosch is perfectly integrated and the THRON² is wonderfully balanced. In eMTB mode, the motor adapts the support optimally to your performance. The new 625 Wh battery (Smart System) brings you endless trail fun. The battery is integrated into the down tube, but can be removed for charging.
OPTIMIZED KINEMATICS FOR STRONG PROGRESSION
With the further development of our well-known F.O.L.D. kinematics, your THRON² 6.8 now gives you even more fun on your rides. We have retained the popular sensitivity of the F.O.L.D., but have changed the positioning of the kinematics in the frame to offer better resistance to punctures. The characteristic curve is completely progressive and ensures a super stable chassis so that you feel safe in any terrain. E-MTBs in particular, with their additional weight from the motor and battery, benefit from the increased progression. This feature allows you to master any trail, while the suspension still provides you with enough comfort for long trail laps. In addition, a lower standover height gives you more room to play with your THRON² 6.8 on the trail.
VERSATILE USE
From trail tours in alpine terrain to commuting and bikepacking, everything is possible with the THRON². With the appropriate conversion measures, a wide range of equipment can be retrofitted at the designated mounting points - depending on where your E-MTB tour takes you. In addition, the specially developed C.I.S. design ensures a tidy look on the cockpit and guarantees flawless shifting and braking at all times. All cables run from the handlebars into the stem and through the headset into the frame. You can also charge your end devices via a USB-C charging port on the top tube.
Customisable Bosch Smart System with Performance CX E-drive, Kiox 300 display and 625 Wh battery
Reliable and precise Shimano XT components and powerful 4-piston brakes
This bike arrives (almost) fully assembled. All you have to do is straighten the handlebars and attach the pedals.
| Frame | 7005 hydroformed aluminium, 3D forging, 130mm F.O.L.D. kinematics, 148x12 mm thru-axle, USB-C port, post mount 180 mm |
| Frame shape | Mountainbike |
| Material | Aluminium |
| Gender | Unisex |
| Weight | approx. 26.1 kg |
| permissible total weight | 150 kg |
| Fork | SR Suntour Aion 35 EVO, RC-PCS 29, 110x15 mm, 44 mm rake |
| Damper | Rock Shox Deluxe Select, 210/50 mm, hardware: 25.0 x 8.0 mm, no bushing |
| Manufacturer shift group | Shimano |
| Rear derailleur | Shimano Deore XT M8100, 12-speed |
| Number of gears | 1 x 12 |
| Circuit type | Kettenschaltung |
| Crank handle | Samox EC40 ISIS |
| Cassette | Shimano Deore CS-M6100, 12-speed |
| Drive type | Kettenantrieb |
| Freewheel/coaster | Freilauf |
| Pedals included in the scope of delivery | nein |
| Rims | RODI TRYP30, 30-622 |
| Hubs | rear: Novatec D462, front: thru axle, 15x100 mm, Novatec D041, 15x110 mm |
| Wheel size | 29 Zoll |
| Tyres | Maxxis Minion DHF, 2.6 Dual EXO TR, 66-622 |
| Motor manufacturer | Bosch |
| Engine | Performance Line CX |
| max. torque | 85 Nm |
| Reach | up to 150 km |
| Support for | up to 25 km/h |
| Battery | Bosch 625Wh PowerTube |
| Display | Bosch Kiox 300 |
| Brakes | SRAM DB8, 4-piston, hydraulic disc brake |
| Handlebars | Aluminium, 800 mm, rise: 12.5 mm, backsweep: 9° |
| Seat post | Post Modern dropper post PM-214, 34.9 mm |
| Saddle | Proxim X400 |
| Stem | FOCUS C.I.S. integrated, 50 mm, 0°, 35 mm, aluminium |
| Accessories/Miscellaneous | Charger included in the scope of delivery |
Log in
28 November 2024 10:14
Alles bestens.
Tolles Preis- Leistungsverhältnis. Rasche Lieferung.
20 June 2025 07:55
Schönes Rad zum top Preis. Schnelle und
Schönes Rad zum top Preis. Schnelle und sichere Lieferung Alles in allem sehr gut
WELCOME TO THE FOCUS FAMILY!
At FOCUS, we prefer to ride our bikes together. We believe that it makes life a little better.
So that you can get started right away, we have compiled important safety information for you in this booklet. In combination with the operating instructions, which you can view digitally, you have all the information you need to have a good time on your bike.
RIDE TOGETHER. RIDE BEYOND.
Your FOCUS Team
The safety information listed here refers to the operating instructions. In the operating instructions you will find more detailed information about your new e-bike, its operation, assembly, care and maintenance.
You can access the digital operating instructions either by entering the Internet address in your browser (e.g. Google Chrome) or by scanning the relevant QR code with the camera app on your smartphone.
If you would prefer to read the instructions on paper, we will send you a printed copy free of charge. Please contact our Customer Care team:
By email: info@focus-bikes.com
By phone: +49 (0) 711 2484880
By post:
FOCUS Bikes GmbH
Rotenwaldstraße 158
70197 Stuttgart, Germany
The original E-bike operating instructions with information on the motor, display, control unit, battery and charger can be found at:
For Fazua motors:https://fazua.com/de/support/help-center/knowledge-base/fazua-app/
For Bosch motors:https://help.bosch-ebike.com/de/help-center#wss-manuals
The original general operating instructions with information on all other components can be found at:
https://www.focus-bikes.com/de_de/manuals/bike/focus_general_manual_660924700.pdf
IMPORTANT SAFETY INFORMATION FOR YOUR E-BIKE
Reading the safety information does not release you from the obligation to read and observe the operating instructions! Failure to observe the operating instructions can lead to dangerous riding situations, falls, accidents and damage to property.
In addition to the information in our operating instructions, also observe the specifications of the component manufacturers >> see original operating instructions General Chapter 5 Component instructions.
I. Your specialist dealer
Do not use the E-Bike until your specialist dealer has adjusted it to your requirements and tightened all screws as specified. Let them show you how to operate the E-Bike.
Contact your specialist dealer if you are unable to carry out the work on your E-Bike described in the instructions yourself, if you feel unsure or if you do not have the right tools.
On our website at www.focus-bikes.com/store-locator/ you can find all the specialist dealers in your region.
II Our Customer Care
Contact our Customer Care if you have any questions about your E-Bike and the operating instructions and your specialist dealer are unable to help you.
III Before the first ride
Only use the E-Bike if you are sure that it is working properly, all parts are fully functional and all screws are tightened to the correct torque.
Familiarise yourself with the markings on your e-bike. Do not remove the barcode sticker and the type plate. They contain important information about your E-Bike >> see original general operating instructions Chapter 10.4 Barcode sticker and Chapter 10.5 Type plate.
Only use the E-Bike in accordance with our instructions. Otherwise, components may fail and you could be seriously injured.
Comply with the restrictions of the specified utilisation class. You can find out which utilisation class your E-Bike is approved for by looking at the graphic on the E-Bike frame >> see original general operating instructions Chapter 10.7 Intended use.
Do not exceed the permissible total weight (total weight=E-Bike weight + rider weight + payload + trailer) >> see original operating instructions General Chapter 12 Permissible total weight.
Observe our specifications for passenger and load transport >> see original General User Manual Chapter 31. Luggage.
Do not exceed the load capacity of the front wheel and rear wheel luggage carriers. The maximum load capacity is engraved on the luggage carriers >> see the original General User Manual, Chapter 30. Luggage carrier.
It is not permitted to mount child seats on pannier racks of pedelecs with a load capacity of less than 27 kg. The use of child seats with the MIK HD system may be permitted on our MIK HD pannier racks. If you have any questions in this regard, please contact your specialist dealer or the child seat manufacturer.
Do not make any changes to the drive system of the E-Bike. If the cut-off speed exceeds 25 km/h and/or the speed of the pushing aid exceeds 6 km/h, your E-bike is subject to authorisation and insurance >> see original general operating instructions Chapter 7 Legal requirements for participation in road traffic.
Do not exceed the period of use of the components.
Observe the legal regulations applicable in the respective country for the use of the E-bike on public roads and equip your E-bike in accordance with the legal requirements of the country in which you intend to ride >> see original operating instructions General Chapter 7 Legal requirements for participation in road traffic.
Observe the requirements of the legislator, the transport companies and the operating instructions for E-bike transport. Remove the battery before transporting the E-Bike >> see original general operating instructions Chapter 32 Transporting the bike.
Familiarise yourself with the operation of quick-releases and thru axles. Quick-release skewers and thru axles must be closed correctly. If you are not sure, ask your specialist dealer to show you how to use them >> see original General User Manual Chapter 27 Wheels and Chapter 17.1.2 Mounting with quick release.
The seat post must be at least 10 cm deep in the seat tube. The minimum insertion depth of 10 cm also applies if lower minimum insertion depths are specified in the component instructions or on the seat post itself. If a deeper minimum insertion depth is specified (e.g. 12 cm), this must be observed.
Familiarise yourself initially with the riding and braking behaviour as well as the electric assistance modes and the push assist (if available), especially with different loads, in wet conditions and on loose ground >> see original operating instructions General Chapter 14 Before your first ride and >> original operating instructions E-bike Chapter Drive Unit - Operation and Chapter Display - Push assistance.
If you have purchased an E-Bike with disc brakes, make sure that the brakes are applied before the first long ride. Braking serves to achieve optimum braking performance and minimise unpleasant noises.
IV. Before every journey >> see original operating instructions General Chapter 15 Before every journey.
Before every ride, check in particular:
Frame, fork, handlebar/stem unit, seat post, saddle and drive unit for possible damage.
Check that the brakes, steering, drive unit and lights are working correctly.
The tight fit of handlebars, stem, seat post, saddle, wheels, mudguards, quick-release levers and pedals as well as
the tyre pressure. The tyre pressure must be neither too high nor too low.
In the event of damage (e.g. bent components, cracks, scoring and colour changes in high-stress areas) and malfunctions, have the E-bike repaired by your specialist dealer and replace defective components before using it again.
V. After the ride
Be careful not to burn yourself when touching heated components (e.g. brake discs, drive unit, headlights).
VI Charging and using the battery >> see original E-Bike operating instructions, Battery chapter
Only use undamaged and unmodified batteries and chargers.
Observe the specifications for charging and using the battery, in particular with regard to the ambient temperature and the location of the charging process.
VII Cleaning >> see original operating instructions General Chapter 34 Cleaning the bike and its components
Do not clean the E-Bike and its components with a high-pressure cleaner.
VIII. Assembly and adjustment work
Switch off the E-Bike and remove the E-Bike battery during assembly and adjustment work.
Observe the specified tightening torques (Nm) on the components and in the operating instructions. Use a torque spanner >> see original operating instructions General Chapter 13 Tightening torques for screw connections.
Never clamp the saddle in the bends of the saddle frame, but always in the straight area. Only move the saddle within the straight area and within the marking. Turn the clamping bolts straight and fully into the nuts >> see original operating instructions General Chapter 18 Adjusting the saddle position and tilt.
Contact your specialist dealer to adjust the suspension elements.
Do not open the electronic components.
Only use original spare parts when replacing components and wearing parts. In addition to original spare parts, compatible parts expressly authorised by us may also be used. Your specialist dealer can help you if you have any questions.
IX. Maintenance intervals >> see original operating instructions General 39. maintenance intervals
Have the E-Bike checked and serviced regularly by a specialist dealer in accordance with our specifications in order to avoid hazards (e.g. due to wear and tear).
The first maintenance interval should take place at the latest after 100 kilometres or after six weeks from the date of purchase. The next maintenance should then be carried out every 1000 kilometres or annually.
Replace the seatpost after 14000 kilometres (maintenance interval 8), unless the seatpost manufacturer specifies a different interval in its instructions. The components must be replaced regardless of the material and whether a defect, cracks or damage can be seen from the outside. If the seatpost is not replaced in good time, it can break and cause you to fall heavily.
If your dealer has not provided you with a service booklet, you can download one from our website and print it out yourself: www.focus-bikes.com/manuals/service-booklet/sb-deutsch.pdf
