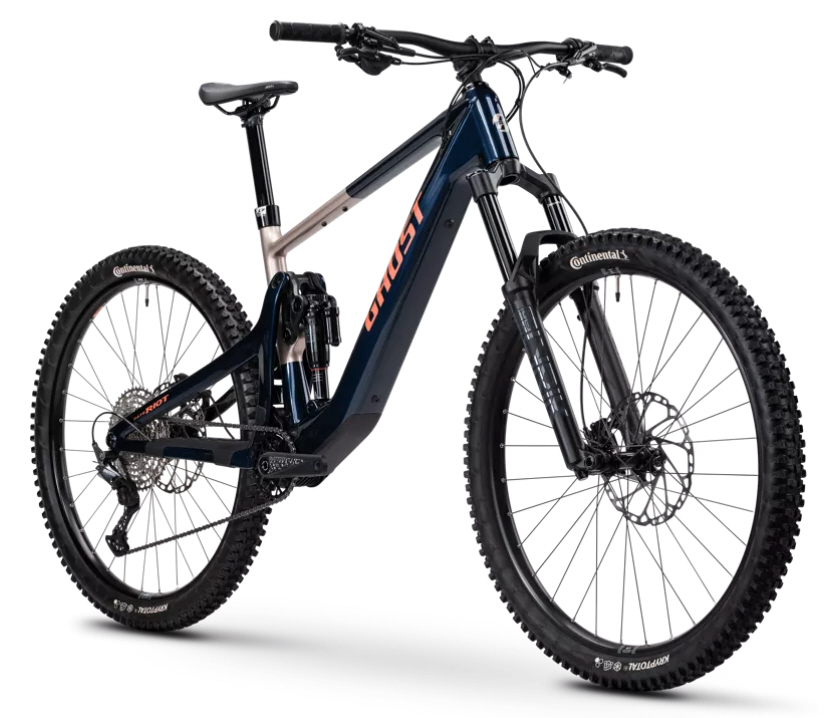

Ghost Path Riot CF Advanced Fazua Ride 60 480 Wh
-
Available immediately, with you in 6 - 8 working days
-
Fast delivery!
-
Convenient financing with easyCredit instalment purchase
-
Purchase on account
-
Pay only after 30 days further information
Undercover on the road: The Ghost Path Riot Advanced is an affordable fully that doesn't look like it has a motor. Equipped with a discreet Fazua e-bike motor, the bike makes the uphill easier, but due to its low weight it offers playful handling on the downhill. It is characterised by a robust carbon frame and Rockshox suspension elements with 160 mm travel at the front and 140 mm at the rear. A 480 Wh battery provides you with enough power for long tours, while tubeless tyres with Tire Noodles offer optimum grip and puncture protection. The innovative Traction Link frame construction ensures perfect traction and stability. The ideal mix of performance and price with the Path Riot Advanced!
This bike arrives (almost) fully assembled. All you have to do is straighten the handlebars and attach the pedals.
| Frame | HIGH Carbon Uni |
| Frame shape | Mountainbike |
| Material | Carbon |
| Gender | Unisex |
| permissible total weight | 120 kg |

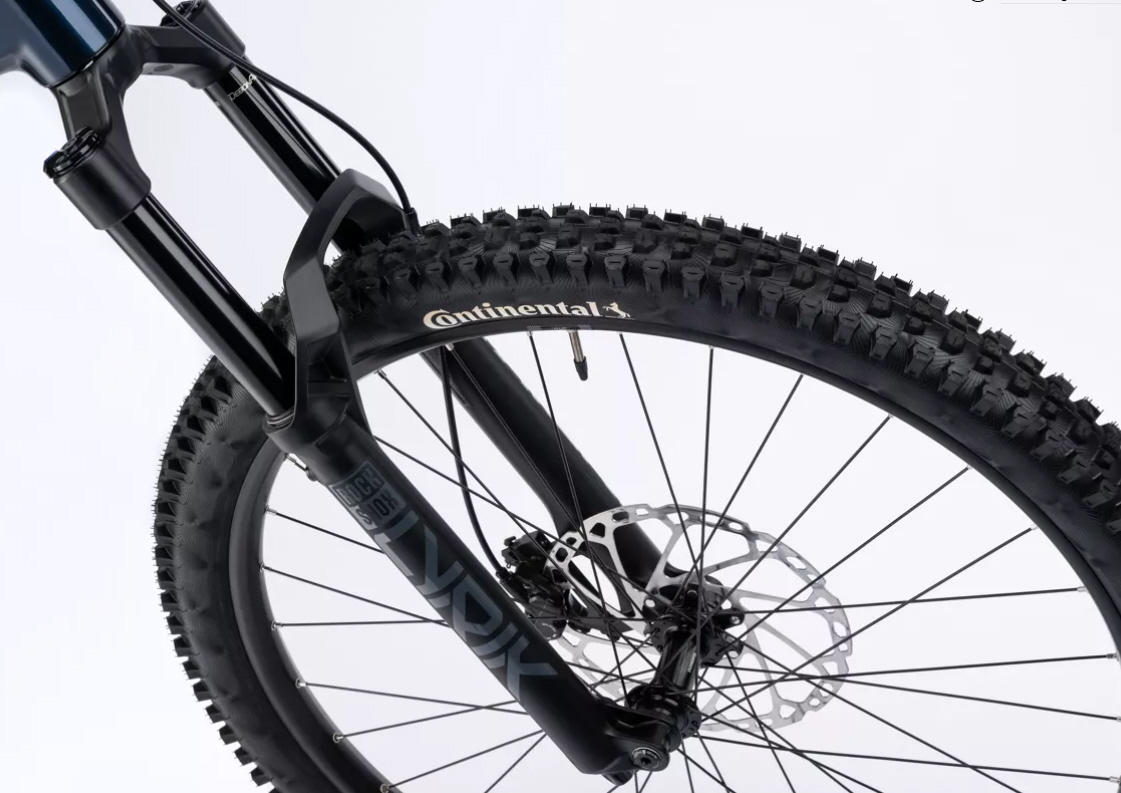

| Fork | Rockshox Lyrik Select Charger RC, DebonAir+, Boost 150 mm |
| Damper | Rockshox Super Deluxe Select RT 185x55mm, DebonAir Prog. |
| Manufacturer shift group | Shimano |

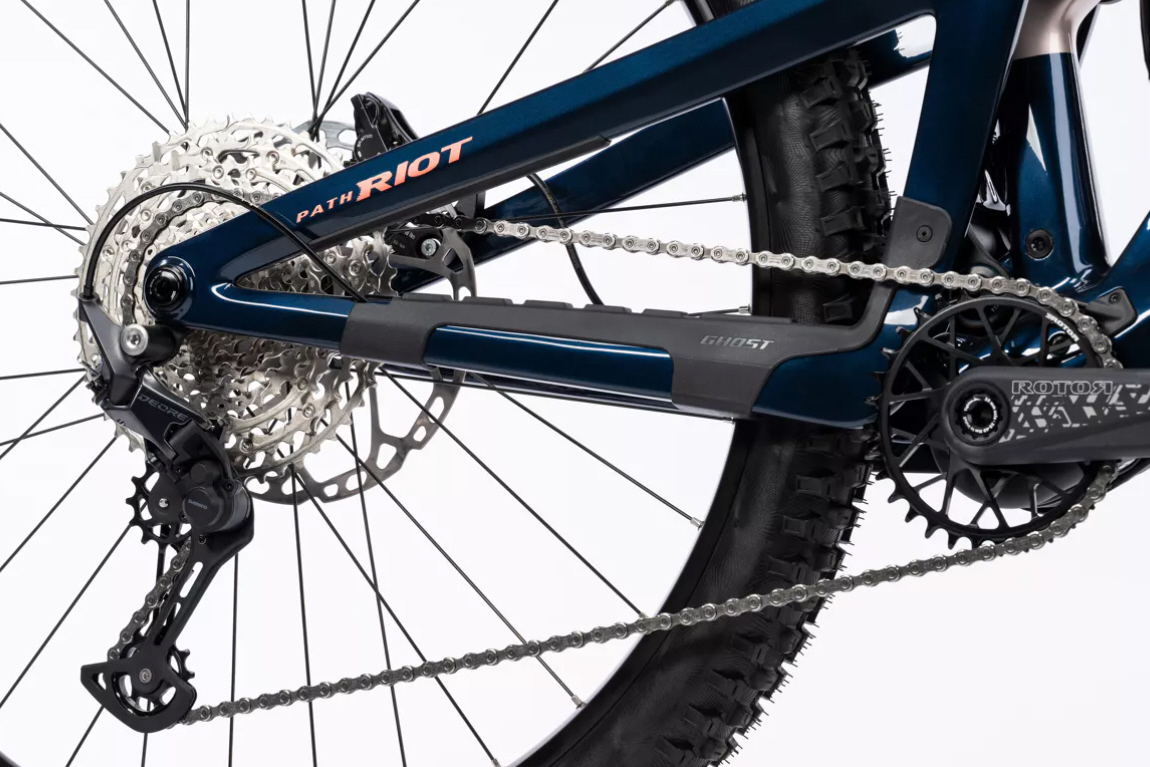

| Rear derailleur | Shimano Deore RD-M6100-SGS 12s, Shadow+ |
| Number of gears | 1 x 12 |
| Circuit type | Kettenschaltung |
| Crank handle | Rotor E-Kapic Crankarms + Chainring for FAZUA Ride 60 165 |
| Cassette | Shimano Deore CS-M6100-12, MICRO SPLINE |
| Drive type | Kettenantrieb |
| Freewheel/coaster | Freilauf |
| Pedals included in the scope of delivery | nein |
| Rims | WTB ST Light i30 29" TCS 2.0, 32H, Single eyelets |
| Wheel size | 29 Zoll |
| Tyres | Continental Kryptotal-Fr Trail Soft, foldable skin SL, TR 60-622 |
| Motor manufacturer | Fazua |

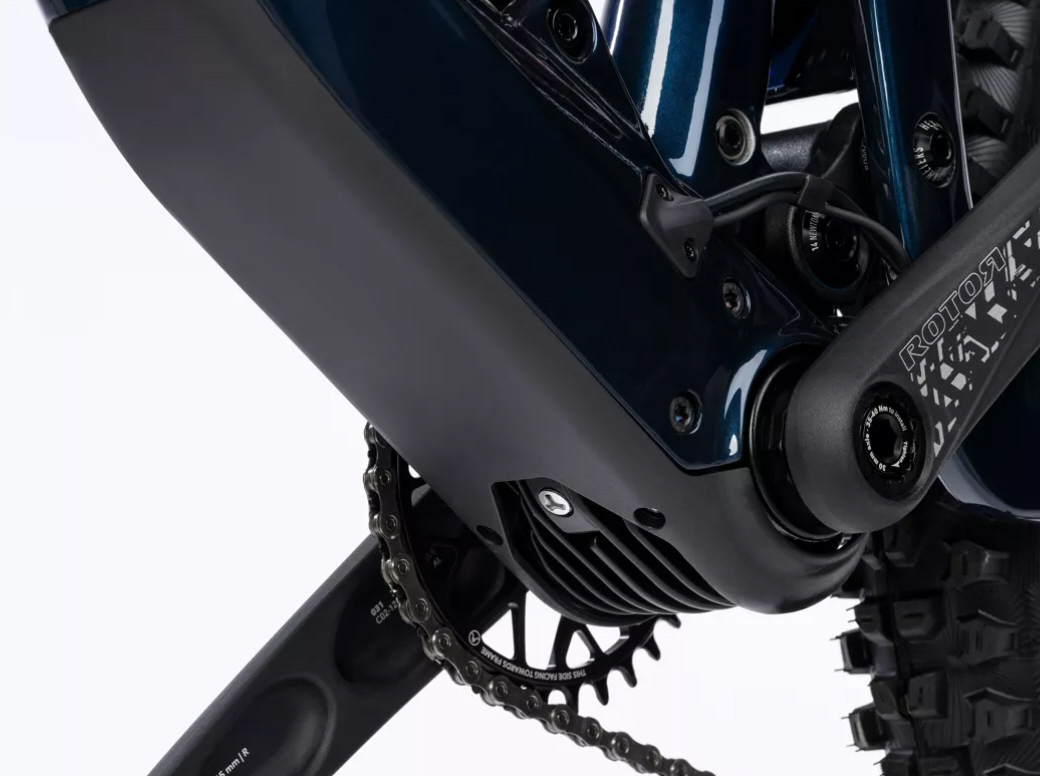

| Engine | FAZUA RIDE 60 |
| max. torque | 60 Nm |
| Reach | up to 100 km |
| Support for | up to 25 km/h |
| Battery | Fazua Energy 480 Wh |
| Display | Fazua Ride 60 LED Hub + Ring Control |
| Brakes | Shimano, hydraulic disc brake, BR-MT520, 4 pistons, resin pad, 203 mm |

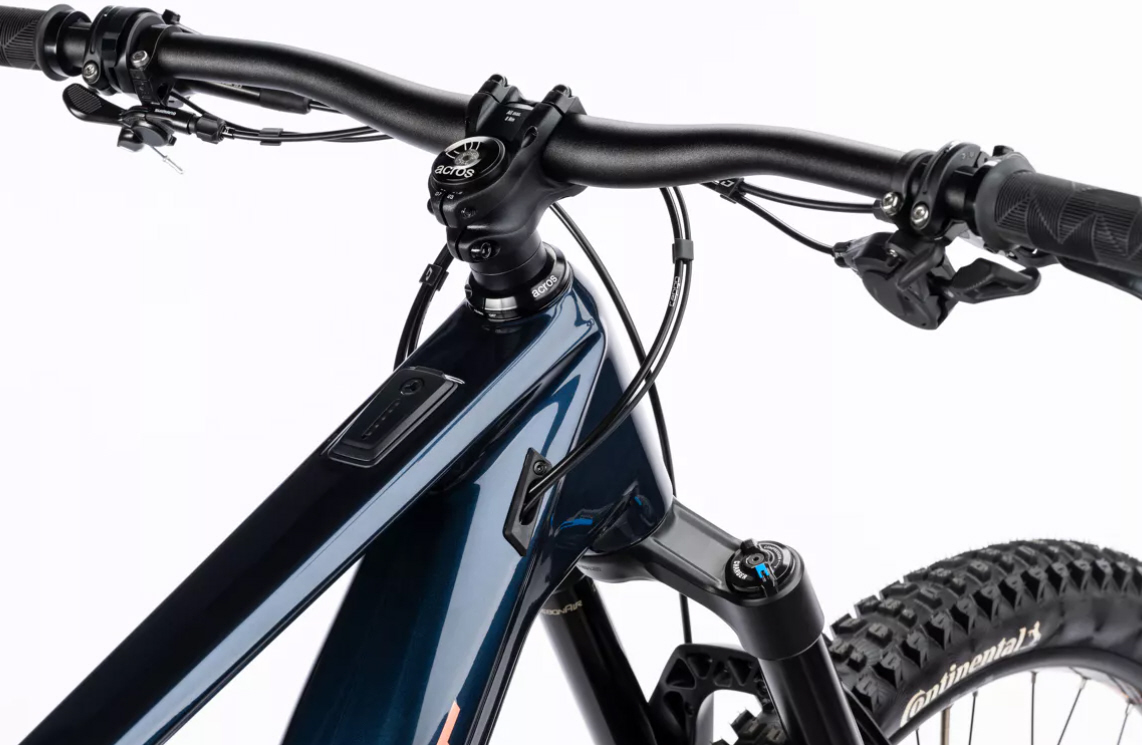

| Handlebars | XLC Riser Bar MTB Dia. 31.8 mm, Rise: 20 mm, backsweep 9° |
| Seat post | Eightpins Dropperpost H01 Hydraulic, telescope, Dia. 34.9 mm, 6X-S |
| Saddle | Fizik MTB Terra Aidon X5 145 mm |
| Stem | PMG, Non-adjustable, Team All Mtn, Dia. 31.8 mm, L: 40 mm, A-Head |
| Accessories/Miscellaneous | Charger included in the scope of delivery |
| Weight | approx. 23.9 kg |
| Impellers | Newmen Beskar 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| Hubs | front: DT Swiss 370 Classic 15x110 mm, rear: DT Swiss 370 Classic 12x148 mm |
Log in
Important safety information for electric bicycles
The safety information is part of the operating instructions, in which all relevant information is described.
The digital operating instructions can be accessed here www. Cube.eu/downloads.
Reading the safety information does not release you from the obligation to read and observe the operating instructions!
Failure to observe the operating instructions can lead to dangerous driving situations, falls, accidents and damage to property.
General
Disregarding the intended use can lead to the failure of components and materials with the risk of accidents and injury:
Comply with the restrictions of the specified utilisation class / bike classification
Do not exceed the permissible total weight (electric bike + rider + load + trailer if applicable)
Observe the manufacturer's specifications for transporting people and loads
Manipulation of the drive system, in particular tuning, is not permitted
Check the electric bike for possible damage before every ride, especially to the frame, fork, handlebar/stem unit, drive unit and seat post
Do not use the electric bike if any damage is found
Be aware of the increased risk of injury due to potentially high temperatures of individual components (e.g. brakes, drive unit, headlights)
Observe the manufacturer's instructions for attaching add-on parts (bags, lock, child seat, carrier systems, etc.) and for using a trailer
Observe the legal regulations applicable in the respective country for use on public roads
When transporting the electric bike, observe the instructions of the manufacturer, the legislator or the transport company
Before the journey
Before each journey, check in particular
the correct function of the brakes, steering, chassis and lights,
the tight fit of handlebars, stem, wheels, mudguards and pedals and
the tyre pressure
The tyres must be checked and adjusted in accordance with the manufacturer's instructions.
Riding behaviour
Initially familiarise yourself with the riding and braking behaviour as well as the electric assistance modes and the push assistance (if available), especially with different loads, in wet conditions and on loose surfaces
After the journey / maintenance
In the event of damage or malfunctions, the electric bike must be checked by a specialist company before further use
Have the electric bike checked and serviced regularly by a specialised company in accordance with the manufacturer's specifications in order to avoid hazards, e.g. due to wear and tear
Observe the specified torques (Nm) for the assembly of components
Only use batteries and chargers approved by the manufacturer
Observe the manufacturer's specifications for charging and using the battery, particularly with regard to the ambient temperature and location of the charging process
Only use undamaged and unmodified batteries and chargers
Modifying the add-on parts on the electric bike can affect safety and approval. Contact your specialist dealer before making any such changes.
Contact your specialist dealer if you are unable to carry out the described work on your electric bike (e.g. making adjustments) yourself, if you feel unsure or if you do not have the right tools.
Important safety information for bicycles
The safety information is part of the operating instructions, in which all relevant information is described.
The digital operating instructions can be accessed here www. Cube.eu/downloads.
Reading the safety information does not release you from the obligation to read and observe the operating instructions!
Failure to observe the operating instructions can lead to dangerous driving situations, falls, accidents and damage to property.
General
Disregarding the intended use can lead to the failure of components and materials with the risk of accidents and injury:
Comply with the restrictions of the specified utilisation class / bike classification
Do not exceed the permissible total weight (bike + rider + load + trailer if applicable)
Check the bike for possible damage before every ride, especially to the frame, fork, handlebar/stem unit and seat post
Do not use the bike if you notice any damage
Be aware of the increased risk of injury due to potentially high temperatures of individual components (e.g. brakes, headlights)
Observe the manufacturer's instructions for attaching accessories (bags, lock, child seat, carrier systems, etc.) and for using a trailer
Observe the legal regulations applicable in the respective country for use on public roads
When transporting the bike, observe the manufacturer's, legal or transport company's instructions
Before the journey
Before each journey, check in particular
the correct function of brakes, steering, chassis and lights,
the tight fit of handlebars, stem, wheels, mudguards and pedals and
the tyre pressure
The tyres must be checked and adjusted in accordance with the manufacturer's instructions.
Riding behaviour
Initially familiarise yourself with the riding and braking behaviour, especially with different loads, wet conditions and loose surfaces
After the ride / maintenance
In the event of damage or malfunctions, the bicycle must be checked by a specialised workshop before further use
Have the bike checked and serviced regularly by a specialist company in accordance with the manufacturer's specifications in order to avoid hazards, e.g. due to wear and tear
Observe the specified torques (Nm) for the assembly of components
Contact your specialist dealer if you are unable to carry out the described work on your bike (e.g. making adjustments) yourself, if you feel unsure or if you do not have the right tools.
Important safety information for children's bikes
The safety information is part of the operating instructions, in which all relevant information is described.
The digital operating instructions can be accessed here www. Cube.eu/downloads.
Reading the safety information does not release you from the obligation to read and observe the operating instructions!
Failure to observe the operating instructions can lead to dangerous driving situations, falls, accidents and damage to property.
General
The bicycle may only be used under the supervision of a parent or guardian
Disregarding the intended use can lead to the failure of components and materials with the risk of accidents and injury:
Comply with the restrictions of the specified utilisation class / bike classification
Do not exceed the permissible total weight (bike + rider + load + trailer if applicable)
Check the bike for possible damage before every ride, especially to the frame, fork, handlebar/stem unit and seat post
Do not use the bike if you notice any damage
Be aware of the increased risk of injury due to potentially high temperatures of individual components (e.g. brakes, headlights)
Observe the manufacturer's instructions for attaching add-on parts (bags, lock, child seat, carrier systems, etc.) and for using a trailer
Observe the legal regulations applicable in the respective country for use on public roads
When transporting the bike, observe the manufacturer's, legal or transport company's instructions
Before the journey
Before each journey, check in particular
the correct function of brakes, steering, chassis and lights,
the tight fit of handlebars, stem, wheels, mudguards and pedals and
the tyre pressure
The tyres must be checked and adjusted in accordance with the manufacturer's instructions.
Riding behaviour
Initially familiarise yourself with the riding and braking behaviour, especially with different loads, wet conditions and loose surfaces
After the ride / maintenance
In the event of damage or malfunctions, the bicycle must be checked by a specialised workshop before further use
Have the bicycle checked and serviced regularly by a specialist company in accordance with the manufacturer's specifications in order to avoid hazards, e.g. due to wear and tear
Observe the specified torques (Nm) for the assembly of components
Contact your specialist dealer if you are unable to carry out the described work on your bike (e.g. making adjustments) yourself, if you feel unsure or do not have the right tools
