Haibike Adventr 11 ABS Performance CX 800 Wh
-
Currently not available
-
Fast delivery!
-
Convenient financing with easyCredit instalment purchase
-
Purchase on account
-
Pay only after 30 days further information
Your adventure starts on your doorstep. The new ADVENTR 11 ABS combines the best of both worlds - paired with a large portion of safety and an even larger portion of riding fun. Thanks to its ALLTRAIL frame platform and 140 mm suspension travel at the front and 130 mm at the rear, it fulfils the same requirements as our sporty full eMountain bikes. However, the strong rear rack, reliable tyres and the innovative and particularly safe eBike ABS ensure that it also masters all everyday tasks with flying colours. Whatever terrain you choose: The new Bosch Performance Line CX drive pushes you powerfully forwards at all times. Thanks to the long-range 800 Wh battery, you can even go on longer tours. In short: with this SUV eBike, your adventures start right on your doorstep!
This bike arrives (almost) fully assembled. All you have to do is straighten the handlebars and attach the pedals.
| Frame | Low Aluminium Uni |
| Frame shape | Tiefeinstieg |
| Material | Aluminium |
| Gender | Unisex |
| permissible total weight | 150 kg |

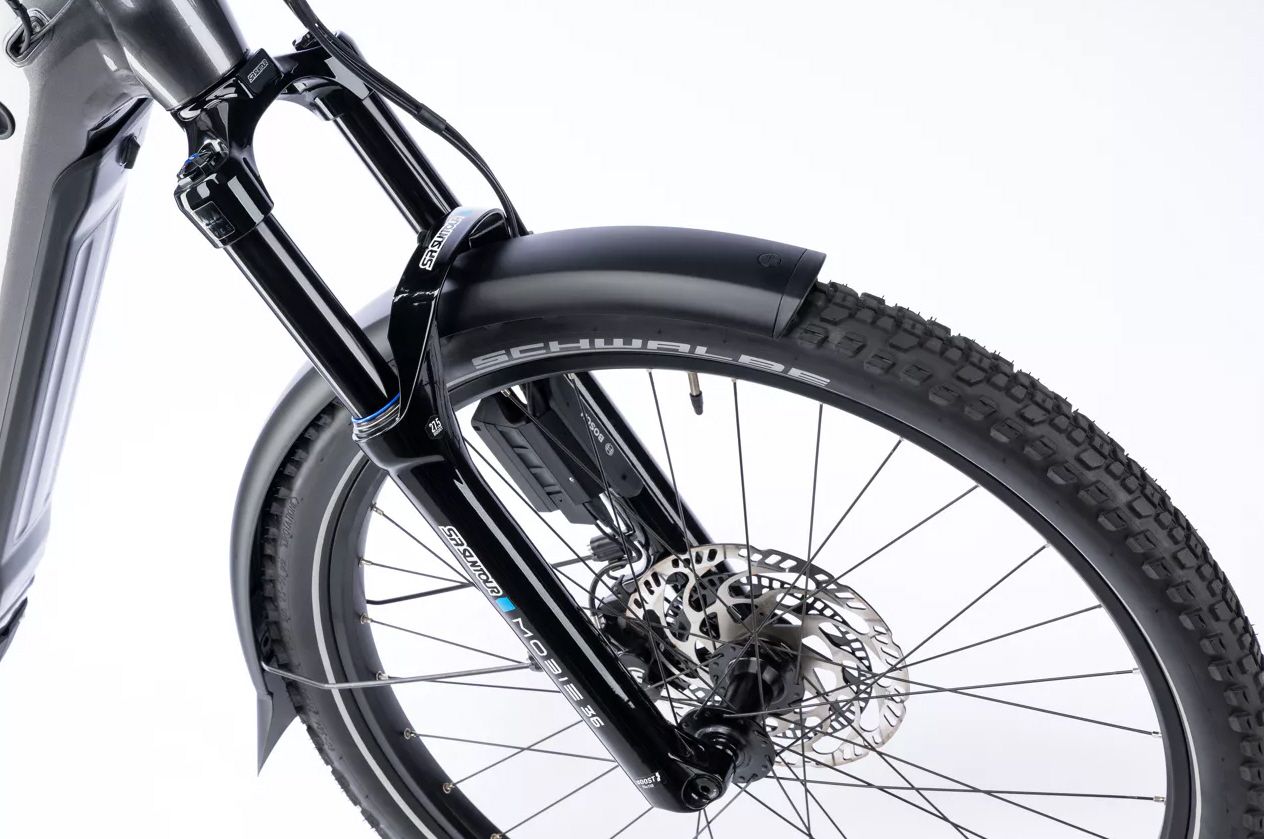

| Fork | Suntour Mobie 36-Boost 140 mm |
| Damper | Suntour RS24-Edge X 185x55mm, Trunnion |
| Manufacturer shift group | Shimano |

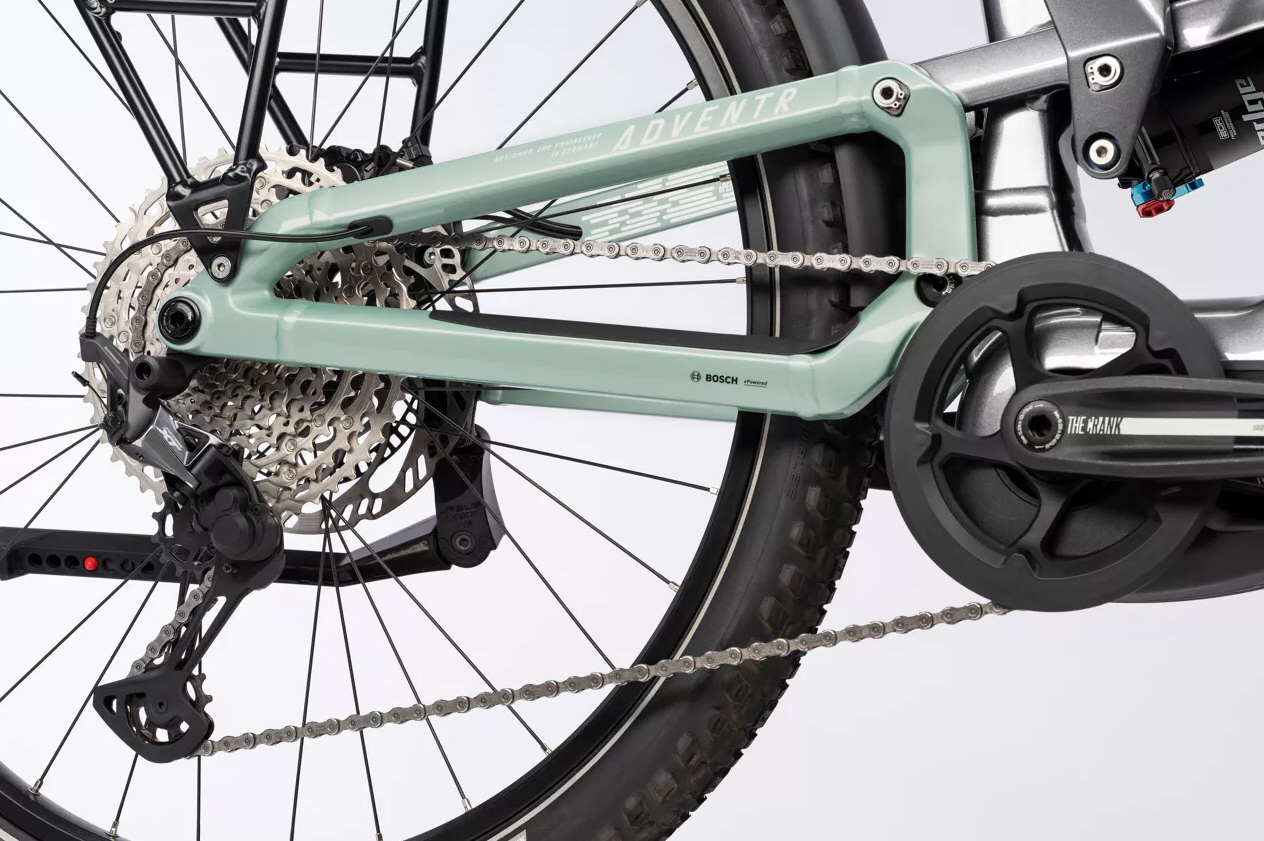

| Rear derailleur | Shimano Deore XT RD-M8100 12s |
| Number of gears | 1 x 12 |
| Circuit type | Kettenschaltung |
| Crank handle | Miranda Crius ISIS Crankarm 165 mm + Chainring 165 |
| Cassette | Shimano Deore CS-M6100-12, MICRO SPLINE |
| Drive type | Kettenantrieb |
| Freewheel/coaster | Freilauf |
| Pedals included in the scope of delivery | ja |
| Rims | Schurmann Yak25 32H with Single Eyelets |
| Wheel size | 27,5 Zoll |
| Tyres | Schwalbe Johnny Watts with reflective line 60-584 |
| Motor manufacturer | Bosch |

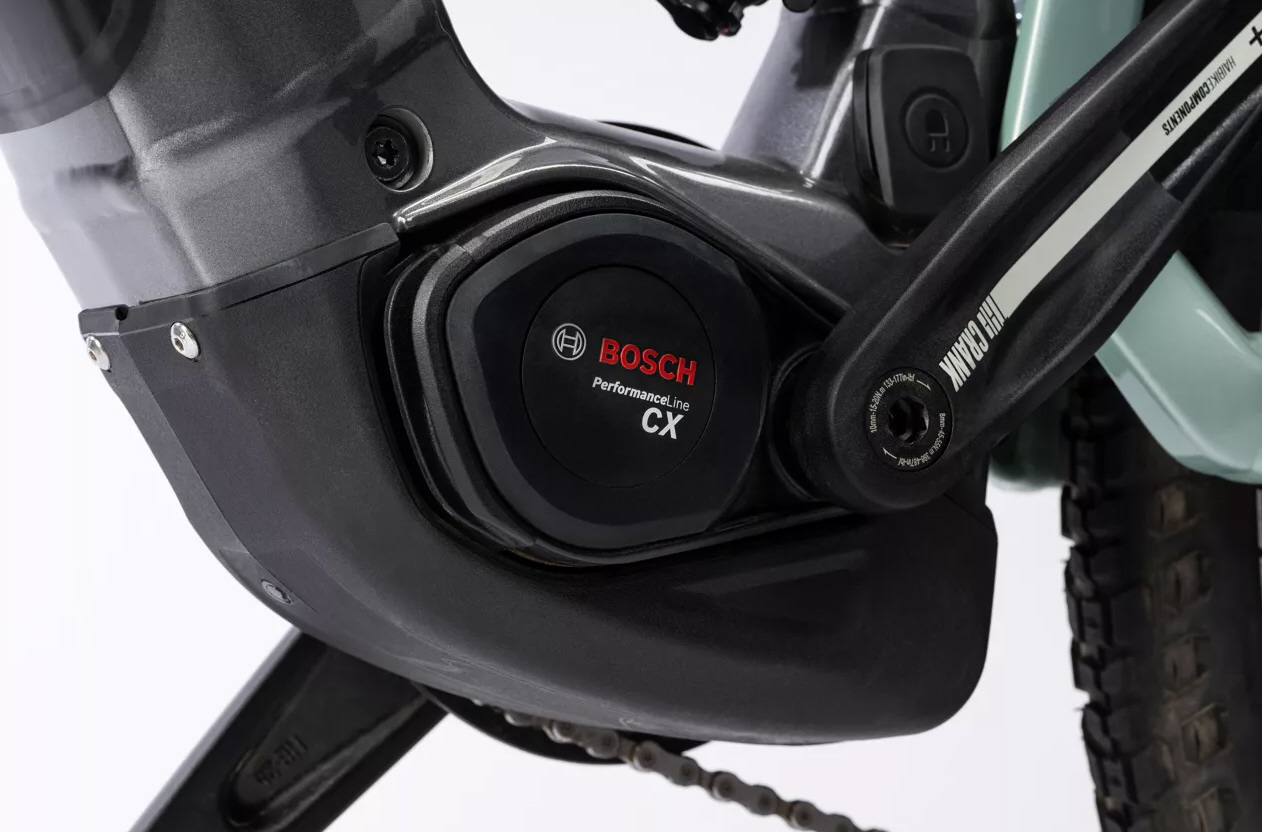

| Engine | Bosch Performance CX |
| max. torque | 85 Nm |
| Reach | up to 150 km |
| Support for | up to 25 km/h |
| Battery | Bosch 800Wh PowerTube |

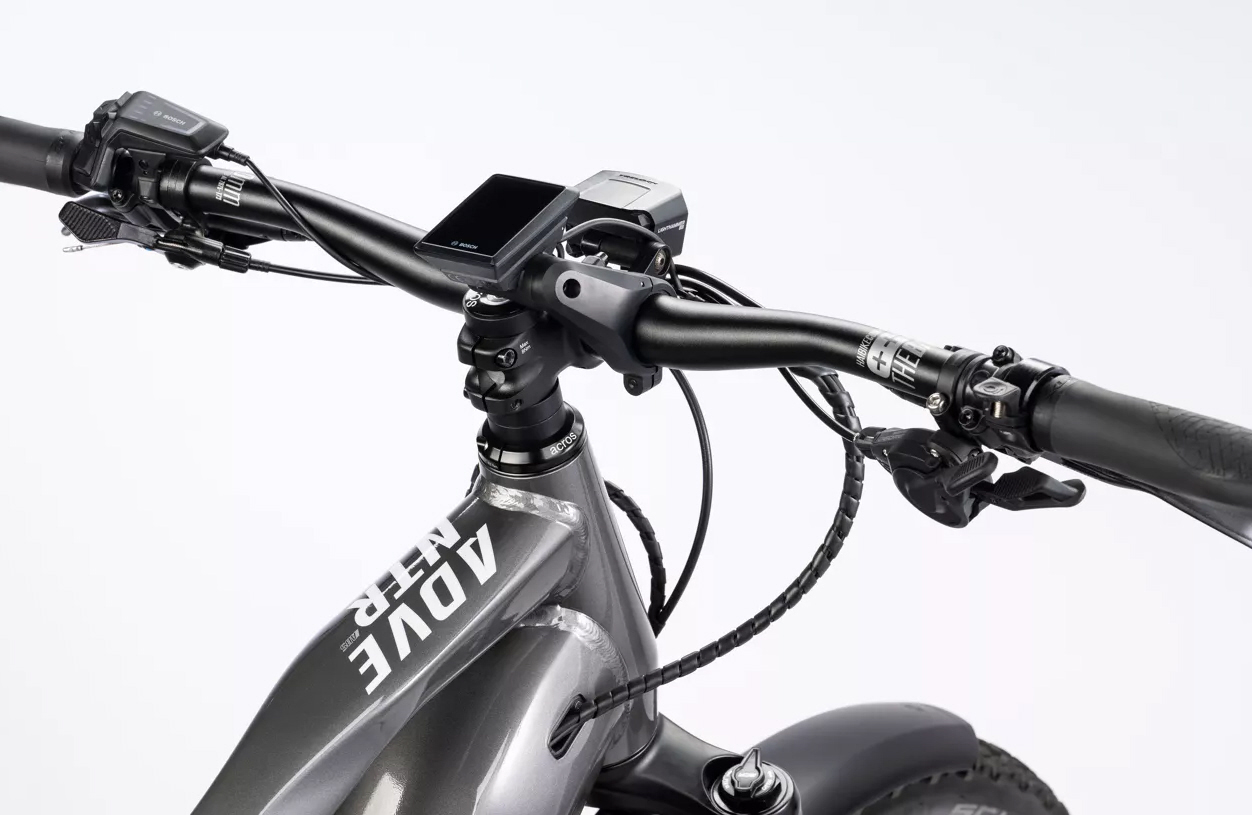

| Display | Bosch Kiox 300 |
| Brakes | Magura Hydraulic Disc brake MT C Allroad ABS 4 piston caliper, 203 mm |
| Handlebars | XLC MTB Dia. 31.8 mm, Rise: 15 mm |
| Seat post | Limotec Dropperpost A4H Dropper, Dia. 34.9 mm, Travel: 150 mm |
| Saddle | Prologo Proxim W400 T2.0 153 mm |
| Accessories/Miscellaneous | Charger included in the scope of delivery |
| Weight | approx. 28 kg |
| Hubs | front: SHIMANO HB-MT410-B, 15X110 mm, centre lock, rear: SHIMANO FH-MT400-B, 12X148 mm, centre lock |
| Stem | A-Head, MonkeyLink ready |
Log in
Important safety information for electric bicycles
The safety information is part of the operating instructions, in which all relevant information is described.
The digital operating instructions can be accessed here www.cube.eu/downloads.
Reading the safety information does not release you from the obligation to read and observe the operating instructions!
Failure to observe the operating instructions can lead to dangerous driving situations, falls, accidents and damage to property.
General
Disregarding the intended use can lead to the failure of components and materials with the risk of accidents and injury:
Comply with the restrictions of the specified utilisation class / bike classification
Do not exceed the permissible total weight (electric bike + rider + load + trailer if applicable)
Observe the manufacturer's specifications for transporting people and loads
Manipulation of the drive system, in particular tuning, is not permitted
Check the electric bike for possible damage before every ride, especially to the frame, fork, handlebar/stem unit, drive unit and seat post
Do not use the electric bike if any damage is found
Be aware of the increased risk of injury due to potentially high temperatures of individual components (e.g. brakes, drive unit, headlights)
Observe the manufacturer's instructions for attaching add-on parts (bags, lock, child seat, carrier systems, etc.) and for using a trailer
Observe the legal regulations applicable in the respective country for use on public roads
When transporting the electric bike, observe the instructions of the manufacturer, the legislator or the transport company
Before the journey
Before each journey, check in particular
the correct function of the brakes, steering, chassis and lights,
the tight fit of handlebars, stem, wheels, mudguards and pedals and
the tyre pressure
The tyres must be checked and adjusted in accordance with the manufacturer's instructions.
Riding behaviour
Initially familiarise yourself with the riding and braking behaviour as well as the electric assistance modes and the push assistance (if available), especially with different loads, in wet conditions and on loose surfaces
After the journey / maintenance
In the event of damage or malfunctions, the electric bike must be checked by a specialist company before further use
Have the electric bike checked and serviced regularly by a specialised company in accordance with the manufacturer's specifications in order to avoid hazards, e.g. due to wear and tear
Observe the specified torques (Nm) for the assembly of components
Only use batteries and chargers approved by the manufacturer
Observe the manufacturer's specifications for charging and using the battery, particularly with regard to the ambient temperature and location of the charging process
Only use undamaged and unmodified batteries and chargers
Modifying the add-on parts on the electric bike can affect safety and approval. Contact your specialist dealer before making any such changes.
Contact your specialist dealer if you are unable to carry out the described work on your electric bike (e.g. making adjustments) yourself, if you feel unsure or if you do not have the right tools.
Important safety information for bicycles
The safety information is part of the operating instructions, in which all relevant information is described.
The digital operating instructions can be accessed here www.cube.eu/downloads.
Reading the safety information does not release you from the obligation to read and observe the operating instructions!
Failure to observe the operating instructions can lead to dangerous driving situations, falls, accidents and damage to property.
General
Disregarding the intended use can lead to the failure of components and materials with the risk of accidents and injury:
Comply with the restrictions of the specified utilisation class / bike classification
Do not exceed the permissible total weight (bike + rider + load + trailer if applicable)
Check the bike for possible damage before every ride, especially to the frame, fork, handlebar/stem unit and seat post
Do not use the bike if you notice any damage
Be aware of the increased risk of injury due to potentially high temperatures of individual components (e.g. brakes, headlights)
Observe the manufacturer's instructions for attaching add-on parts (bags, lock, child seat, carrier systems, etc.) and for using a trailer
Observe the legal regulations applicable in the respective country for use on public roads
When transporting the bike, observe the manufacturer's, legal or transport company's instructions
Before the journey
Before each journey, check in particular
the correct function of brakes, steering, chassis and lights,
the tight fit of handlebars, stem, wheels, mudguards and pedals and
the tyre pressure
The tyres must be checked and adjusted in accordance with the manufacturer's instructions.
Riding behaviour
Initially familiarise yourself with the riding and braking behaviour, especially with different loads, wet conditions and loose surfaces
After the ride / maintenance
In the event of damage or malfunctions, the bicycle must be checked by a specialised workshop before further use
Have the bike checked and serviced regularly by a specialist company in accordance with the manufacturer's specifications in order to avoid hazards, e.g. due to wear and tear
Observe the specified torques (Nm) for the assembly of components
Contact your specialist dealer if you are unable to carry out the described work on your bike (e.g. making adjustments) yourself, if you feel unsure or if you do not have the right tools.
Important safety information for children's bikes
The safety information is part of the operating instructions, in which all relevant information is described.
The digital operating instructions can be accessed here www.cube.eu/downloads.
Reading the safety information does not release you from the obligation to read and observe the operating instructions!
Failure to observe the operating instructions can lead to dangerous driving situations, falls, accidents and damage to property.
General
The bicycle may only be used under the supervision of a parent or guardian
Disregarding the intended use can lead to the failure of components and materials with the risk of accidents and injury:
Comply with the restrictions of the specified utilisation class / bike classification
Do not exceed the permissible total weight (bike + rider + load + trailer if applicable)
Check the bike for possible damage before every ride, especially to the frame, fork, handlebar/stem unit and seat post
Do not use the bike if you notice any damage
Be aware of the increased risk of injury due to potentially high temperatures of individual components (e.g. brakes, headlights)
Observe the manufacturer's instructions for attaching add-on parts (bags, lock, child seat, carrier systems, etc.) and for using a trailer
Observe the legal regulations applicable in the respective country for use on public roads
When transporting the bike, observe the manufacturer's, legal or transport company's instructions
Before the journey
Before each journey, check in particular
the correct function of brakes, steering, chassis and lights,
the tight fit of handlebars, stem, wheels, mudguards and pedals and
the tyre pressure
The tyres must be checked and adjusted in accordance with the manufacturer's instructions.
Riding behaviour
Initially familiarise yourself with the riding and braking behaviour, especially with different loads, wet conditions and loose surfaces
After the ride / maintenance
In the event of damage or malfunctions, the bicycle must be checked by a specialised workshop before further use
Have the bike checked and serviced regularly by a specialist company in accordance with the manufacturer's specifications in order to avoid hazards, e.g. due to wear and tear
Observe the specified torques (Nm) for the assembly of components
Contact your specialist dealer if you are unable to carry out the described work on your bike (e.g. making adjustments) yourself, if you feel unsure or do not have the right tools
