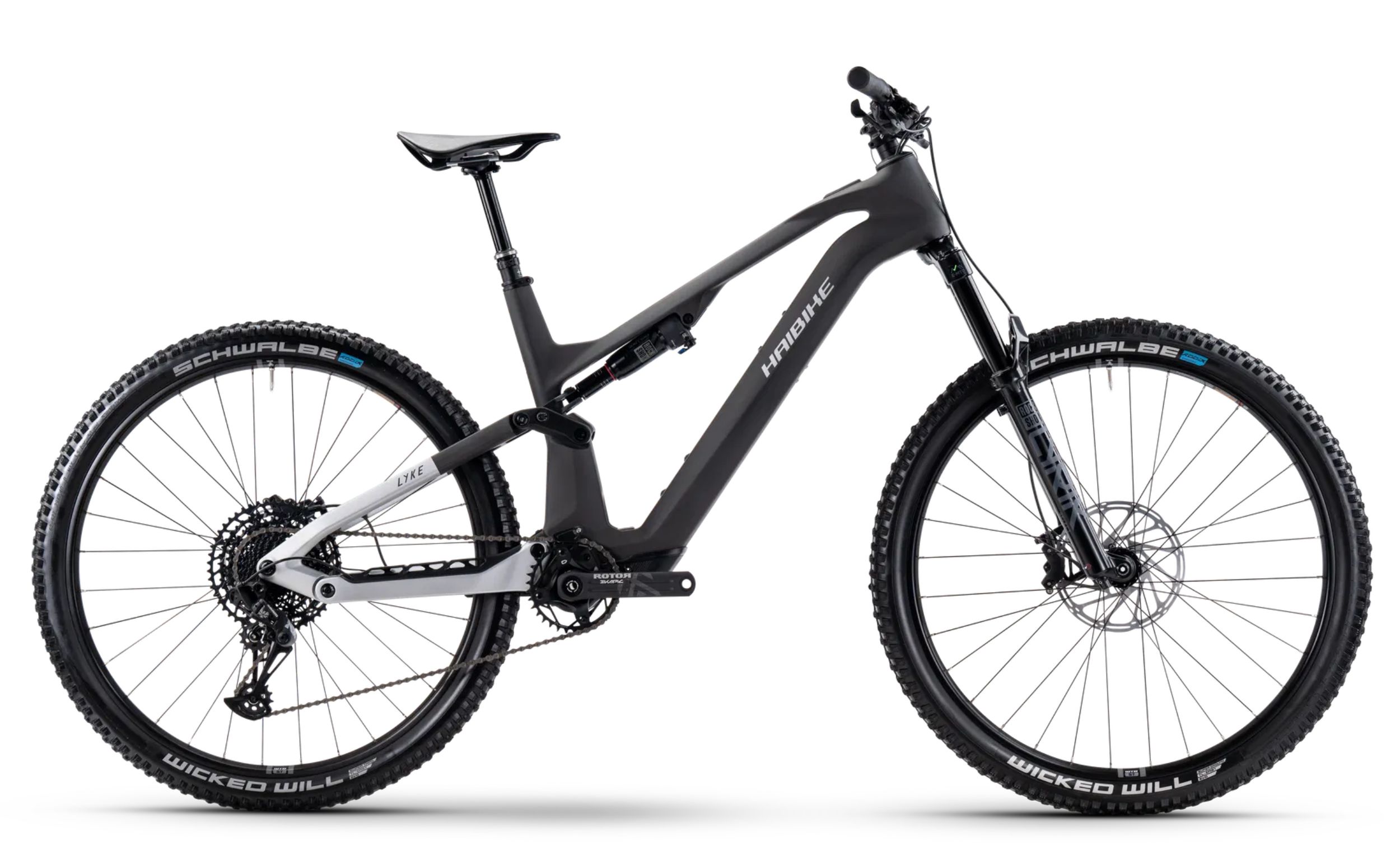

Haibike LYKE CF 10 Fazua Ride 60 480 Wh
-
Available immediately, with you in 6 - 8 working days
-
Fast delivery!
-
Convenient financing with easyCredit instalment purchase
-
Purchase on account
-
Pay only after 30 days further information
For all those who like it light and fast: The Lyke CF 10 from our new Light eMTB line impresses with its low weight and maximum ePerformance on the trail. The brand new ultra-light Fazua Ride 60 motor saves weight and provides just the right amount of support on the mountain. You also benefit from the weight-optimised carbon frame with closed down tube and new kinematics. Thanks to the innovative positioning of the motor in the seat tube, the centre of gravity is directly above the bottom bracket, which also ensures improved handling. Reliable Shimano shifting and braking components as well as 140 mm RockShox suspension elements offer you carefree riding pleasure. The Lyke CF 10 is the ideal partner for sporty riders who are looking for extra support and an agile eMTB at the same time.
This bike arrives (almost) fully assembled. All you have to do is straighten the handlebars and attach the pedals.
| Frame | Haibike Carbon, Tapered Head Tube, 29", 140mm |
| Frame shape | Mountainbike |
| Material | Carbon |
| Gender | Unisex |
| permissible total weight | 135 kg |
| Fork | Rockshox Lyrik Select Charger RC, Boost, DebonAir+ 140 mm |
| Damper | Rockshox Deluxe Select+ RT 210x52.5mm, DebonAir |
| Manufacturer shift group | Sram |
| Rear derailleur | Sram NX Eagle 12s |
| Number of gears | 1 x 12 |
| Circuit type | Kettenschaltung |
| Crank handle | Rotor E-Kapic crankset + SRAM CR Eagle T-Type 104BCD 165 |
| Cassette | Sram PG-1210 Eagle, HG |
| Drive type | Kettenantrieb |
| Freewheel/coaster | Freilauf |
| Pedals included in the scope of delivery | nein |
| Rims | WTB ST i30 TCS 2.0 29" 32H |
| Wheel size | 29 Zoll |
| Tyres | Schwalbe Wicked Will, Super Ground, TLE, ADDIX Speedgrip 62-622 |
| Motor manufacturer | Fazua |
| Engine | Fazua Ride 60 |
| max. torque | 60 Nm |
| Reach | up to 100 km |
| Support for | up to 25 km/h |
| Battery | Fazua Energy 480 Wh |
| Display | Fazua Ride 60 LED Hub + Mode control |
| Brakes | Sram Hydraulic Disc brake DB8 Stealth, 4 pistons |
| Handlebars | XLC Flat bar FlowBy JD-MTB539A, Dia. 31.8 mm |
| Seat post | Limotec Dropperpost A1H Dropper, Dia. 31.6 mm, Travel: 150 mm |
| Saddle | Selle Italia Model X Black |
| Stem | XLC FlowBy JD-ST97AT, Dia. 31.8 mm, L: 35 mm, A-Head |
| Accessories/Miscellaneous | Charger included in the scope of delivery |
| Weight | approx. 23.9 kg |
| Impellers | Newmen Beskar 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready |
Log in
Important safety information for electric bikes
The safety information is part of the operating instructions, in which all relevant information is described.
The digital operating instructions can be accessed here www. Cube.eu/downloads.
Reading the safety information does not release you from the obligation to read and observe the operating instructions!
Failure to observe the operating instructions can lead to dangerous driving situations, falls, accidents and damage to property.
General
Disregarding the intended use can lead to the failure of components and materials with the risk of accidents and injury:
Comply with the restrictions of the specified utilisation class / bike classification
Do not exceed the permissible total weight (electric bike + rider + load + trailer if applicable)
Observe the manufacturer's specifications for transporting people and loads
Manipulation of the drive system, in particular tuning, is not permitted
Check the electric bike for possible damage before every ride, especially to the frame, fork, handlebar/stem unit, drive unit and seat post
Do not use the electric bike if any damage is found
Be aware of the increased risk of injury due to potentially high temperatures of individual components (e.g. brakes, drive unit, headlights)
Observe the manufacturer's instructions for attaching add-on parts (bags, lock, child seat, carrier systems, etc.) and for using a trailer
Observe the legal regulations applicable in the respective country for use on public roads
When transporting the electric bike, observe the instructions of the manufacturer, the legislator or the transport company
Before the journey
Before each journey, check in particular
the correct function of the brakes, steering, chassis and lights,
the tight fit of handlebars, stem, wheels, mudguards and pedals and
the tyre pressure
The tyres must be checked and adjusted in accordance with the manufacturer's instructions.
Riding behaviour
Initially familiarise yourself with the riding and braking behaviour as well as the electric assistance modes and the push assistance (if available), especially with different loads, in wet conditions and on loose surfaces
After the journey / maintenance
In the event of damage or malfunctions, the electric bike must be checked by a specialist company before further use
Have the electric bike checked and serviced regularly by a specialised company in accordance with the manufacturer's specifications in order to avoid hazards, e.g. due to wear and tear
Observe the specified torques (Nm) for the assembly of components
Only use batteries and chargers approved by the manufacturer
Observe the manufacturer's specifications for charging and using the battery, particularly with regard to the ambient temperature and location of the charging process
Only use undamaged and unmodified batteries and chargers
Modifying the add-on parts on the electric bike can affect safety and approval. Contact your specialist dealer before making any such changes.
Contact your specialist dealer if you are unable to carry out the described work on your electric bike (e.g. making adjustments) yourself, if you feel unsure or if you do not have the right tools.
Important safety information for bicycles
The safety information is part of the operating instructions, in which all relevant information is described.
The digital operating instructions can be accessed here www. Cube.eu/downloads.
Reading the safety information does not release you from the obligation to read and observe the operating instructions!
Failure to observe the operating instructions can lead to dangerous driving situations, falls, accidents and damage to property.
General
Disregarding the intended use can lead to the failure of components and materials with the risk of accidents and injury:
Comply with the restrictions of the specified utilisation class / bike classification
Do not exceed the permissible total weight (bike + rider + load + trailer if applicable)
Check the bike for possible damage before every ride, especially to the frame, fork, handlebar/stem unit and seat post
Do not use the bike if you notice any damage
Be aware of the increased risk of injury due to potentially high temperatures of individual components (e.g. brakes, headlights)
Observe the manufacturer's instructions for attaching add-on parts (bags, lock, child seat, carrier systems, etc.) and for using a trailer
Observe the legal regulations applicable in the respective country for use on public roads
When transporting the bike, observe the manufacturer's, legal or transport company's instructions
Before the journey
Before each journey, check in particular
the correct function of brakes, steering, chassis and lights,
the tight fit of handlebars, stem, wheels, mudguards and pedals and
the tyre pressure
The tyres must be checked and adjusted in accordance with the manufacturer's instructions.
Riding behaviour
Initially familiarise yourself with the riding and braking behaviour, especially with different loads, wet conditions and loose surfaces
After the ride / maintenance
In the event of damage or malfunctions, the bicycle must be checked by a specialised workshop before further use
Have the bike checked and serviced regularly by a specialist company in accordance with the manufacturer's specifications in order to avoid hazards, e.g. due to wear and tear
Observe the specified torques (Nm) for the assembly of components
Contact your specialist dealer if you are unable to carry out the described work on your bike (e.g. making adjustments) yourself, if you feel unsure or if you do not have the right tools.
Important safety information for children's bikes
The safety information is part of the operating instructions, in which all relevant information is described.
The digital operating instructions can be accessed here www. Cube.eu/downloads.
Reading the safety information does not release you from the obligation to read and observe the operating instructions!
Failure to observe the operating instructions can lead to dangerous driving situations, falls, accidents and damage to property.
General
The bicycle may only be used under the supervision of a parent or guardian
Disregarding the intended use can lead to the failure of components and materials with the risk of accidents and injury:
Comply with the restrictions of the specified utilisation class / bike classification
Do not exceed the permissible total weight (bike + rider + load + trailer if applicable)
Check the bike for possible damage before every ride, especially to the frame, fork, handlebar/stem unit and seat post
Do not use the bike if you notice any damage
Be aware of the increased risk of injury due to potentially high temperatures of individual components (e.g. brakes, headlights)
Observe the manufacturer's instructions for attaching add-on parts (bags, lock, child seat, carrier systems, etc.) and for using a trailer
Observe the legal regulations applicable in the respective country for use on public roads
When transporting the bike, observe the manufacturer's, legal or transport company's instructions
Before the journey
Before each journey, check in particular
the correct function of brakes, steering, chassis and lights,
the tight fit of handlebars, stem, wheels, mudguards and pedals and
the tyre pressure
The tyres must be checked and adjusted in accordance with the manufacturer's instructions.
Riding behaviour
Initially familiarise yourself with the riding and braking behaviour, especially with different loads, wet conditions and loose surfaces
After the ride / maintenance
In the event of damage or malfunctions, the bicycle must be checked by a specialised workshop before further use
Have the bike checked and serviced regularly by a specialist company in accordance with the manufacturer's specifications in order to avoid hazards, e.g. due to wear and tear
Observe the specified torques (Nm) for the assembly of components
Contact your specialist dealer if you are unable to carry out the described work on your bike (e.g. making adjustments) yourself, if you feel unsure or do not have the right tools
