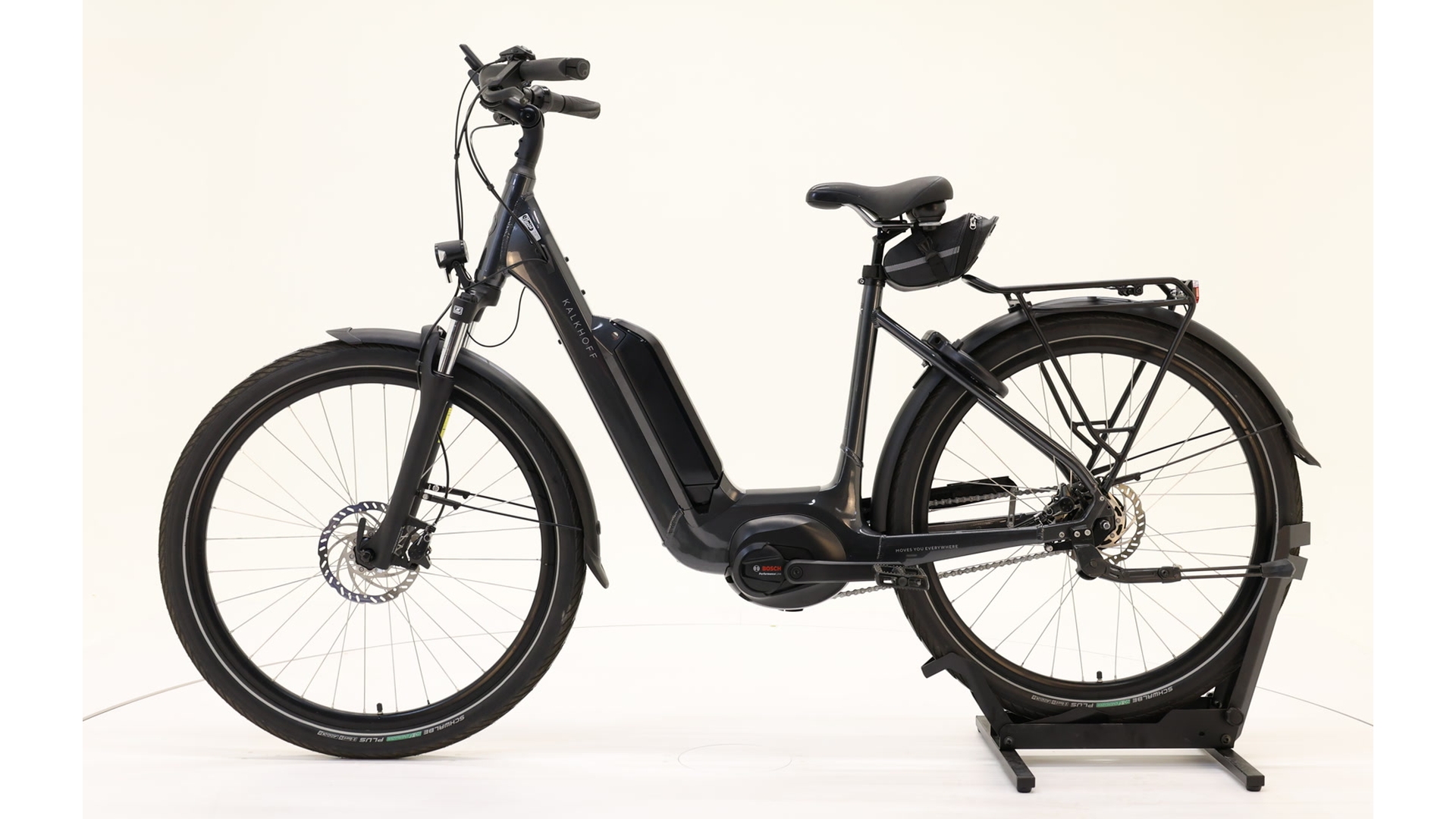

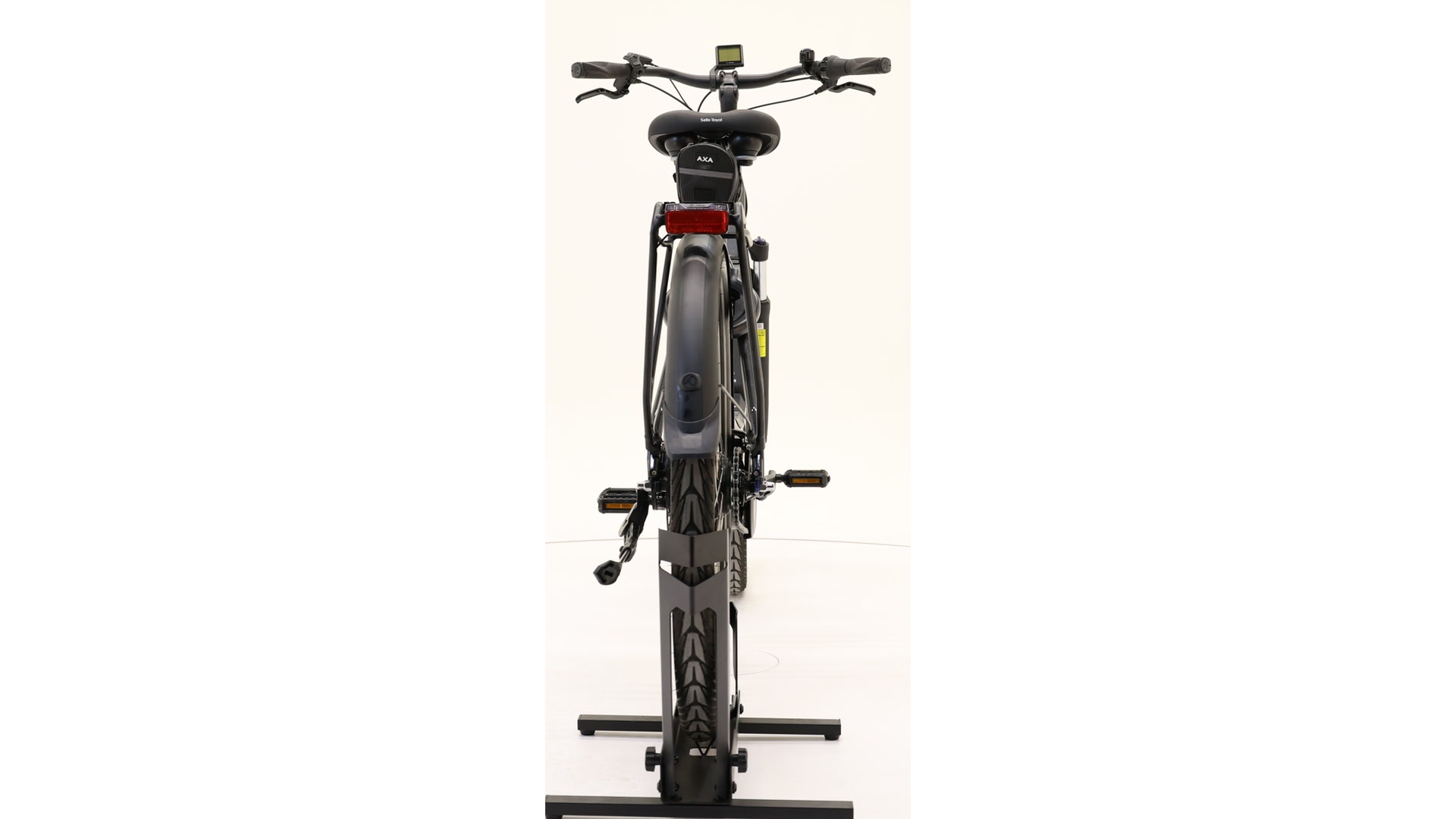

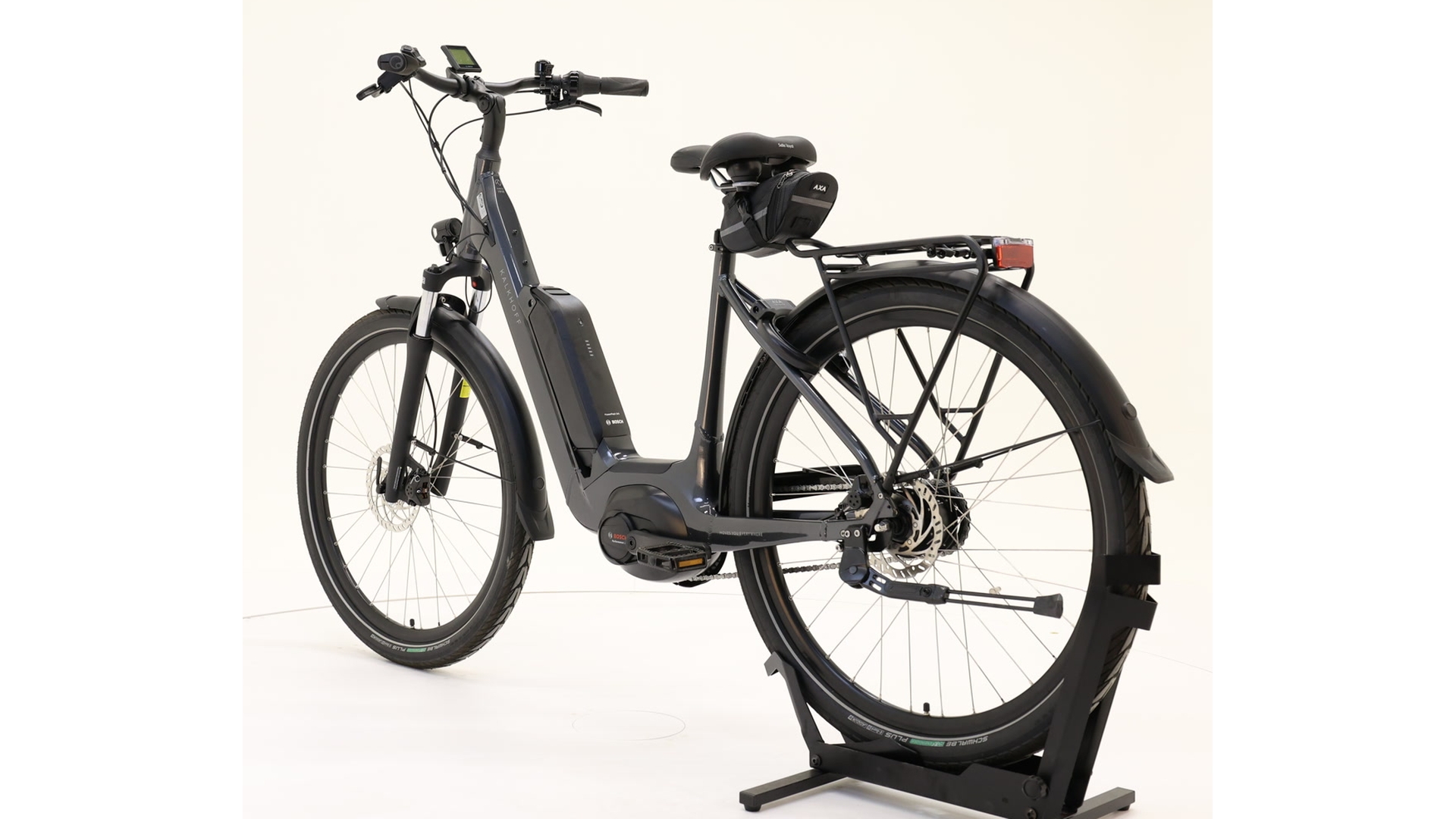

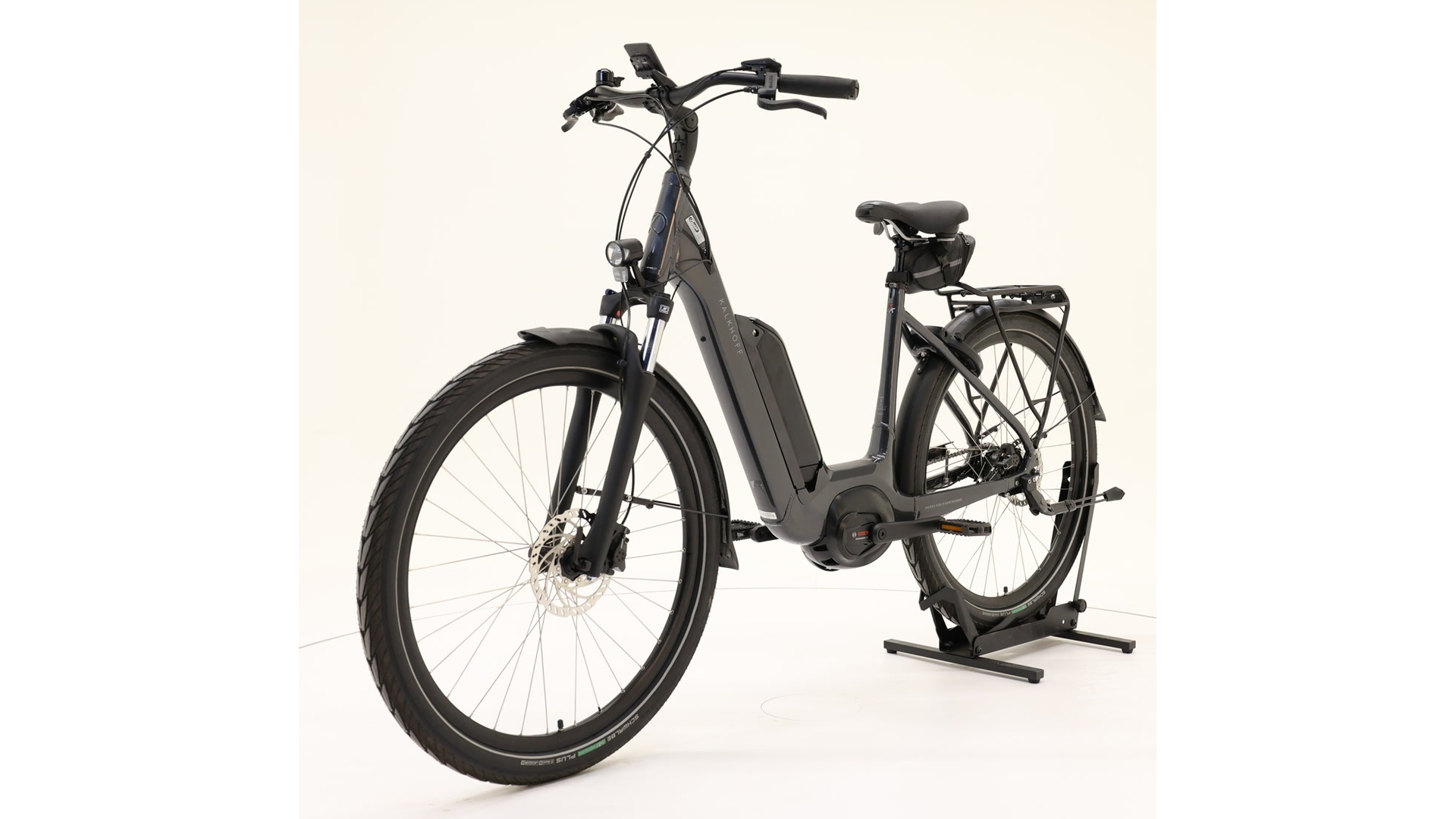

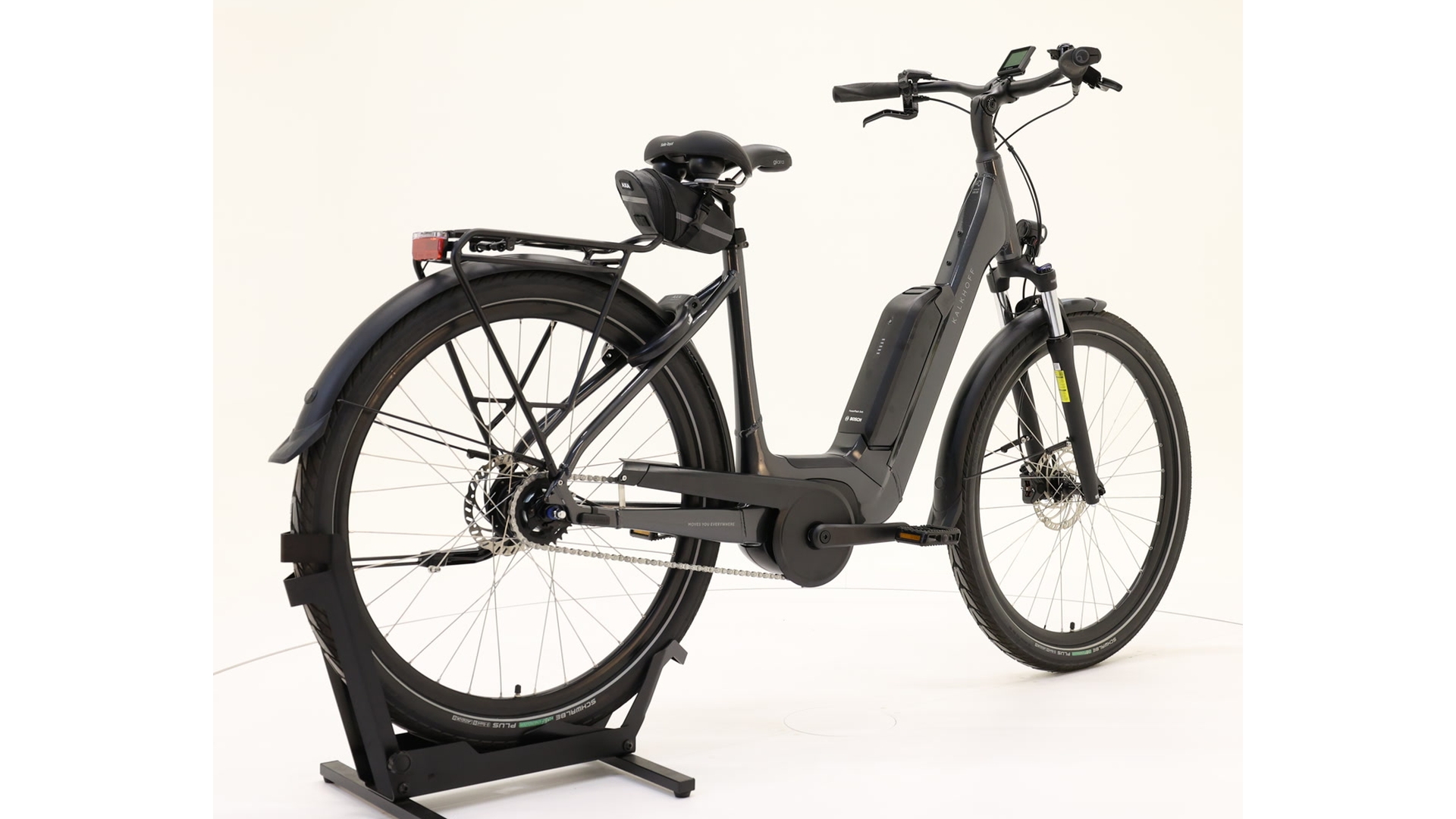

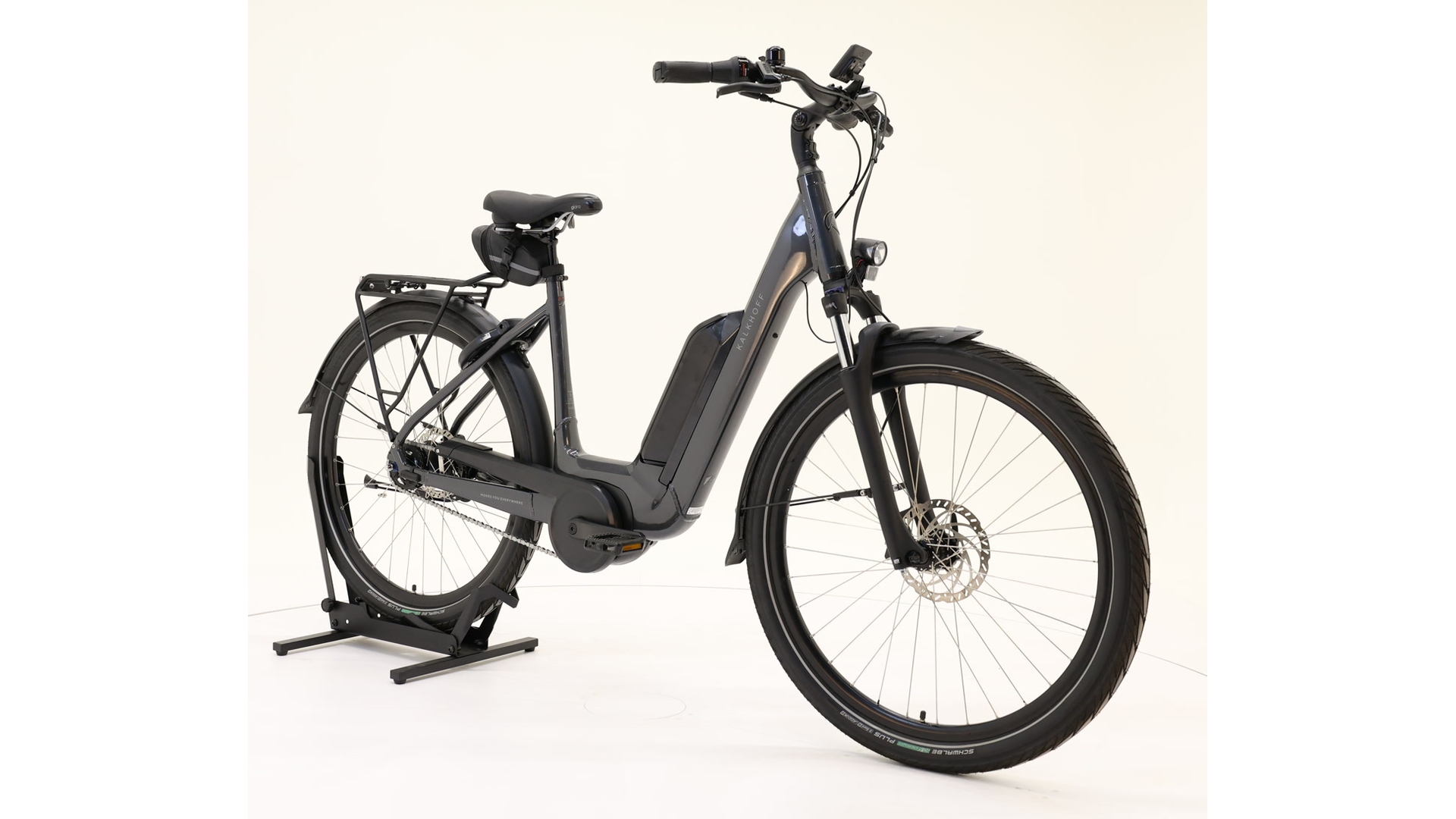

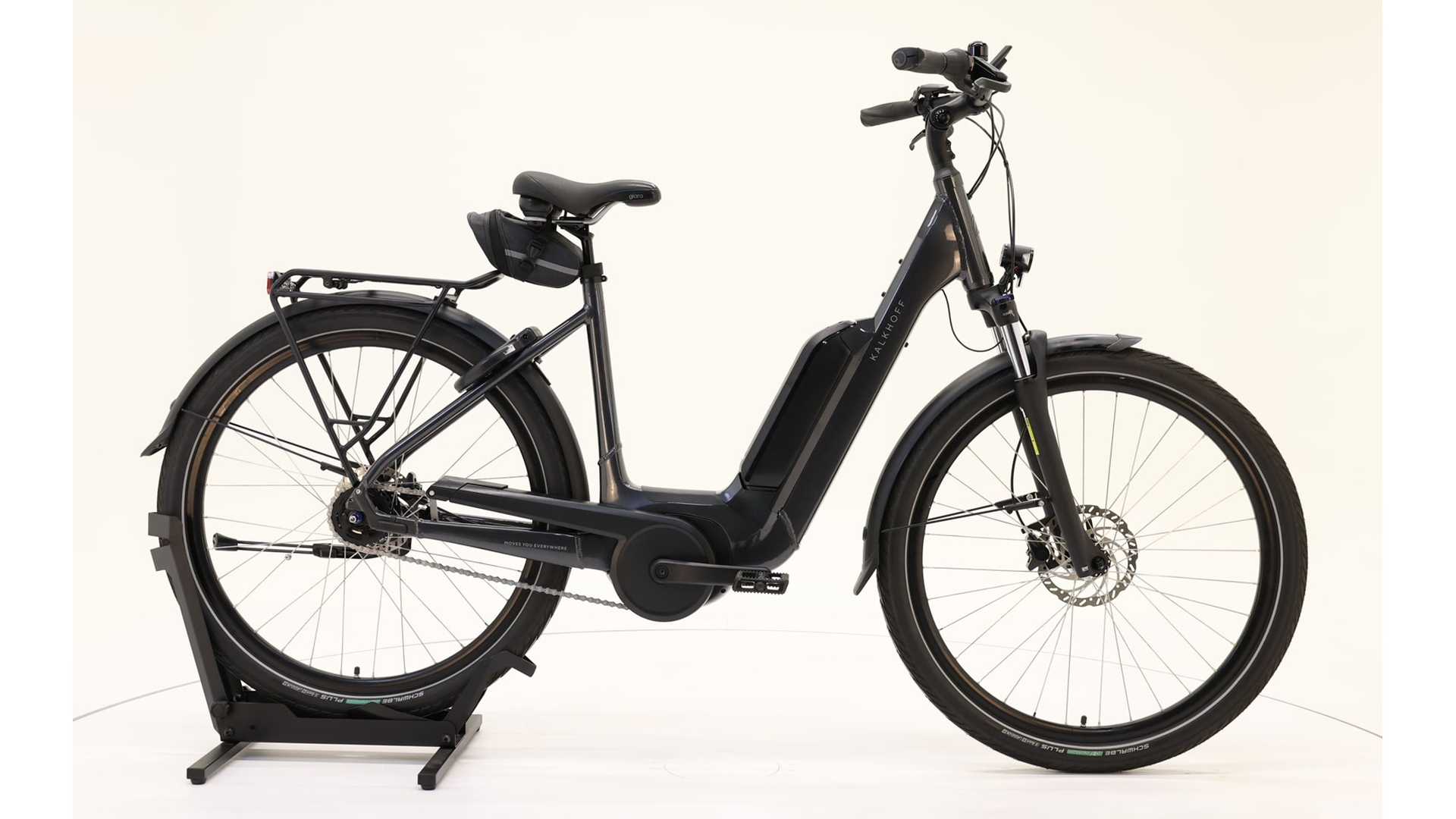

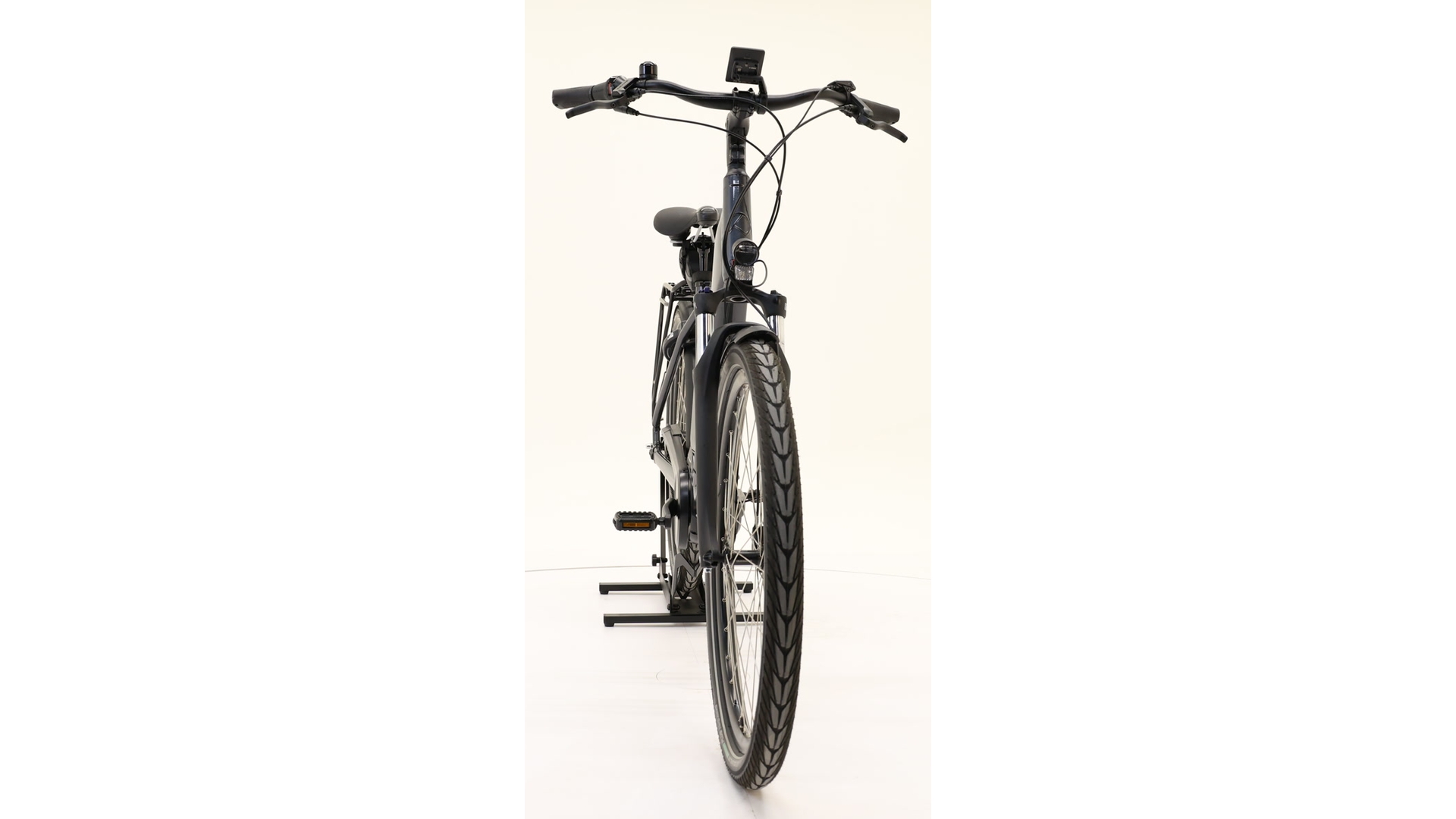

Kalkhoff Image XXL 625Wh used bike 28 inches, size 50

Welcome to the world of Kalkhoff!

Thank you for choosing a Kalkhoff e-bike – and for joining us in experiencing the mobility of tomorrow, today. Whether city, trekking or all-road, all our e-bikes have one thing in common: they get you to your destination reliably, comfortably and safely. To ensure you have the best possible experience with your new Kalkhoff e-bike, this booklet contains important safety information. Together with the operating instructions, which you can view digitally, you will find all the information you need to ride safely and carefree. Please read them carefully.

With this in mind, we wish you a safe journey and many unforgettable experiences with your new Kalkhoff e-bike.

Your Kalkhoff team

The safety information listed here refers to the operating instructions. In the operating instructions, you will find more detailed information about your new e-bike, its operation, assembly, care and maintenance.

The original general operating instructions with information on all other components are available at www.kalkhoff-bikes.com/ en_GB/manuals/bike/kalkhoff_general_manual_660926600.pdf

The original e-bike operating manual with information on the motor, display, control unit, battery and charger can be found at https://www.bosch-ebike.com/de/help-center#wss-manuals

Important safety information for your e-bike

Reading the safety information does not exempt you from the obligation to read and observe the operating instructions! Failure to observe the operating instructions can lead to dangerous riding situations, falls, accidents and damage to property.

In addition to the information in our operating instructions, please also observe the specifications of the component manufacturers >> see original operating instructions, General, Chapter 5. Component instructions.

I. Your specialist dealer

Only use the e-bike once your specialist dealer has adjusted it to your requirements and tightened all screws as specified. Ask your dealer to show you how to operate the e-bike.

Contact your specialist dealer if you are unable to carry out the work described in the instructions on your e-bike yourself, if you feel unsure or if you do not have the right tools.

You can find all specialist dealers in your region on our website at www.kalkhoff-bikes.com/de_de/haendlersuche/.

II. Our Customer Care

Please contact our Customer Care team if you have any questions about your e-bike and the operating instructions and your specialist dealer are unable to help you.

III. Before your first ride

Only use the e-bike if you are sure that it is working properly, all parts are fully functional and all screws are tightened to the correct torque.

Familiarise yourself with the markings on your e-bike. Do not remove the barcode sticker and type plate. They contain important information about your e-bike >> see original operating instructions, General, Chapter 10.4 Barcode sticker and Chapter 10.5 Type plate.

Only use the e-bike in accordance with our specifications. Otherwise, components may fail and you could be seriously injured.

Observe the restrictions of the specified usage class. You can find out which usage class your e-bike is approved for by referring to the graphic on the e-bike frame >> see original operating instructions, General, Chapter 10.7 Intended use.

Do not exceed the permissible total weight (total weight=e-bike weight + rider weight + load + trailer) >> see original operating instructions, General, 12. Permissible total weight.

Observe our specifications for transporting people and loads >> see original operating instructions, General, Chapter 31. Luggage.

Do not exceed the load capacity of the front and rear luggage racks. The maximum load capacity is engraved on the luggage racks >> see original operating instructions, General, Chapter 30. Luggage racks.

The installation of child seats on luggage carriers of e-bikes with a load capacity of less than 27 kg is not permitted. The use of child seats with the MIK HD system may be permitted on our MIK HD luggage carriers. If you have any questions in this regard, please consult your specialist dealer or the child seat manufacturer.

Do not make any changes to the drive system of the e-bike. If the cut-off speed exceeds 25 km/h and/or the speed of the push assist exceeds 6 km/h, your e-bike will be subject to registration and insurance requirements >> see original operating instructions, General, Chapter 7. Legal requirements for participation in road traffic.

Do not exceed the service life of the components.

Observe the legal regulations applicable in the respective country for the use of e-bikes on public roads and equip your e-bike in accordance with the legal requirements of the country in which you intend to ride >> see original operating instructions, General, Chapter 7. Legal requirements for participation in road traffic.

Observe the regulations of the legislator, transport companies and the operating instructions for e-bike transport. Remove the battery before transporting the e-bike >> see original operating instructions, General, Chapter 32. Transporting the bicycle.

Familiarise yourself with the operation of quick-release skewers. The quick-release skewers must be closed correctly. If you are unsure, ask your specialist dealer to show you how to operate them >> see original operating instructions, General, Chapter 27. Wheels and Chapter 17.1.2 Fastening with quick-release skewers.

The seat post must be inserted at least 10 cm deep into the seat tube. The minimum insertion depth of 10 cm also applies if the component instructions or the seat post itself specify lower minimum insertion depths.

First familiarise yourself with the riding and braking behaviour, the electric assistance modes and the push assist (if available), especially with different loads, wet conditions and loose ground >> see original operating instructions, General, Chapter 14. Before your first ride and >> original operating instructions, E-Bike, Chapter Drive Unit – Operation and Chapter Display – Push Assist.

If you have purchased an e-bike with disc brakes, make sure that the brakes have been bedded in before your first long ride. Bedding in the brakes serves to achieve optimum braking performance and minimise unpleasant noises.

IV. Before every ride >> see original operating instructions, General, Chapter 15, Before every ride.

Before every ride, check the following in particular:

Frame, fork, handlebar/stem unit, seat post, saddle and drive unit for possible damage,

the correct functioning of brakes, steering, drive unit and lighting,

the secure fit of the handlebars, stem, seat post, saddle, wheels, mudguards, quick-release skewers and pedals, as well as

the tyre pressure. This must not be too high or too low.

If your e-bike is damaged (e.g. bent components, cracks, scratches and colour changes in areas subject to high stress) or malfunctions, have it repaired by your specialist dealer and replace defective components before using it again.

V. After riding

Be careful not to burn yourself when touching heated components (e.g. brake discs, drive unit, headlight).

VI. Charging and using the battery >> see original operating instructions for e-bikes, chapter on batteries

Only use undamaged and unmodified batteries and chargers.

Observe the specifications for charging and using the battery, especially with regard to the ambient temperature and the location of the charging process.

VII. Cleaning >> see original operating instructions General 34. Cleaning the bicycle and its components

Do not clean the e-bike and its components with a high-pressure cleaner.

VIII. Assembly and adjustment work

Switch off the e-bike during assembly and adjustment work and remove the e-bike battery.

Observe the specified tightening torques (Nm) on the components and in the operating instructions. Use a torque wrench >> see original operating instructions, General, Chapter 13. Tightening torques for screw connections.

Never clamp the saddle in the bends of the saddle frame, but always in the straight section. Only move the saddle within the straight section and within the markings. Turn the clamping screws straight and completely into the nuts >> see original operating instructions, General, Chapter 18. Adjusting the saddle position and angle.

Contact your specialist dealer for information on adjusting the spring elements.

Do not open the electronic components.

Only use original spare parts when replacing components and wear parts. In addition to original spare parts, compatible parts expressly approved by us may also be used. Your specialist dealer can help you with any questions you may have.

IX. Maintenance intervals >> see original operating instructions General 39. Maintenance intervals

Have the e-bike checked and serviced regularly by a specialist dealer in accordance with our specifications to avoid hazards (e.g. due to wear and tear).

The first maintenance interval should take place after 100 kilometres or six weeks from the date of purchase at the latest. Please have subsequent maintenance carried out every 1000 kilometres or annually.

Replace the seat post after 14,000 kilometres (maintenance interval 8), unless the seat post manufacturer specifies a different interval in their instructions. The component must be replaced regardless of the material and whether there are any visible defects, cracks or damage on the outside. If the seat post is not replaced in good time, it may break and you could have a serious fall.

If your dealer has not provided you with a service booklet, you can download and print one yourself from our website: www.kalkhoff-bikes.com/de_de/manuals/service-booklet/sb-deutsch.pdf
