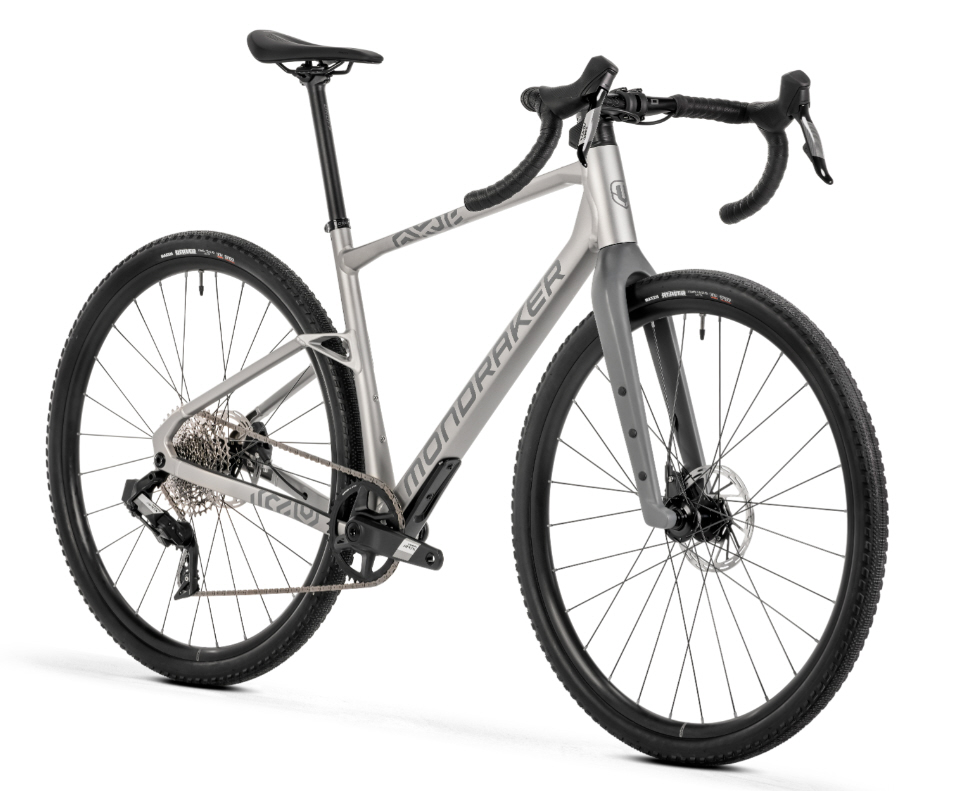

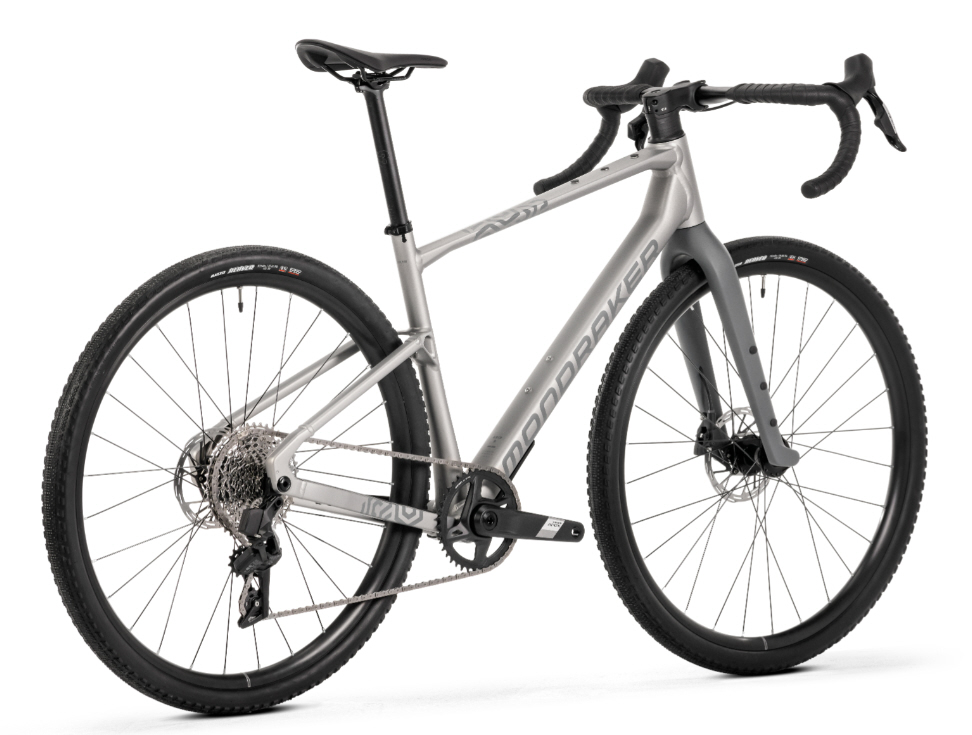

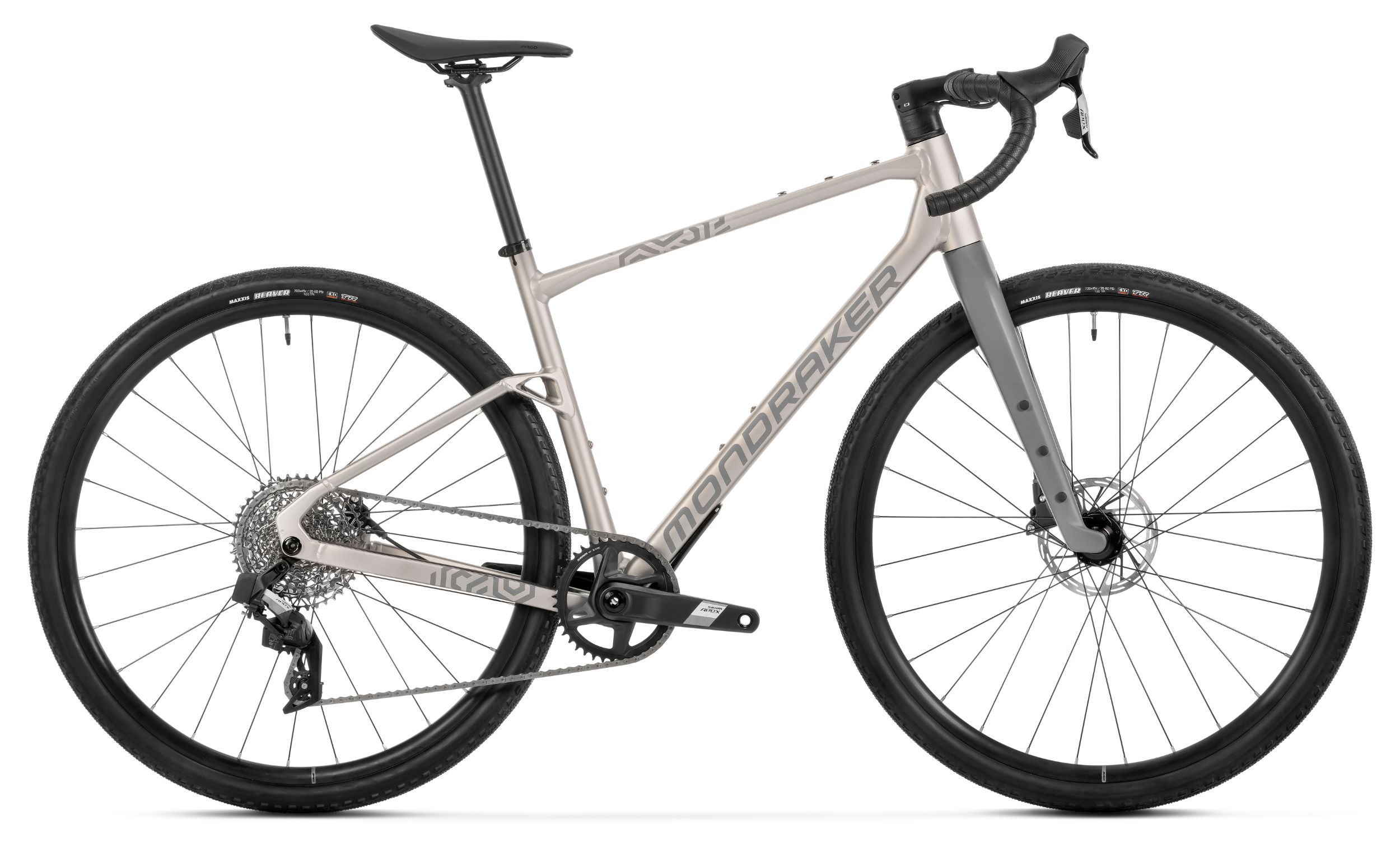

Mondraker Arid R
-
Available immediately, with you in 9 - 11 working days
-
Fast delivery!
-
Convenient financing with easyCredit instalment purchase
-
100,000+ satisfied customers
-
Pay only after 30 days further information
| Frame | Arid Alloy, T47 bottom bracket, tapered head tube, internally routed cables and hoses (HHG), 12 x 142 mm rear axle, designed for single-chainring drivetrains, compatible with flat-mount brakes. |
| Material | Aluminium |
| Weight | approx. 10.6 kg |
| Fork | Stealth Air Carbon, tapered head tube, HHG, integrated flat-mount fork |
| Manufacturer shift group | Sram |
| Rear derailleur | SRAM Apex XPLR AXS D1, 12-speed |
| Number of gears | 1 x 12 |
| Crank handle | SRAM Apex 1 Wide, size S: 170 mm, size M: 170 mm, size ML: 172.5 mm, size L: 172.5 mm, size XL: 175 mm, chainline 47.5 |
| Cassette | SRAM PG-1231, 11-44, 12-speed |
| Pedals included in the scope of delivery | nein |
| Gear lever | SRAM Apex AXS D1, 12-speed |
| Rims | Mavic Allroad Disc, UST, 25 mm internal width, hookless, Infinity hubs, 24 spokes at the front, 28 spokes at the rear |
| Hubs | Front: Mavic, 12 x 100 mm, IS 6-hole, Rear: Mavic Infinity hub, 12 x 142 mm, XD ID360 ratchet freehub system, IS 6-hole, HG freehub |
| Wheel size | 28 Zoll |
| Tyres | Maxxis Reaver 700 x 45, Tubeless Ready, dual rubber compound, EXO Protection, 120 TPI, folding bead |
| Brakes | SRAM Apex AXS, two-piece brake caliper, 160 mm Paceline brake disc for Centre Lock, organic brake pads with steel backing plate |
| Handlebars | ONOFF S3 GR 16° handlebar flare. Width: Size S: 440 mm, Size M: 440 mm, Size ML: 460 mm, Size L: 460 mm, Size XL: 460 mm |
| Seat post | ONOFF S9 Carbon 0-R, diameter 27.2 mm, length 400 mm |
| Saddle | FIZIK Terra Argo X5 140 mm |
| Stem | ONOFF Semi-Integrated 6061-T6 aluminium + CNC, handlebar diameter: 31.8 mm, angle: -7º, length: Size S: 60 mm, Size M: 70 mm, Size ML: 70 mm, Size L: 80 mm, Size XL: 90 mm |
| Engine | Mahle X20 drive 23 Nm |
| Display | Pulsar One Wireless |
| Battery | Mahle X20 IX350Wh |
The Arid R comes with SRAM drivetrain and SRAM brakes. It features the gravel-specific SRAM APX XPLR groupset with a 40-tooth chainring and an 11-44 12-speed cassette. The Mavic Allroad Disc 25mm wheels are fitted with Maxxis 45mm tyres for maximum grip and low rolling resistance.
This bike arrives (almost) fully assembled. All you need to do is straighten the handlebars and fit the pedals.
Log in
Safety information for bicycles, e-bikes and children’s bikes
Safe and long-term use of bicycles, e-bikes and children’s bikes requires thorough checks, regular maintenance and proper handling. These guidelines provide practical advice on safe use and should be followed in conjunction with the manufacturer’s instruction manual.
1. Safety checks before riding
The following checks should be carried out before every ride :
Brakes and steering : Test that the brakes are working properly and ensure that the steering is smooth and stable.
Tyres and wheels : Check that the tyre pressure is correct and that the wheels and quick-release mechanisms are securely fastened.
Fittings : Check that attachments such as mudguards, luggage racks, the saddle and pedals are securely fastened.
Accessories and loading : Ensure that luggage and accessories are correctly fitted and that the maximum load capacity is not exceeded.
2. Technical safety and permitted use
Component inspection: Regularly check safety-critical components such as the frame, fork, handlebars, seat post and brakes for damage. Do not use the bicycle if there are any visible defects.
Maximum load capacity : Observe the weight restrictions for the total weight (bicycle, rider, load and, where applicable, trailer). You will find these details in the manufacturer’s information.
Proper use : Only use the bicycle or e-bike within the intended usage category. Improper use poses safety risks.
Accessories and modifications : Only use approved accessories such as child seats or trailers, and do not carry out any unauthorised modifications, particularly to the drive system of e-bikes.
3. Special notes for e-bikes
Battery and charging:
Only use batteries and chargers approved by the manufacturer.
Charge the battery in safe locations and in accordance with the temperature specifications.
Remove the battery before transporting the e-bike.
Electric assistance:
Familiarise yourself with the assistance modes and the push assist function. Test the e-bike first in a safe environment, particularly when carrying different loads or on difficult terrain.
Running-in disc brakes:
Run in new brakes before your first long ride to ensure optimum braking performance.
Transport guidelines:
When transporting the bike, follow the manufacturer’s instructions and comply with legal regulations.
Component manuals:
For detailed information on e-bike systems from drive component manufacturers, please see here:
For Fazua motors:
https://fazua.com/de/support/help-center/knowledge-base/fazua-app/
For Bosch motors:
https://help.bosch-ebike.com/de/help-center#wss-manuals
For Shimano motors:
https://lifestylebike.shimano.com/de/support/
4. Special safety rules for children’s bicycles
Duty of supervision: Children must only use bicycles under the supervision of a responsible adult.
Suitable size and equipment : Ensure that the bicycle is age-appropriate and that all safety features (e.g. brakes, reflectors, chain guard) are in good working order.
Loading and accessories : Securely attach child seats and luggage racks, and take care not to exceed the load capacity.
5. Care and maintenance
Cleaning : Use a soft cloth and mild cleaning products. Avoid high-pressure washers to prevent damage to electrical and mechanical components.
Regular inspections : Schedule regular servicing with a qualified specialist workshop to check for wear and tear and ensure safety.
Spare parts : Only use original or approved spare parts to maintain the bike’s functionality.
6. What to do after your ride
Document any damage : If there is any visible damage or malfunction, do not continue to use the bicycle. Have it checked by a specialist workshop.
Avoid hot components : Avoid contact with hot components such as brake discs or drive units to prevent burns.
Final notes
This safety information provides you with a comprehensive overview of the safe use of bicycles, e-bikes and children’s bikes. Always follow the manufacturer’s instruction manual and contact a specialist retailer if you have any questions. Safe and responsible use not only ensures your safety but also extends the service life of your bicycle.
