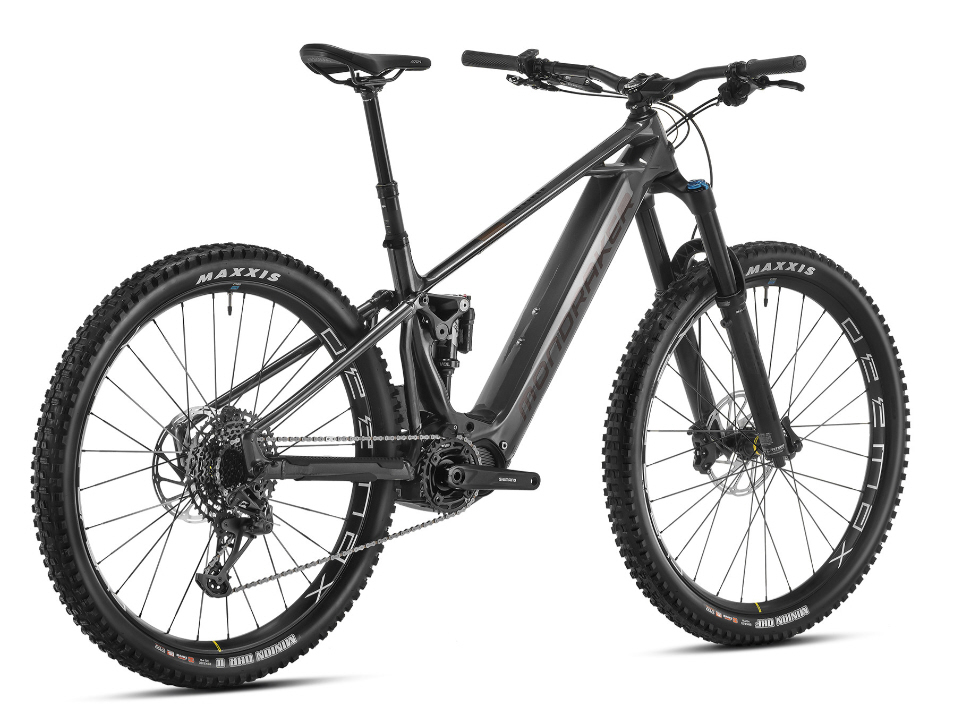

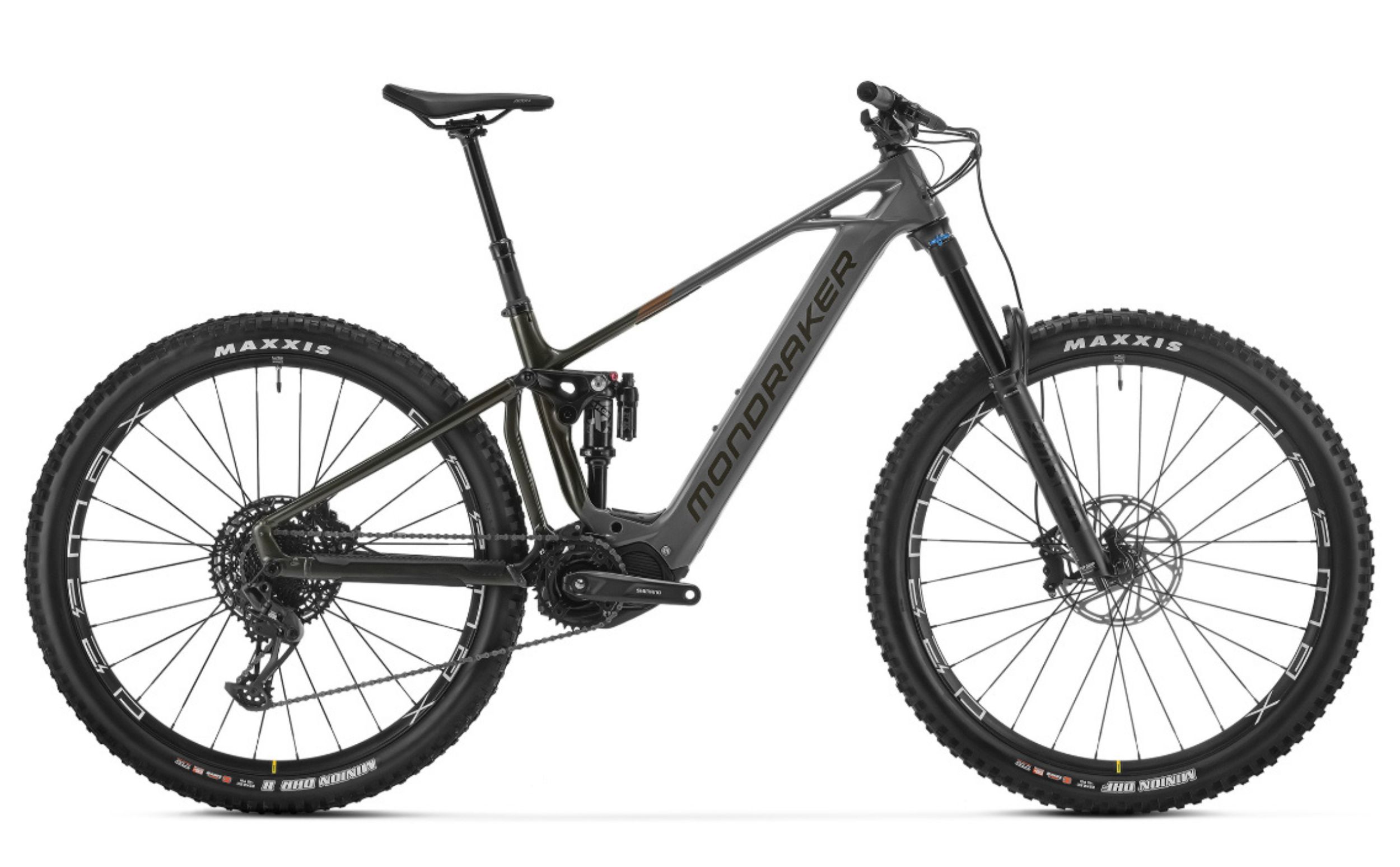

Mondraker Crusher Shimano STEPS EP801 720 Wh
-
Currently not available
-
Fast delivery!
-
Convenient financing with easyCredit instalment purchase
-
Purchase on account
-
Pay only after 30 days further information
The entry-level model comes with a FOX 38 29 Float FIT GRIP EVOL Performance fork, SRAM GX EAGLE drivetrain, SRAM DB8 brakes, an ONOFF Pija dropper post (with a stroke between 125mm and 200mm depending on the frame size) and Maxxis Minion DHF/DHR II 2.6" EXO+ tyres. The colour combination is called 'Nimbus Grey - Vortex Grey - Bronze'.
This bike arrives (almost) fully assembled. All you have to do is straighten the handlebars and attach the pedals.
| Frame | Crusher Stealth Air Carbon front triangle, Stealth Alloy rear triangle, e-bike-optimised Zero Suspension System, 150 mm travel, Forward Geometry, internally integrated, non-removable battery, 12 x 148 mm Boost rear axle, tapered head tube, one-piece upper rocker monoblock, internally routed cables (HHG), sealed "MAX-Capacity" bearings, extra-large 17 mm axles, speed sensor integrated in the dropout, exclusive plastic motor covers. |
| Frame shape | Mountainbike |
| Material | Carbon |
| Gender | Unisex |
| Weight | approx. 24.6 kg |
| permissible total weight | 150 kg |
| Fork | Fox 38 29 Float FIT GRIP EVOL Performance, 160 mm, adapted to e-bikes, tapered head tube, 15 x 110 mm Boost axle, 44 mm offset. Settings: 3 positions with micro-adjustable compression damping, low-speed rebound, air preload |
| Damper | Fox Float-X LV Performance, 205 x 65 mm. Settings: Compression via 2-way lever, low-speed rebound, air preload. Trunnion mount at the top, lower bushings: 25 x 10 mm |
| Manufacturer shift group | Sram |
| Rear derailleur | SRAM GX Eagle, Roller Bearing Clutch Type 3, Cage Lock, 1x12-speed, X-Actuation 1:1 |
| Number of gears | 1 x 12 |
| Circuit type | Kettenschaltung |
| Crank handle | Shimano Steps FC-EM600 e-bike, 165 mm |
| Cassette | SRAM PG-1210, 11-50T, 12-speed |
| Drive type | Kettenantrieb |
| Freewheel/coaster | Freilauf |
| Pedals included in the scope of delivery | nein |
| Rims | Mavic E-Deemax 29, 30 mm inner width, welded, PFP, tubeless ready, 28 spokes |
| Hubs | rear: Mavic, Boost 12 x 148 mm, ID360 freehub system with spur gearing, IS 6-hole, HG freehub, front: Mavic, Mavic, Boost 15 x 110 mm, IS 6-hole |
| Wheel size | 29 Zoll |
| Tyres | rear: Maxxis Minion DHR II 29 x 2.6, Tubeless Ready, 3C MaxxTerra rubber compound, EXO+ Protection, 120 TPI, folding bead, front: Maxxis Minion DHF 29 x 2.6, Tubeless Ready, 3C MaxxTerra rubber compound, EXO+ Protection, 120 TPI, folding bead |
| Motor manufacturer | Shimano |
| Engine | Shimano STEPS EP801 |
| max. torque | 85 Nm |
| Reach | up to 150 km |
| Support for | up to 25 km/h |
| Battery | Simplo internal 720 Wh G3 |
| Display | Shimano EN600 |
| Brakes | SRAM DB8, 4-piston brake caliper, one-piece 200 mm IS 6-hole centreline brake disc, organic brake pads with steel backing plate |
| Handlebars | ONOFF Sulfur 1.0, double butted 6061 aluminium, rise: 20 mm, width: 800 mm, 9° horizontal crank/backsweep, 5° vertical crank/upsweep, 31.8 mm handlebar diameter |
| Seat post | ONOFF Pija telescopic post, internal cable routing, diameter 31.6 mm, 1 remote lever with bearing, size S: 405 x 95-125 mm, size M: 458 x 120-150 mm, size L: 498 x 140-170 mm, size XL: 558 x 170-200 mm |
| Saddle | FIZIK Terra Aidon X5 145 mm |
| Stem | ONOFF Sulfur FG 30 mm 0°, forged 6061 aluminium, 31.8 mm handlebar diameter |
| Accessories/Miscellaneous | Charger included in the scope of delivery |
Log in
Safety information for bicycles, e-bikes and children's bicycles
The safe and long-term use of bicycles, e-bikes and children's bicycles requires careful checks, regular maintenance and proper handling. These instructions provide you with practical recommendations for safe use and should be followed in conjunction with the operating instructions of the respective manufacturer.
1. Safety checks before riding
The following checks should be carried out before every journey:
Brakes and steering: Test the functionality of the brakes and ensure that the steering is smooth and stable.
Tyres and wheels: Check that the tyres are correctly inflated and that the wheels and quick-release skewers are secure.
Fastenings: Check that attachments such as mudguards, pannier racks, saddle and pedals are securely fastened.
Accessories and load: Ensure that luggage and accessories are correctly fitted and that the permitted load capacity is not exceeded.
2. Technical safety and authorised use
Component inspection: Regularly inspect safety-relevant components such as the frame, fork, handlebars, seat post and brakes for damage. Do not use the bike if there are visible defects.
Maximum load capacity: Observe the weight limits for the total weight (bike, rider, payload and trailer if applicable). The details can be found in the manufacturer's information.
Proper use: Only use the bike or e-bike within the scope of the intended use category. Improper use leads to safety risks.
Accessories and modifications: Only use approved accessories such as child seats or trailers and do not make any unauthorised modifications, especially to the drive system of e-bikes.
3. Special instructions for e-bikes
Battery and charging process:
Only use batteries and chargers approved by the manufacturer.
Charge the battery in a safe place and in accordance with the temperature specifications.
Remove the battery before transporting the e-bike.
Electric assistance:
Familiarise yourself with the assistance modes and the pushing aid. Test the e-bike in a safe environment first, especially with different loads or difficult ground conditions.
Running in the disc brakes:
Run in new brakes before your first big ride to ensure optimum braking performance.
Transport specifications:
Observe the manufacturer's instructions and legal regulations when transporting.
Component manuals:
For detailed information on e-bike systems from drive component manufacturers, find help here:
For Fazua motors:
https://fazua.com/de/support/help-center/knowledge-base/fazua-app/
For Bosch motors:
https://help.bosch-ebike.com/de/help-center#wss-manuals
For Shimano motors:
https://lifestylebike.shimano.com/de/support/
4. Special safety rules for children's bikes
Duty of supervision: Children may only use bicycles under the supervision of a responsible person.
Appropriate size and equipment: Make sure that the bike is age-appropriate and that all safety devices (e.g. brakes, reflectors, chain guard) are intact.
Loading and accessories: Attach child seats and pannier racks securely and ensure that the load capacity is not exceeded.
5. Care and maintenance
Cleaning: Use a soft cloth and mild cleaning agents. Avoid high-pressure cleaners to prevent damage to electrical and mechanical components.
Regular inspections: Schedule regular maintenance at a qualified specialist company to check for wear and ensure safety.
Spare parts: Only use original or approved spare parts to maintain the functionality of the bike.
6. Behaviour after the ride
Documenting damage: In the event of recognisable damage or malfunctions, the bike must not be used any further. Have it checked by a specialised company.
Avoid hot components: Avoid contact with heated components such as brake discs or drive units to prevent burns.
Final notes
This safety information provides you with a comprehensive overview for the safe use of bicycles, e-bikes and children's bicycles. Always observe the operating instructions of the respective manufacturer and contact a specialist dealer if you have any questions. Safe and responsible handling not only ensures your safety, but also extends the service life of your bike.
