Dusty

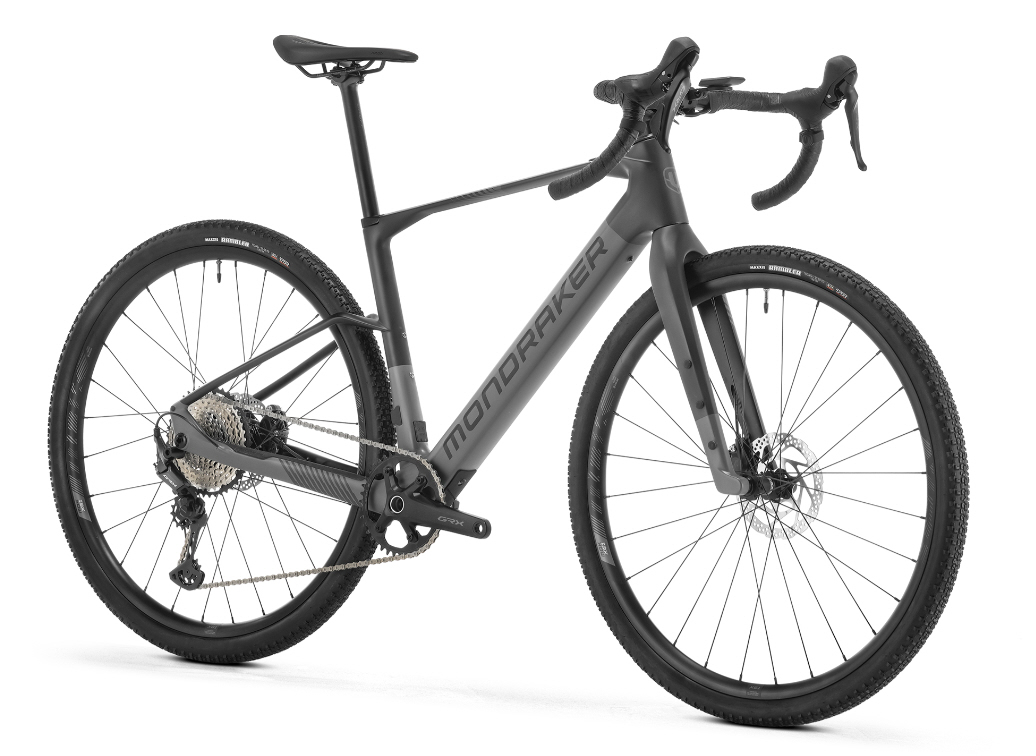

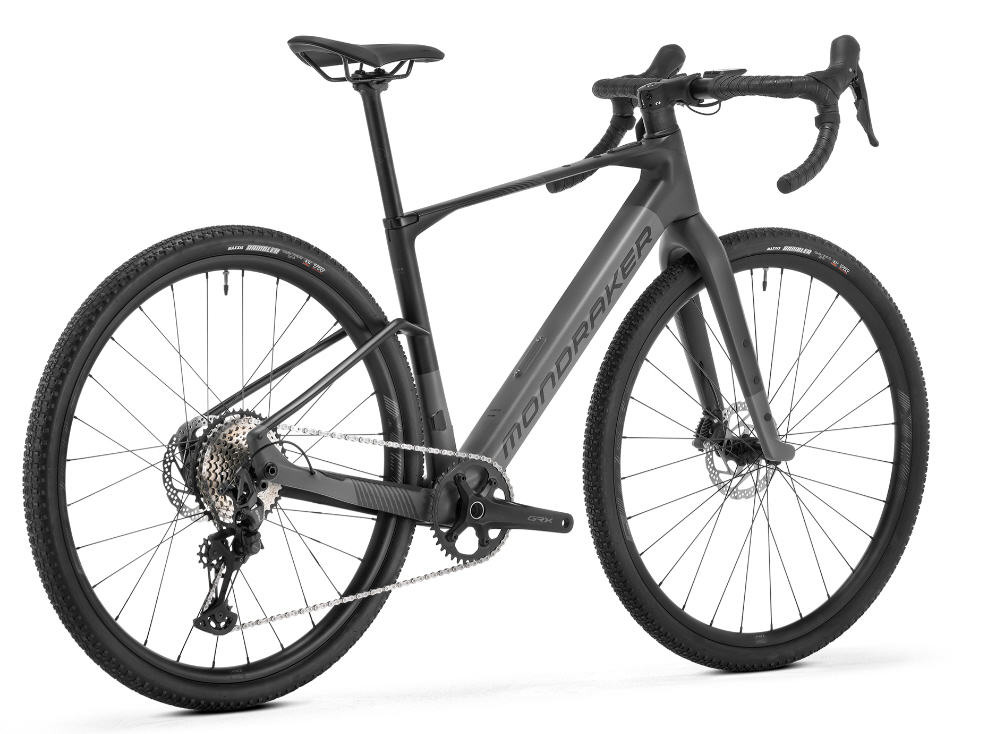

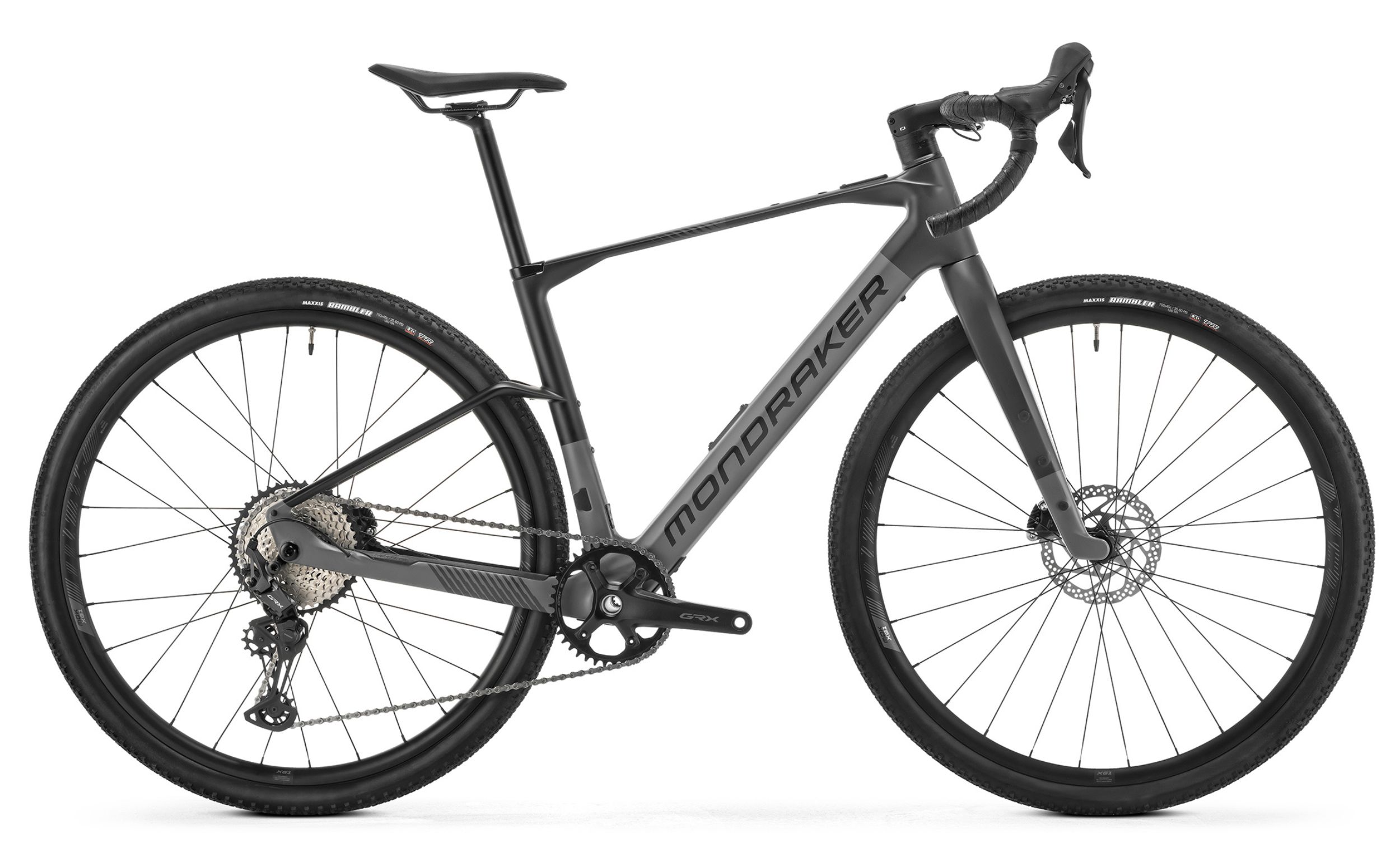

The frame is made from a high-end carbon fibre STEALTH AIR CARBON and comes with an innovative geometry adapted to gravel bikes. A long reach is combined with a slack 70 degree head angle and a compact rear triangle with 425mm chainstays. The chainstay design provides confidence, comfort and security for long rides on any terrain. Yes, Mondraker is synonymous with mountain bikes. But from now on it is also synonymous with gravel.
The DUSTY is made for short, intensive training rides as well as for adventures into the unknown, packed with the most necessary equipment without knowing exactly where you are going and for how long. Almost unlimited range, countless mounting points for accessories and bags, plus a geometry that inspires self-confidence leave the choice of route and its difficulty entirely on the rider's shoulders.
The hub motor delivers 23 Newton metres directly to the rear wheel. If you compare this with a mid-motor that is otherwise often used, it delivers roughly the same power as a motor with 55 Newton metres.
This bike arrives (almost) fully assembled. All you have to do is straighten the handlebars and attach the pedals.
| Frame | E-Gravel Stealth Air Carbon, 386 EVO Pressfit bottom bracket, tapered head tube, internally routed cables (HHG), internally integrated, non-removable battery, 12 x 142 mm rear axle, designed for single or double drivetrains, compatible with flat-mount brakes, speed sensor integrated in the dropout. |
| Material | Carbon |
| Weight | approx. 13.9 kg |
| Fork | Stealth Air Carbon, tapered head tube, HHG, integrated flat-mount fork |
| Manufacturer shift group | Shimano |
| Rear derailleur | Shimano GRX RX-822-GS, 12-speed |
| Number of gears | 1 x 12 |
| Crank handle | Shimano GRX RX-610, size S: 170 mm, size M: 170 mm, size ML: 172.5 mm, size L: 172.5 mm, size XL: 175 mm, chainline 49.7 |
| Cassette | Shimano SLX M7100, Hyperglide+, 10-45, 12-speed |
| Pedals included in the scope of delivery | nein |
| Gear lever | Shimano GRX RX-610 Dual Control, aluminium levers |
| Rims | MDK-XG1, 25 mm inner width, tubeless ready, 28 spokes |
| Hubs | front: Novatec D041, Boost 12 x 100 mm, sealed bearings, IS 6-hole, rear: Mahle X20 Drive Unit, MS freehub |
| Wheel size | 28 Zoll |
| Tyres | Maxxis Rambler 700 x 45, tubeless ready, dual rubber compound, EXO Protection, 120 TPI, folding bead |
| Brakes | Shimano GRX RX-610, RX-400 brake caliper, RT56 IS 6-hole brake disc, synthetic resin brake pad |
| Handlebars | ONOFF S3 GR 16° handlebar flare. Widths size S: 440 mm, size M: 440 mm, size L: 460 mm, size XL: 460 mm |
| Seat post | ONOFF S3 0-R, diameter 31.6 mm, length 400 mm |
| Saddle | FIZIK Terra Argo X7 150 mm |
| Stem | ONOFF S3 GR 6061-T6 aluminium, 31.8 mm handlebar diameter, angle: -7°, length: size S: 60 mm, size M: 70 mm, size L: 80 mm, size XL: 90 mm |
| Engine | Mahle X20 drive 23 Nm |
| Display | Pulsar One Wireless |
| Battery | Mahle X20 IX350Wh |
Log in
Safety information for bicycles, e-bikes and children's bicycles
The safe and long-term use of bicycles, e-bikes and children's bicycles requires careful checks, regular maintenance and proper handling. These instructions provide you with practical recommendations for safe use and should be followed in conjunction with the operating instructions of the respective manufacturer.
1. Safety checks before riding
The following checks should be carried out before every journey:
Brakes and steering: Test the functionality of the brakes and ensure that the steering is smooth and stable.
Tyres and wheels: Check that the tyres are correctly inflated and that the wheels and quick-release skewers are secure.
Fastenings: Check that attachments such as mudguards, pannier racks, saddle and pedals are securely fastened.
Accessories and load: Ensure that luggage and accessories are correctly fitted and that the permitted load capacity is not exceeded.
2. Technical safety and authorised use
Component inspection: Regularly inspect safety-relevant components such as the frame, fork, handlebars, seat post and brakes for damage. Do not use the bike if there are visible defects.
Maximum load capacity: Observe the weight limits for the total weight (bike, rider, payload and trailer if applicable). The details can be found in the manufacturer's information.
Proper use: Only use the bike or e-bike within the scope of the intended use category. Improper use leads to safety risks.
Accessories and modifications: Only use approved accessories such as child seats or trailers and do not make any unauthorised modifications, especially to the drive system of e-bikes.
3. Special instructions for e-bikes
Battery and charging process:
Only use batteries and chargers approved by the manufacturer.
Charge the battery in a safe place and in accordance with the temperature specifications.
Remove the battery before transporting the e-bike.
Electric assistance:
Familiarise yourself with the assistance modes and the pushing aid. Test the e-bike in a safe environment first, especially with different loads or difficult ground conditions.
Running in the disc brakes:
Run in new brakes before your first big ride to ensure optimum braking performance.
Transport specifications:
Observe the manufacturer's instructions and legal regulations when transporting.
Component manuals:
For detailed information on e-bike systems from drive component manufacturers, find help here:
For Fazua motors:
https://fazua.com/de/support/help-center/knowledge-base/fazua-app/
For Bosch motors:
https://help.bosch-ebike.com/de/help-center#wss-manuals
For Shimano motors:
https://lifestylebike.shimano.com/de/support/
4. Special safety rules for children's bikes
Duty of supervision: Children may only use bicycles under the supervision of a responsible person.
Appropriate size and equipment: Make sure that the bike is age-appropriate and that all safety devices (e.g. brakes, reflectors, chain guard) are intact.
Loading and accessories: Attach child seats and pannier racks securely and ensure that the load capacity is not exceeded.
5. Care and maintenance
Cleaning: Use a soft cloth and mild cleaning agents. Avoid high-pressure cleaners to prevent damage to electrical and mechanical components.
Regular inspections: Schedule regular maintenance at a qualified specialist company to check for wear and ensure safety.
Spare parts: Only use original or approved spare parts to maintain the functionality of the bike.
6. Behaviour after the ride
Documenting damage: In the event of recognisable damage or malfunctions, the bike must not be used any further. Have it checked by a specialised company.
Avoid hot components: Avoid contact with heated components such as brake discs or drive units to prevent burns.
Final notes
This safety information provides you with a comprehensive overview for the safe use of bicycles, e-bikes and children's bicycles. Always follow the operating instructions of the respective manufacturer and contact a specialist dealer if you have any questions. Safe and responsible handling not only ensures your safety, but also extends the service life of your bike.
