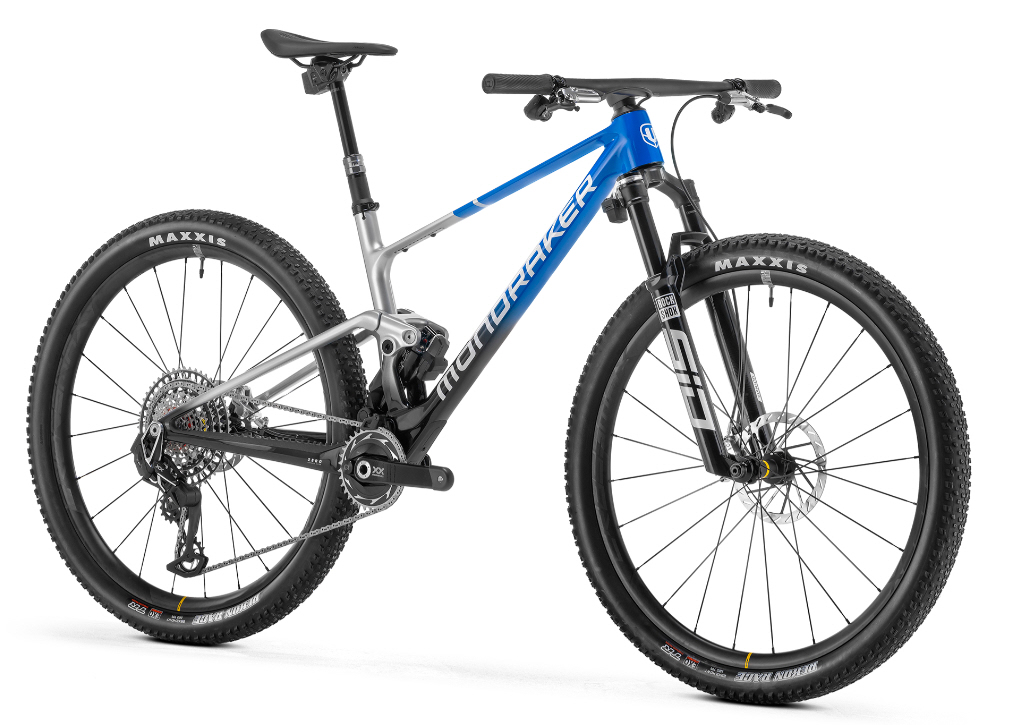

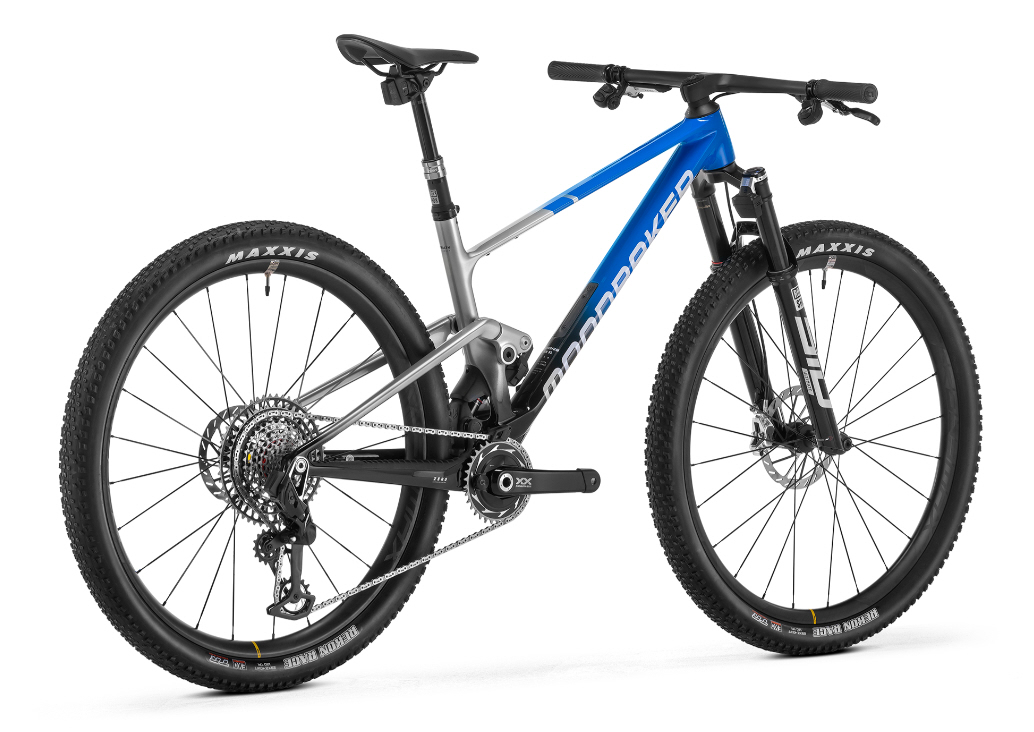

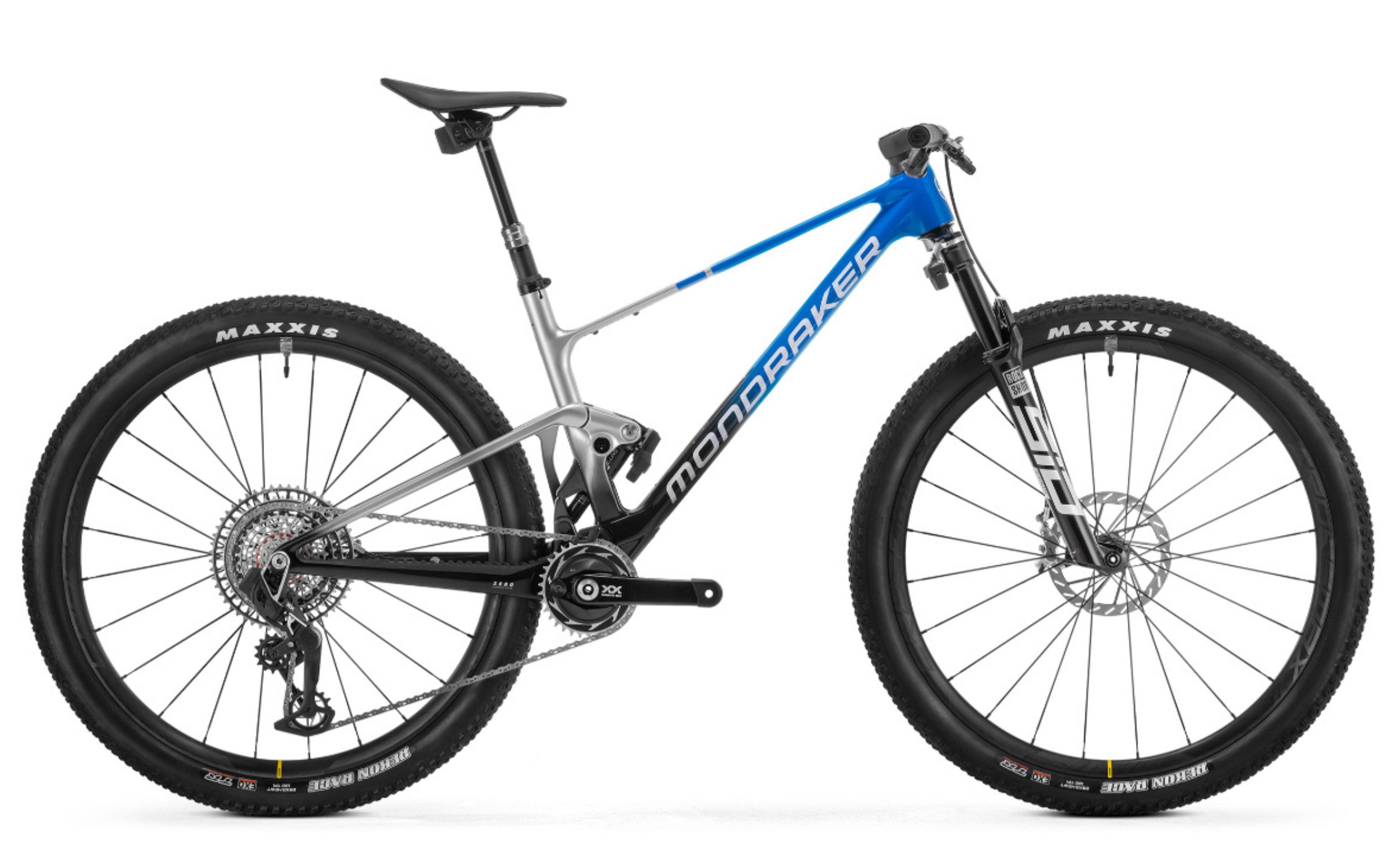

Mondraker F-Podium RR SL Carbon 29

Item number: 010.25047

€12,999.00

Prices incl. VAT plus shipping costs

Colour: Carrera Blue

Frame size: L

Currently not available
Fast delivery!
Convenient financing with easyCredit instalment purchase
Purchase on account
Pay only after 30 days further information

Weight

11.8 kg

Spring travel

110 mm

Material

Carbon

Are you looking for a fast bike with responsive suspension and geometry perfectly optimised for XC use?

Then the F-PODIUM is perfect for you! Thanks to the ZERO SUSPENSION SYSTEM, FORWARD GEOMETRY and its STEALTH AIR FULL CARBON frame, the F-PODIUM makes every XC event a breeze.

110mm rear suspension travel in combination with a 120mm suspension fork keep the bikes firmly on the ground.

Together with the Mavic Crossmax wheels and the 2.35" Maxxis Rekon Race tyres, you can enjoy both the most demanding climbs and the steepest descents in complete safety. An exclusive bike at a price that won't leave you poor.

This bike arrives (almost) fully assembled. All you have to do is straighten the handlebars and attach the pedals.

Frame	F-Podium 29 Stealth Air Full Carbon, XCO-optimised Zero Suspension System, 110 mm travel, XC Forward Geometry, upper rocker carbon monoblock, BSA bottom bracket, tapered head tube, internally routed cables and hoses (HHG), specific design for single drivetrains, 12 x 148 mm Boost rear axle, splash guard for shock, post mount rear brake mount.
Material	Carbon
Gender	Unisex
Weight	approx. 11.4 kg
Fork	RockShox SID Ultimate Flight Attendant, 120 mm, Debon Air+, tapered head tube, 15 x 110 mm Boost axle, 35 mm tapered aluminium stanchions, 44 mm offset. Settings: External rebound adjustment, electronic 3-position compression adjustment (Open/Pedal/Lock)
Damper	RockShox SID Luxe Ultimate Flight Attendant, 165 x 45 mm. Settings: External rebound adjustment, electronic 3-position compression adjustment (Open/Pedal/Lock). Top trunnion mount, lower bushings: 30 x 8 mm
Manufacturer shift group	Sram
Gear lever	SRAM Eagle AXS Pod Ultimate, 12-speed
Rear derailleur	Sram XX SL Eagle AXS, T-Type, 12 speed
Number of gears	1 x 12
Crank handle	SRAM XX SL Carbon Eagle T-Type, Powermeter, Boost, DUB axle, Direct Mount chainring, size S: 170 mm, size M: 170 mm, size L: 175 mm, size XL: 175 mm, chainline 55
Cassette	SRAM XS-1299, 10-52T, T-Type, 12-speed
Pedals included in the scope of delivery	nein
Rims	Mavic CrossMax Carbon SL Ultimate, 29 Boost, 30 mm inner width, Hookless, Tubeless Ready, 24 spokes
Hubs	rear: Mavic Infinity hub, ID360 freehub technology, Boost 12 x 148 mm, IS 6-hole, XD freehub, front: Mavic Infinity hub, Boost 15 x 110 mm, IS 6-hole
Wheel size	29 Zoll
Tyres	Maxxis Rekon Race 29 x 2.4, EXO Protection, Tubeless Ready, 120 TPI, folding bead
Brakes	SRAM Level Ultimate 4P Stealth
Handlebars	ONOFF S9, integrated carbon handlebars, width: 760 mm, 8° horizontal crank/backsweep, 0° vertical crank/upsweep, size S: 55 mm length, angle: -12°, size M: 55 mm length, angle: -12°, size L: 65 mm length, angle: -14°, size XL: 75 mm length, angle: -15°
Seat post	RockShox Reverb Stealth AXS, diameter 31.6 mm, size S: 340 x 100 mm, size M: 390 x 125 mm, size L: 440 x 150 mm, size XL: 440 x 170 mm
Saddle	Fizik Vento Argo X5
Stem	MDK, 6061-T6 aluminium, 31.8 mm handlebar diameter, angle: +/-5°, length: size S: 50 mm, size M: 50 mm, size L: 60 mm, size XL: 70 mm

0 from 0 Reviews

Give a rating!

Share your experience with the product with other customers.

Log in

Your e-mail address

Your password

No reviews found. Go ahead and share your findings with others.

Information on the manufacturer (information obligations under the GPSR Product Safety Regulation)

Blue Factory Team S.L.U.

Nicolas Copérnico 4

03203 Moose, Spain

infoweb@mondraker.com

Safety information for bicycles, e-bikes and children's bicycles

The safe and long-term use of bicycles, e-bikes and children's bicycles requires careful checks, regular maintenance and proper handling. These instructions provide you with practical recommendations for safe use and should be taken into account in conjunction with the operating instructions of the respective manufacturer.

1. Safety checks before riding

The following checks should be carried out before every journey:

Brakes and steering: Test the functionality of the brakes and ensure that the steering is smooth and stable.

Tyres and wheels: Check that the tyres are correctly inflated and that the wheels and quick-release skewers are secure.

Fastenings: Check that attachments such as mudguards, pannier racks, saddle and pedals are securely fastened.

Accessories and load: Make sure that luggage and accessories are correctly fitted and that the permitted load capacity is not exceeded.

2. Technical safety and authorised use

Component inspection: Regularly inspect safety-relevant components such as the frame, fork, handlebars, seat post and brakes for damage. Do not use the bike if there are visible defects.

Maximum load capacity: Observe the weight limits for the total weight (bike, rider, payload and trailer, if applicable). The details can be found in the manufacturer's information.

Proper use: Only use the bike or e-bike within the scope of the intended use category. Improper use leads to safety risks.

Accessories and modifications: Only use approved accessories such as child seats or trailers and do not make any unauthorised modifications, especially to the drive system of e-bikes.

3. Special instructions for e-bikes

Battery and charging process:

Only use batteries and chargers approved by the manufacturer.

Charge the battery in a safe place and in accordance with the temperature specifications.

Remove the battery before transporting the e-bike.

Electric assistance:

Familiarise yourself with the assistance modes and the pushing aid. Test the e-bike in a safe environment first, especially with different loads or difficult ground conditions.

Running in the disc brakes:

Run in new brakes before your first big ride to ensure optimum braking performance.

Transport specifications:

Observe the manufacturer's instructions and legal regulations when transporting.

Component manuals:

For detailed information on e-bike systems from drive component manufacturers, find help here:

For Fazua motors:

https://fazua.com/de/support/help-center/knowledge-base/fazua-app/

For Bosch motors:

https://help.bosch-ebike.com/de/help-center#wss-manuals

For Shimano motors:

https://lifestylebike.shimano.com/de/support/

4. Special safety rules for children's bikes

Duty of supervision: Children may only use bicycles under the supervision of a responsible person.

Appropriate size and equipment: Make sure that the bike is age-appropriate and that all safety devices (e.g. brakes, reflectors, chain guard) are intact.

Loading and accessories: Attach child seats and pannier racks securely and ensure that the load capacity is not exceeded.

5. Care and maintenance

Cleaning: Use a soft cloth and mild cleaning agents. Avoid high-pressure cleaners to prevent damage to electrical and mechanical components.

Regular inspections: Schedule regular maintenance at a qualified specialist company to check for wear and ensure safety.

Spare parts: Only use original or approved spare parts to maintain the functionality of the bike.

6. Behaviour after the ride

Documenting damage: In the event of recognisable damage or malfunctions, the bike must not be used any further. Have it checked by a specialised company.

Avoid hot components: Avoid contact with heated components such as brake discs or drive units to prevent burns.

Final notes

This safety information provides you with a comprehensive overview for the safe use of bicycles, e-bikes and children's bicycles. Always follow the operating instructions of the respective manufacturer and contact a specialist dealer if you have any questions. Safe and responsible handling not only ensures your safety, but also extends the service life of your bike.
