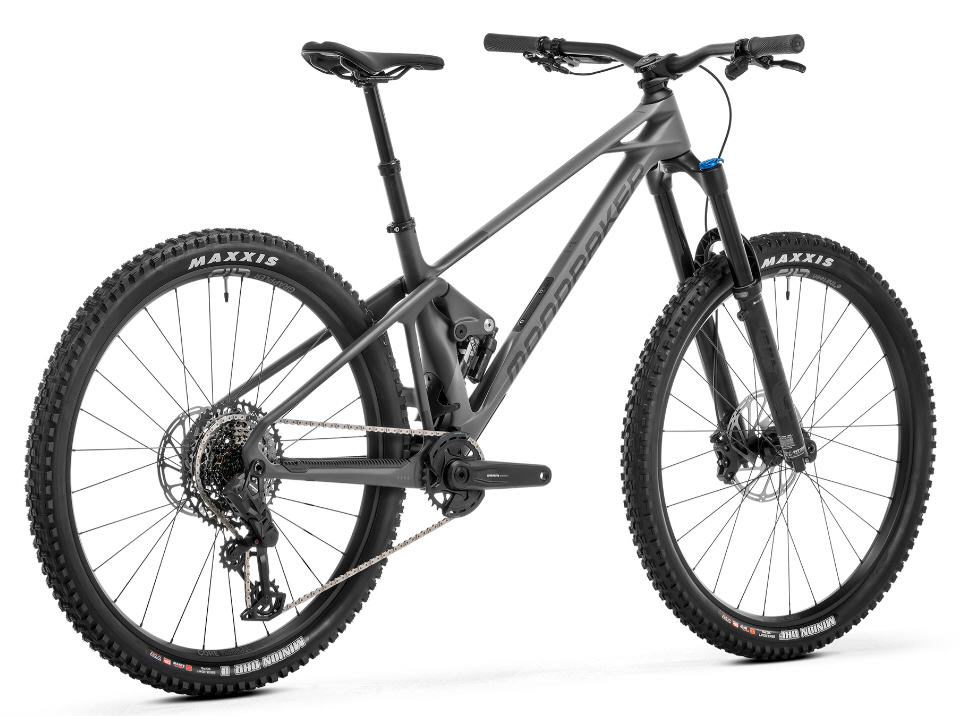

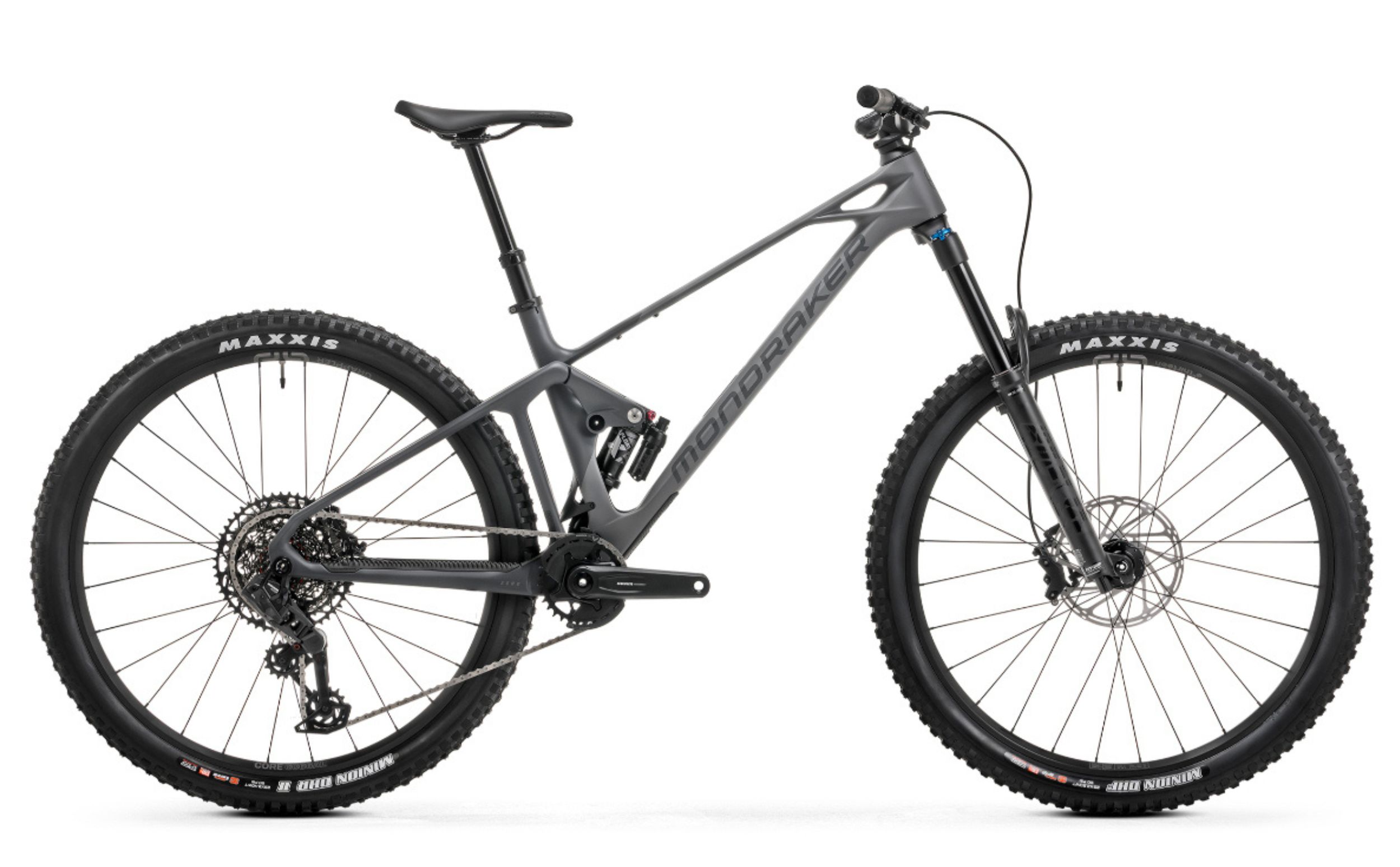

Mondraker Foxy Carbon R 29 inch

Item number: 010.25075

€4,999.00

% €6,299.00

Prices incl. VAT plus shipping costs

- 21%

Hurry up! Only one more 3 in stock.

Colour: Nimbus Grey

Frame size: L

Available immediately, with you in 8 - 10 working days
Fast delivery!
Convenient financing with easyCredit instalment purchase
Purchase on account
Pay only after 30 days further information

Weight

14.8 kg

Spring travel

160 mm

Material

Carbon

The FOXY CARBON R is the cheapest of all carbon models. And yet it has the same frame as the XR and RR Carbon. It offers Fox suspension with 160mm travel at the front and 150mm at the rear, a SRAM 12-speed drivetrain, e*thirteen wheels, SRAM DB8 4-piston brakes and ONOFF components including a retractable Pija seatpost. The adjustable geometry is optional for this bike

This bike arrives (almost) fully assembled. All you have to do is straighten the handlebars and attach the pedals.

Frame	Foxy 29 Stealth Air Full Carbon, Zero Suspension System, 150 mm travel, Forward Geometry, upper rocker carbon monoblock, 12 x 148 mm Boost rear axle, tapered head tube, 73 mm BSA bottom bracket, specific design for single drivetrains, internally routed cables and hoses (HHG), sealed Enduro "MAX" bearings, splash guard for shock, ISCG 05, special protective elements for the frame.
Material	Carbon
Gender	Unisex
Weight	approx. 14.8 kg
Fork	Fox 36 29 Float Performance GRIP, 160 mm, 3 positions, tapered head tube, 15 x 110 mm Boost axle, 44 mm offset. Settings: Sweep Adjust compression, low-speed rebound, air preload
Damper	Fox Float-X LV Performance, 205 x 65 mm. Settings: Compression via 2-way lever, low-speed rebound, air preload. Trunnion mount at the top, lower bushings: 30 x 8 mm
Manufacturer shift group	Sram
Gear lever	SRAM Eagle AXS Pod, 12-speed
Rear derailleur	Sram S1000 Eagle AXS T-Type, 12 speed
Number of gears	1 x 12
Crank handle	SRAM 1000 Eagle T-Type, Boost, DUB axle, Direct Mount chainring, all sizes: 170 mm, chainline 55
Cassette	SRAM XS-1270, 10-52T, T-Type, 12-speed
Pedals included in the scope of delivery	nein
Rims	e*thirteen Grappler Core, IW30 Hookless, 6066 aluminium welded, 30 mm inner width, tubeless ready, 28 spokes
Hubs	rear: ethirteen Boost 12 x 148 mm, triple sealed, milled aluminium with 6° gearing, IS 6-hole, HG freehub, front: ethirteen Boost 15 x 110 mm, triple sealed, milled aluminium, IS 6-hole
Wheel size	29 Zoll
Tyres	rear: Maxxis Minion DHR II 29 x 2.4 WT, Tubeless Ready, 3C MaxxTerra rubber compound, EXO+ Protection, 120 TPI, folding bead, front: Maxxis Minion DHF 29 x 2.5 WT, Tubeless Ready, 3C MaxxGrip rubber compound, EXO+ Protection, 120 TPI, folding bead
Brakes	SRAM DB8 Stealth, 4-piston brake caliper
Handlebars	ONOFF S6 1.0 7050 aluminium, rise: 25 mm, width: 800 mm, 8° horizontal crank/backsweep, 5° vertical crank/upsweep, 31.8 mm handlebar diameter. Size L and XL: rise 1.5.
Seat post	ONOFF Pija telescopic post, internal cable routing, diameter 31.6 mm, 1 remote lever with bearing, size S: 140-115 mm (388-235 mm), size M: 160-135 mm (428-255 mm), size L: 180-155 mm (468-275 mm), size XL: 210-185 mm (528-305 mm)
Saddle	SDG Bel-Air 3.0, LPU foam, steel struts
Stem	ONOFF S6 30 mm 0°, forged 6061 aluminium + CNC, 31.8 mm handlebar diameter

0 from 0 Reviews

Give a rating!

Share your experience with the product with other customers.

Log in

Your e-mail address

Your password

No reviews found. Go ahead and share your findings with others.

Information on the manufacturer (information obligations under the GPSR Product Safety Regulation)

Blue Factory Team S.L.U.

Nicolas Copérnico 4

03203 Moose, Spain

infoweb@mondraker.com

Safety information for bicycles, e-bikes and children's bicycles

The safe and long-term use of bicycles, e-bikes and children's bicycles requires careful checks, regular maintenance and proper handling. These instructions provide you with practical recommendations for safe use and should be taken into account in conjunction with the operating instructions of the respective manufacturer.

1. Safety checks before riding

The following checks should be carried out before every journey:

Brakes and steering: Test the functionality of the brakes and ensure that the steering is smooth and stable.

Tyres and wheels: Check that the tyres are correctly inflated and that the wheels and quick-release skewers are secure.

Fastenings: Check that attachments such as mudguards, pannier racks, saddle and pedals are securely fastened.

Accessories and load: Make sure that luggage and accessories are correctly fitted and that the permitted load capacity is not exceeded.

2. Technical safety and authorised use

Component inspection: Regularly inspect safety-relevant components such as the frame, fork, handlebars, seat post and brakes for damage. Do not use the bike if there are visible defects.

Maximum load capacity: Observe the weight limits for the total weight (bike, rider, payload and trailer, if applicable). The details can be found in the manufacturer's information.

Proper use: Only use the bike or e-bike within the scope of the intended use category. Improper use leads to safety risks.

Accessories and modifications: Only use approved accessories such as child seats or trailers and do not make any unauthorised modifications, especially to the drive system of e-bikes.

3. Special instructions for e-bikes

Battery and charging process:

Only use batteries and chargers approved by the manufacturer.

Charge the battery in a safe place and in accordance with the temperature specifications.

Remove the battery before transporting the e-bike.

Electric assistance:

Familiarise yourself with the assistance modes and the pushing aid. Test the e-bike in a safe environment first, especially with different loads or difficult ground conditions.

Running in the disc brakes:

Run in new brakes before your first big ride to ensure optimum braking performance.

Transport specifications:

Observe the manufacturer's instructions and legal regulations when transporting.

Component manuals:

For detailed information on e-bike systems from drive component manufacturers, find help here:

For Fazua motors:

https://fazua.com/de/support/help-center/knowledge-base/fazua-app/

For Bosch motors:

https://help.bosch-ebike.com/de/help-center#wss-manuals

For Shimano motors:

https://lifestylebike.shimano.com/de/support/

4. Special safety rules for children's bikes

Duty of supervision: Children may only use bicycles under the supervision of a responsible person.

Suitable size and equipment: Make sure that the bike is age-appropriate and that all safety devices (e.g. brakes, reflectors, chain guard) are intact.

Loading and accessories: Attach child seats and pannier racks securely and ensure that the load capacity is not exceeded.

5. Care and maintenance

Cleaning: Use a soft cloth and mild cleaning agents. Avoid high-pressure cleaners to prevent damage to electrical and mechanical components.

Regular inspections: Schedule regular maintenance at a qualified specialist company to check for wear and ensure safety.

Spare parts: Only use original or approved spare parts to maintain the functionality of the bike.

6. Behaviour after the ride

Documenting damage: In the event of recognisable damage or malfunctions, the bike must not be used any further. Have it checked by a specialised company.

Avoid hot components: Avoid contact with heated components such as brake discs or drive units to prevent burns.

Final notes

This safety information provides you with a comprehensive overview for the safe use of bicycles, e-bikes and children's bicycles. Always observe the operating instructions of the respective manufacturer and contact a specialist dealer if you have any questions. Safe and responsible handling not only ensures your safety, but also extends the service life of your bike.
