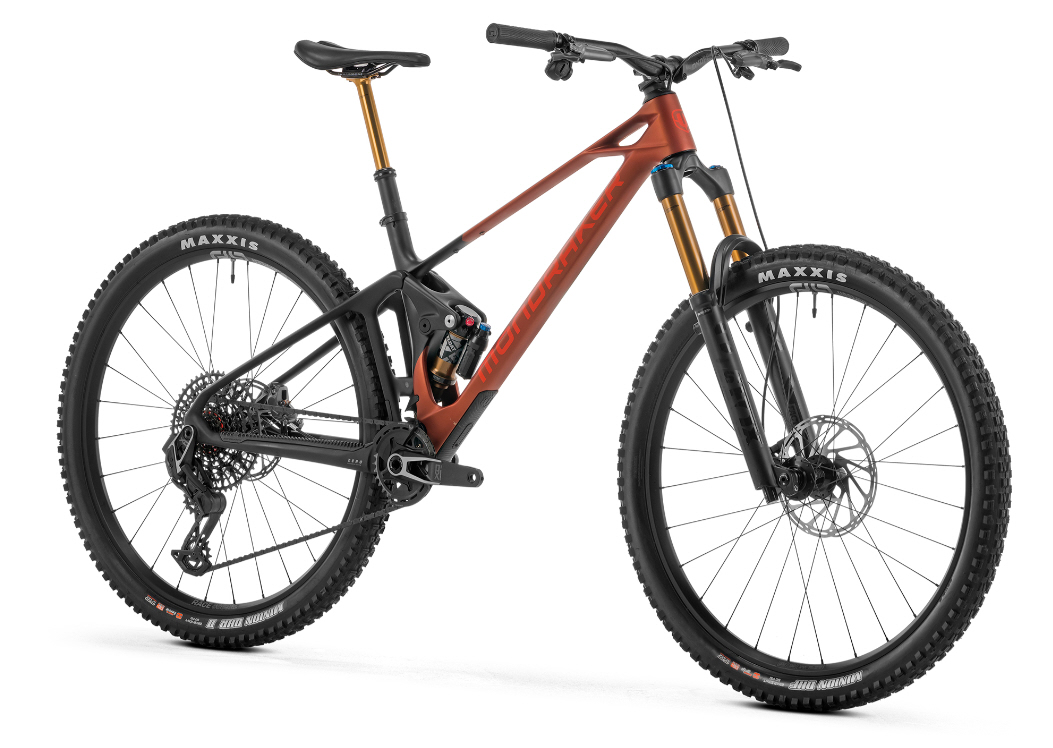

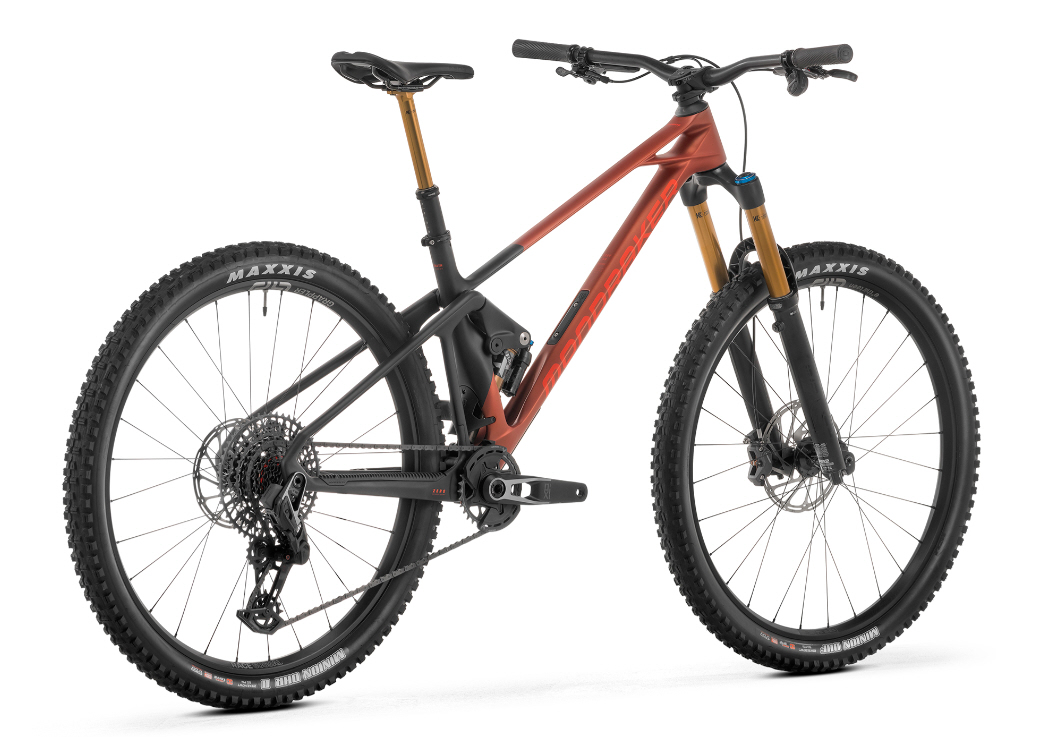

Mondraker Foxy Carbon RR 29 inch

Item number: 010.25077

€6,799.00

% €8,499.00

Prices incl. VAT plus shipping costs

- 20%

Hurry up! Only one more 1 in stock.

Colour: black/red

Frame size: S

Available immediately, with you in 8 - 10 working days
Fast delivery!
Convenient financing with easyCredit instalment purchase
Purchase on account
Pay only after 30 days further information

Weight

14.4 kg

Spring travel

160 mm

Material

Carbon

Its fantastic pedalling efficiency and stunning damping make the FOXY our most versatile model. The FOXY RR features Fox suspension with 160mm travel at the front and 150mm at the rear. A SRAM drivetrain takes care of power transmission while e*thirteen wheels ensure smooth running. SRAM brakes compress your speed and ONOFF components round off the package. The adjustable geometry is optional for this bike.

This bike arrives (almost) fully assembled. All you have to do is straighten the handlebars and attach the pedals.

Frame	Foxy 29 Stealth Air Full Carbon, Zero Suspension System, 150 mm travel, Forward Geometry, upper rocker carbon monoblock, 12 x 148 mm Boost rear axle, tapered head tube, 73 mm BSA bottom bracket, specific design for single drivetrains, internally routed cables and hoses (HHG), sealed Enduro "MAX" bearings, splash guard for shock, ISCG 05, special protective elements for the frame.
Material	Carbon
Gender	Unisex
Weight	approx. 14.4 kg
Fork	Fox 36 29 Float GRIP X2 Factory Kashima, glossy black, 160 mm, tapered head tube, 15 x 110 mm Boost Kabolt axle, 44 mm offset. Settings: High- and low-speed compression, high- and low-speed rebound, air preload
Damper	Fox Float X Factory Kashima EVOL, 205 x 65 mm. Settings: Compression with 2 modes (Open/Firm), rebound, air preload. Trunnion mount at the top, lower bushings: 30 x 8 mm
Manufacturer shift group	Sram
Gear lever	SRAM Eagle AXS Pod, 12-speed
Rear derailleur	Sram X0 Eagle AXS T-Type,12 speed
Number of gears	1 x 12
Crank handle	SRAM X0 Eagle T-Type, Boost, DUB axle, Direct Mount chainring, all sizes: 170 mm, chainline 55
Cassette	SRAM XS-1295, 10-52T, T-Type, 12-speed
Pedals included in the scope of delivery	nein
Rims	e*thirteen Grappler Race, IW30 Hookless, 6069 aluminium welded, 30 mm inner width, tubeless ready, 28 spokes
Hubs	rear: ethirteen Boost 12 x 148 mm, triple sealed, milled aluminium with 6° gearing, IS 6-hole, XD freehub, front: ethirteen Boost 15 x 110 mm, triple sealed, milled aluminium, IS 6-hole
Wheel size	29 Zoll
Tyres	rear: Maxxis Minion DHR II 29 x 2.4 WT, Tubeless Ready, 3C MaxxTerra rubber compound, EXO+ Protection, 120 TPI, folding bead, front: Maxxis Minion DHF 29 x 2.5 WT, Tubeless Ready, 3C MaxxGrip rubber compound, EXO+ Protection, 120 TPI, folding bead
Brakes	SRAM Code Bronze Stealth
Handlebars	ONOFF Onoff S9 1.0 Carbon, rise: 25 mm, width: 800 mm, 8° horizontal crank/backsweep, 5° vertical crank/upsweep, 31.8 mm handlebar diameter. Size L and XL: rise 1.5.
Seat post	Fox Transfer Factory Kashima, internal cable routing, adjustable suspension travel, diameter 31.6 mm, size S: 95-120 mm, size M: 125-150 mm, size L: 155-180 mm, size XL: 185-210 mm
Saddle	SDG Bel-Air 3.0, LPU foam, steel struts
Stem	ONOFF S9 30mm 0°, Full CNC, 31.8mm handlebar diameter
