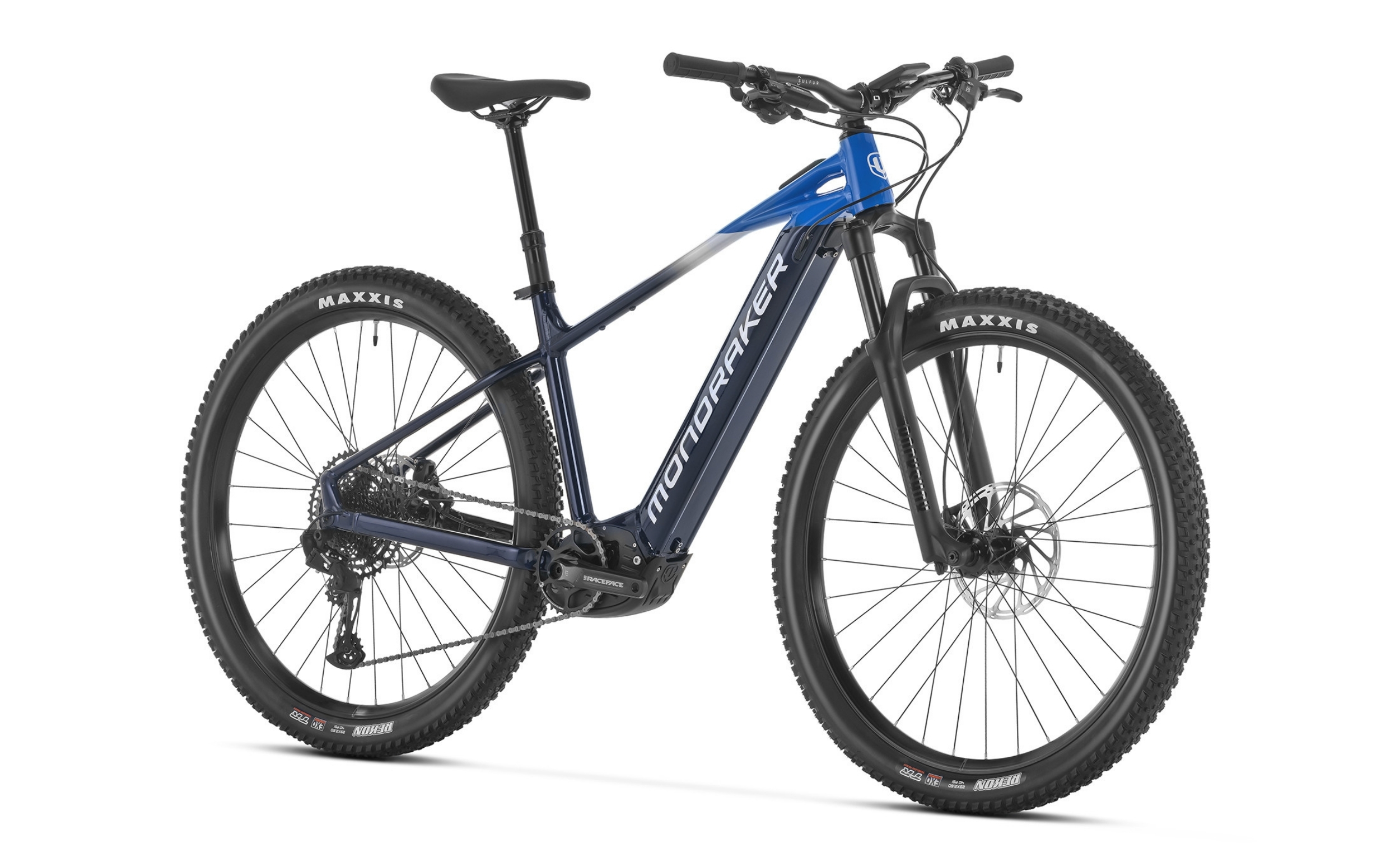

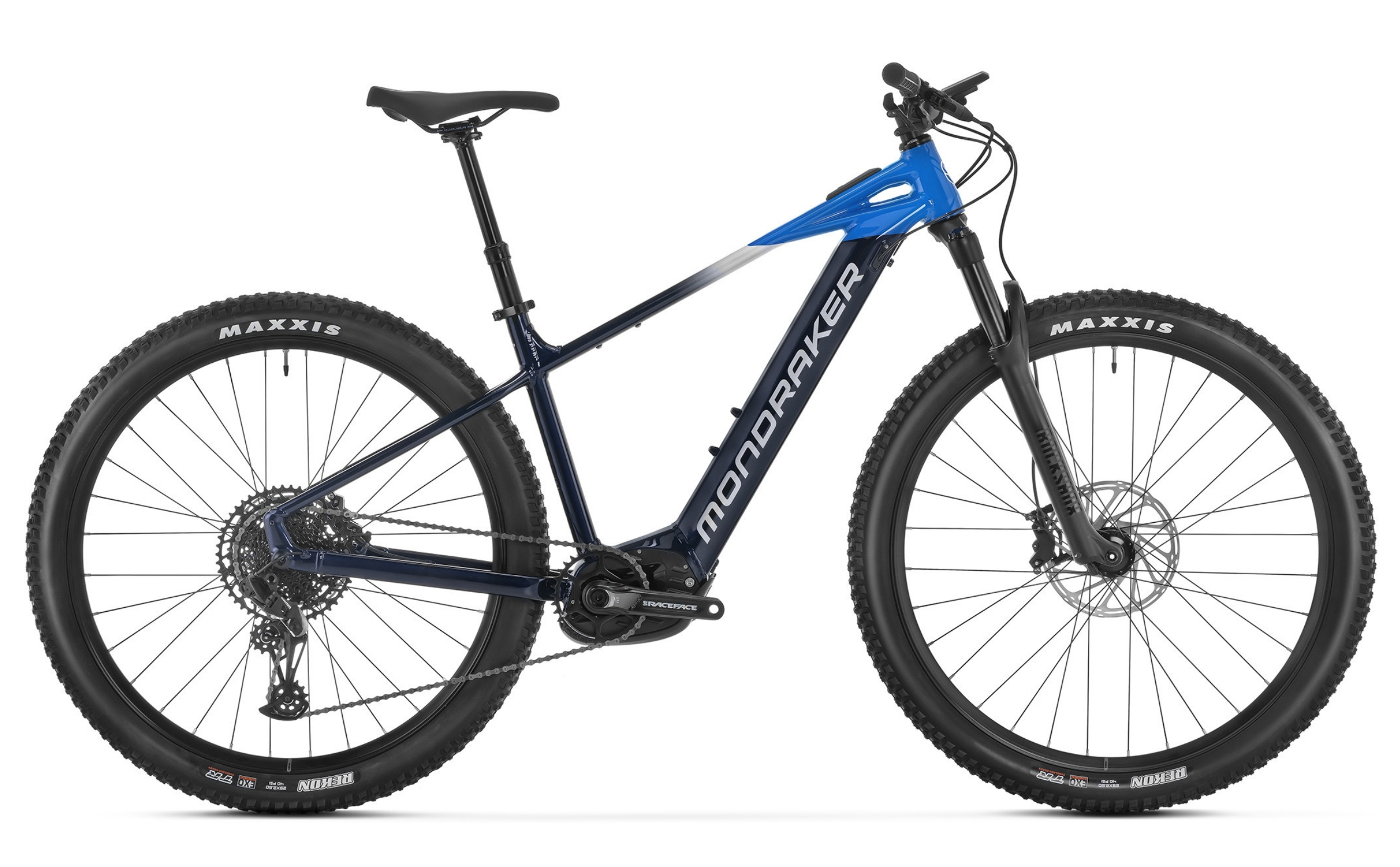

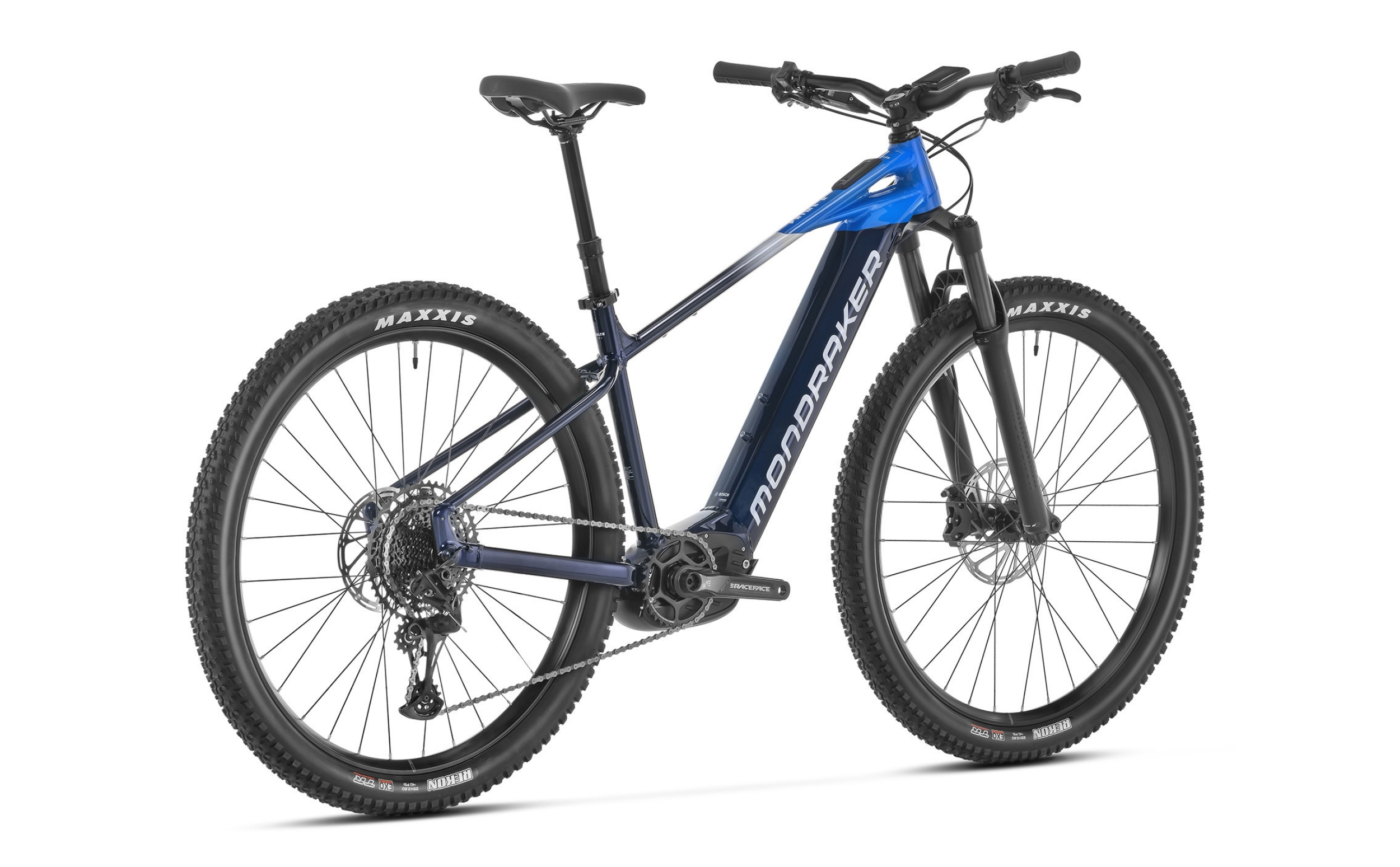

Mondraker Prime R 29" Performance CX 750Wh
-
Available immediately, with you in 8 - 10 working days
-
Fast delivery!
-
Convenient financing with easyCredit instalment purchase
-
Purchase on account
-
Pay only after 30 days further information
The PRIME R is the sporty e-MTB for people who want to get into mountain biking and want an e-bike with a suspension fork and full Mondraker performance.
In addition, you can enjoy almost endless rides with the Bosch Performance Line CX Smart System drive in combination with a 750 Wh battery. It is equipped with the brand new integrated system controller, the wireless mini remote and the Intuvia 100 display from Bosch.
With the RockShox suspension fork with 120mm travel and 29" wheels, you can either simply enjoy leisurely tours or experience the most challenging days you can dream of.
This bike arrives (almost) fully assembled. All you have to do is straighten the handlebars and attach the pedals.
| Frame | Prime Xtralite 6061 Full Butted Alloy, Forward Geometry, integrated, non-removable battery, tapered head tube, 12 x 148 mm Boost rear axle, speed sensor integrated in the dropout. |
| Frame shape | Mountainbike |
| Material | Aluminium |
| Gender | Unisex |
| Weight | approx. 23.4 kg |
| permissible total weight | 150 kg |
| Fork | RockShox 35 Silver TK 29, 120 mm, TurnKey, Solo Air, tapered head tube, 15 x 110 mm Boost axle, 35 mm steel stanchions, 44 mm offset. Settings: Low-speed compression to Lock, rebound, air preload |
| Manufacturer shift group | Sram |
| Rear derailleur | SRAM SX Eagle, Roller Bearing Clutch Type 3, Cage Lock, long cage, 1x12-speed, X-Actuation 1:1 |
| Number of gears | 1 x 12 |
| Circuit type | Kettenschaltung |
| Crank handle | Race Face Aeffect E-Bike, 165 mm |
| Cassette | SRAM PG-1210, 11-50T, 12-speed |
| Drive type | Kettenantrieb |
| Freewheel/coaster | Freilauf |
| Pedals included in the scope of delivery | nein |
| Rims | Mavic E-CrossRide 29, 30 mm inner width, welded, PFP, tubeless ready, 28 spokes |
| Hubs | rear: Mavic, Boost 12 x 148 mm, ID360 freehub system with spur gearing, IS 6-hole, HG freehub, front: Mavic, Boost 15 x 110 mm, IS 6-hole |
| Wheel size | 29 Zoll |
| Tyres | Maxxis Rekon 29 x 2.6, tubeless ready, dual rubber compound, EXO Protection, 60 TPI, folding bead |
| Motor manufacturer | Bosch |
| Engine | Performance Line CX |
| max. torque | 85 Nm |
| Reach | up to 150 km |
| Support for | up to 25 km/h |
| Battery | Bosch 750Wh PowerTube |
| Display | Bosch Intuvia 100 |
| Brakes | Sram DB8 |
| Handlebars | ONOFF Sulfur 1.0, double butted 6061 aluminium, rise: 20 mm, width: 800 mm, 9° horizontal crank/backsweep, 5° vertical crank/upsweep, 31.8 mm handlebar diameter |
| Seat post | ONOFF Pija telescopic post, internal cable routing, diameter 31.6 mm, 1 remote lever with bearing, size S: 405 x 95-125 mm, size M: 458 x 120-150 mm, size L: 498 x 140-170 mm, size XL: 558 x 170-200 mm |
| Saddle | MDK e-Bike black |
| Stem | ONOFF Sulfur FG 30 mm 0°, forged 6061 aluminium, 31.8 mm handlebar diameter |
| Accessories/Miscellaneous | Charger included in the scope of delivery |
Log in
Safety information for bicycles, e-bikes and children's bicycles
The safe and long-term use of bicycles, e-bikes and children's bicycles requires careful checks, regular maintenance and proper handling. These instructions provide you with practical recommendations for safe use and should be followed in conjunction with the operating instructions of the respective manufacturer.
1. Safety checks before riding
The following checks should be carried out before every journey:
Brakes and steering: Test the functionality of the brakes and ensure that the steering is smooth and stable.
Tyres and wheels: Check that the tyres are correctly inflated and that the wheels and quick-release skewers are secure.
Fastenings: Check that attachments such as mudguards, pannier racks, saddle and pedals are securely fastened.
Accessories and load: Make sure that luggage and accessories are correctly fitted and that the permitted load capacity is not exceeded.
2. Technical safety and authorised use
Component inspection: Regularly inspect safety-relevant components such as the frame, fork, handlebars, seat post and brakes for damage. Do not use the bike if there are visible defects.
Maximum load capacity: Observe the weight limits for the total weight (bike, rider, payload and trailer, if applicable). The details can be found in the manufacturer's information.
Proper use: Only use the bike or e-bike within the scope of the intended use category. Improper use leads to safety risks.
Accessories and modifications: Only use approved accessories such as child seats or trailers and do not make any unauthorised modifications, especially to the drive system of e-bikes.
3. Special instructions for e-bikes
Battery and charging process:
Only use batteries and chargers approved by the manufacturer.
Charge the battery in a safe place and in accordance with the temperature specifications.
Remove the battery before transporting the e-bike.
Electric assistance:
Familiarise yourself with the assistance modes and the pushing aid. Test the e-bike in a safe environment first, especially with different loads or difficult ground conditions.
Running in the disc brakes:
Run in new brakes before your first big ride to ensure optimum braking performance.
Transport specifications:
Observe the manufacturer's instructions and legal regulations when transporting.
Component manuals:
For detailed information on e-bike systems from drive component manufacturers, find help here:
For Fazua motors:
https://fazua.com/de/support/help-center/knowledge-base/fazua-app/
For Bosch motors:
https://help.bosch-ebike.com/de/help-center#wss-manuals
For Shimano motors:
https://lifestylebike.shimano.com/de/support/
4. Special safety rules for children's bikes
Duty of supervision: Children may only use bicycles under the supervision of a responsible person.
Suitable size and equipment: Make sure that the bike is age-appropriate and that all safety devices (e.g. brakes, reflectors, chain guard) are intact.
Loading and accessories: Attach child seats and pannier racks securely and ensure that the load capacity is not exceeded.
5. Care and maintenance
Cleaning: Use a soft cloth and mild cleaning agents. Avoid high-pressure cleaners to prevent damage to electrical and mechanical components.
Regular inspections: Schedule regular maintenance at a qualified specialist company to check for wear and ensure safety.
Spare parts: Only use original or approved spare parts to maintain the functionality of the bike.
6. Behaviour after the ride
Documenting damage: In the event of recognisable damage or malfunctions, the bike must not be used any further. Have it checked by a specialised company.
Avoid hot components: Avoid contact with heated components such as brake discs or drive units to prevent burns.
Final notes
This safety information provides you with a comprehensive overview for the safe use of bicycles, e-bikes and children's bicycles. Always observe the operating instructions of the respective manufacturer and contact a specialist dealer if you have any questions. Safe and responsible handling not only ensures your safety, but also extends the service life of your bike.
