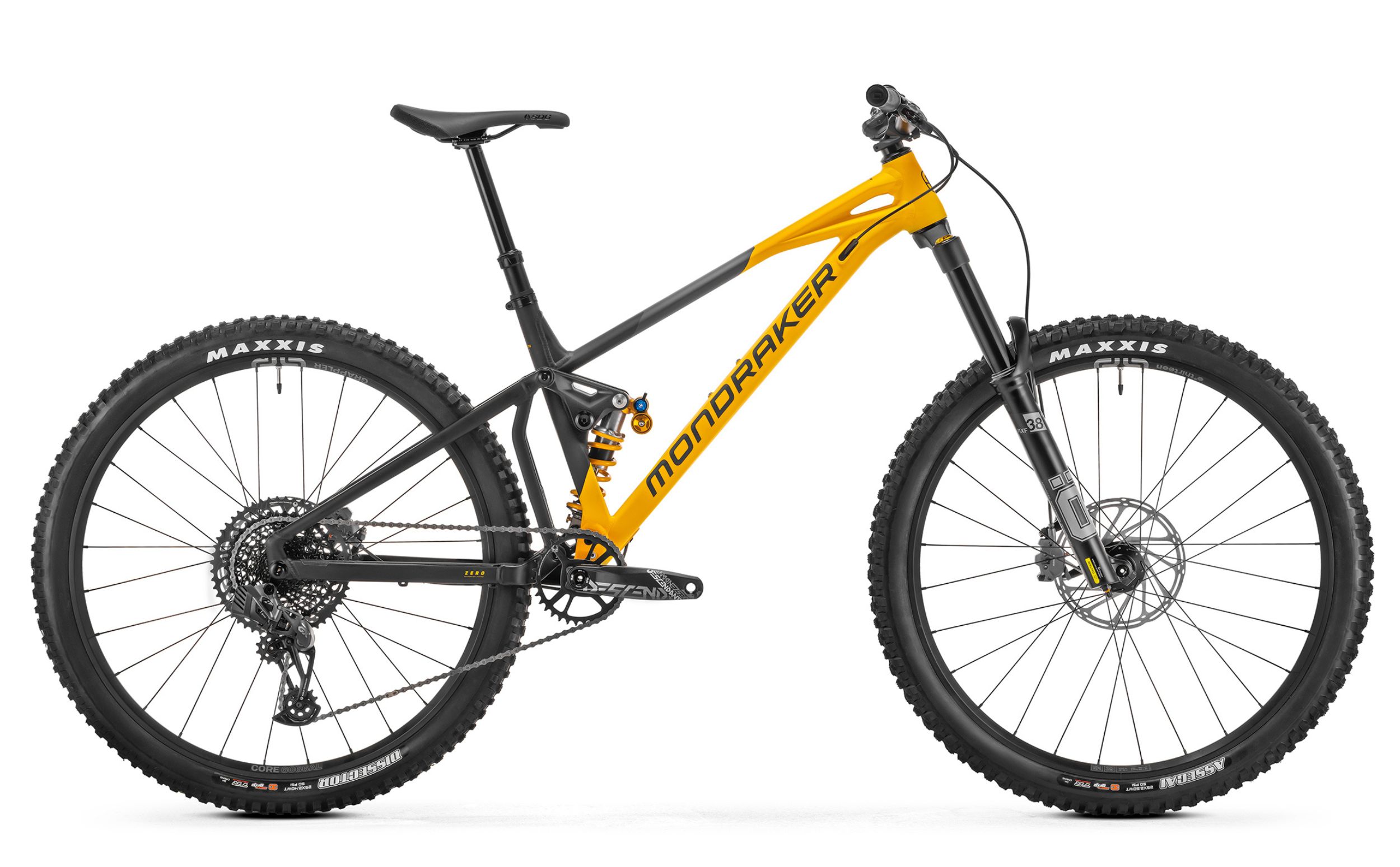

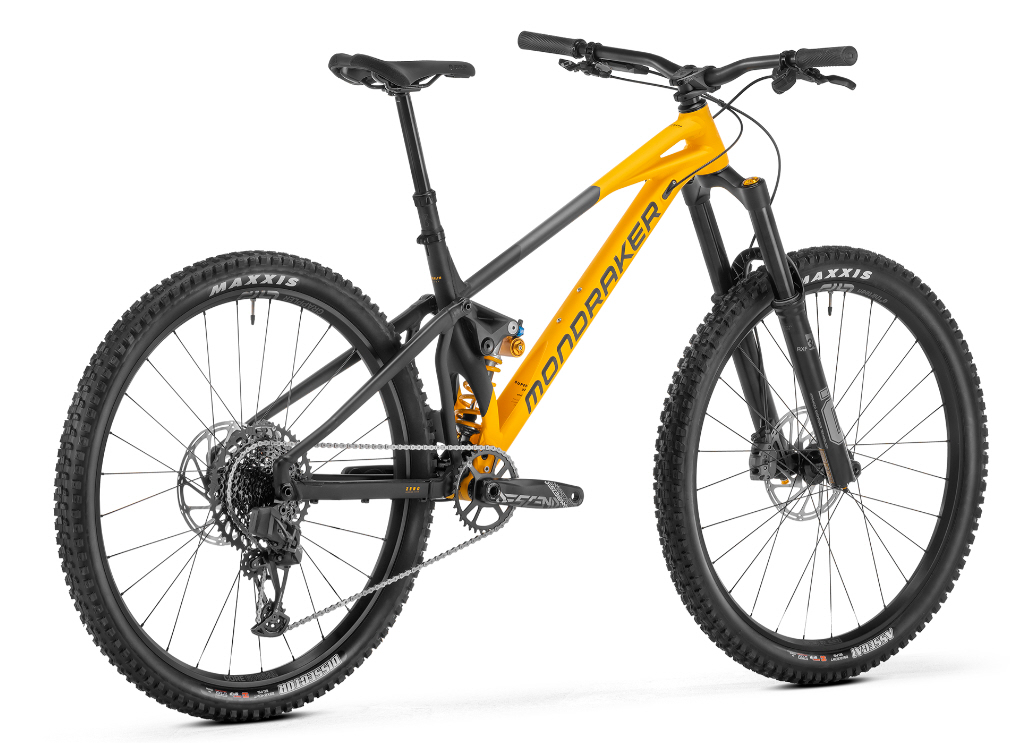

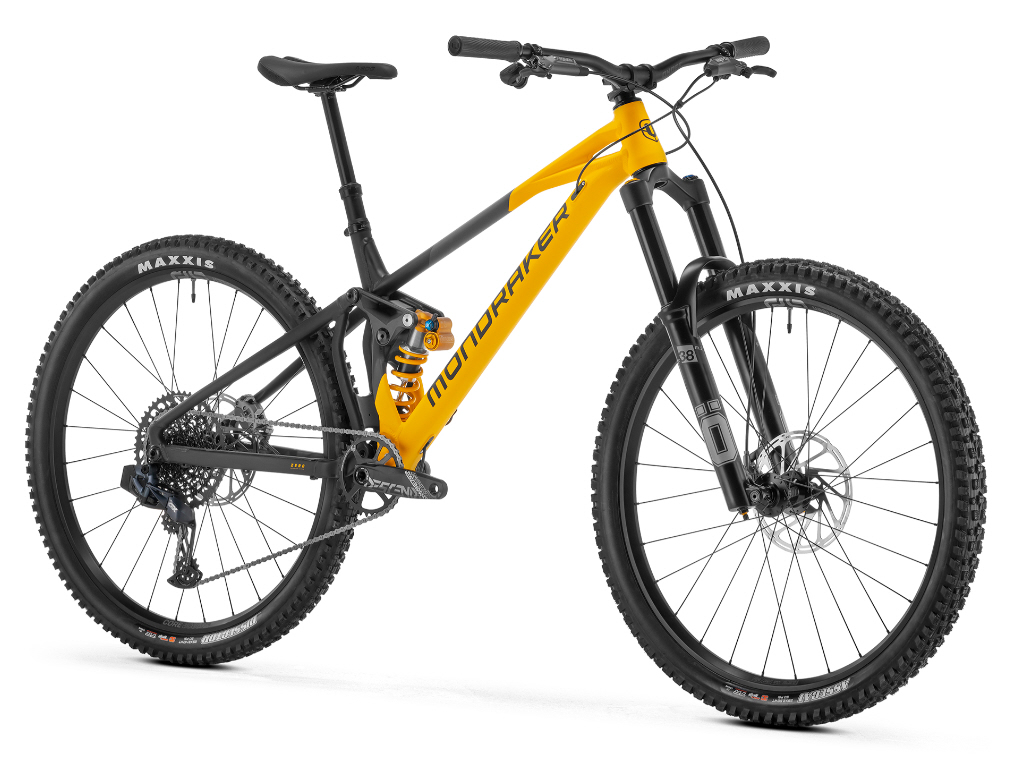

Mondraker Superfoxy XR 29 inch
-
Available immediately, with you in 8 - 10 working days
-
Fast delivery!
-
Convenient financing with easyCredit instalment purchase
-
Purchase on account
-
Pay only after 30 days further information
If you're looking for a Mondraker Super Enduro bike that has everything you need to go downhill, but a carbon frame isn't on your wish list, then the SUPERFOXY XR is the bike for you! It offers all the hand-picked parts, from the complete Öhlins suspension to the finest ONOFF components and the e*thirteen Grappler Core wheelset. And best of all is its spectacular frame, made from our best aluminium: STEALTH ALLOY. Here you get spectacular design, stunning colours and a setup designed to push you to the limit. Nothing will stop you!
This bike arrives (almost) fully assembled. All you have to do is straighten the handlebars and attach the pedals.
| Frame | SuperFoxy 29 6061 Alloy Stealth Evo, hydroformed tubeset, Zero Suspension System, 160 mm travel, Forward Geometry, one-piece upper rocker monoblock, 12 x 157 mm Super Boost rear axle, tapered head tube, 73 mm BSA bottom bracket, specific design for single drivetrains, telescopic seatpost with internally routed cable, sealed "MAX-Capacity" bearings, ISCG 05 |
| Material | Aluminium |
| Gender | Unisex |
| Weight | approx. 17.2 kg |
| Fork | Öhlins RXF 38 M.2 29, 170 mm, TTX18 Twin Tube cartridge, tapered head tube, 15 x 110 mm Boost axle, 44 mm offset. Settings: High-speed compression via lever with climb mode, low-speed compression, rebound, air preload, ramp-up chamber |
| Damper | Öhlins TTX 22M coil; 205 x 65 mm. Settings: High-speed compression via lever with climb mode, low-speed compression, rebound, air preload. Trunnion mount at the top, lower bushings: 22.2 x 10 mm |
| Manufacturer shift group | Sram |
| Gear lever | SRAM Eagle AXS Pod, 12-speed |
| Rear derailleur | Sram GX Eagle,12 speed |
| Number of gears | 1 x 12 |
| Crank handle | SRAM Truvativ Descendant 7K Eagle, Super Boost, DUB axle, Direct Mount chainring, all sizes: 170 mm, chainline 56.5 |
| Cassette | SRAM XG-1275, 10-52T, 12-speed |
| Pedals included in the scope of delivery | nein |
| Rims | e*thirteen Grappler Core, IW30 Hookless, 6069 aluminium welded, 30 mm inner width, tubeless ready, 28 spokes |
| Hubs | rear: e*thirteen Super-Boost 12 x 157 mm, triple sealed, milled aluminium with 6° gearing, IS 6-hole, XD freehub, front: e*thirteen Boost 15 x 110 mm, triple sealed, milled aluminium, IS 6-hole |
| Wheel size | 29 Zoll |
| Tyres | rear: Maxxis Dissector 29 x 2.4 WT, Tubeless Ready, 3C MaxxGrip rubber compound, DH casing, 60x2TPI, folding bead, front: Maxxis Assegai 29 x 2.5 WT, Tubeless Ready, 3C MaxxGrip rubber compound, DH casing, 60x2TPI, folding bead |
| Brakes | SRAM Maven Bronze, 18 and 19.5 mm 4-piston brake caliper, one-piece 200 mm IS 6-hole centreline brake disc, sintered metal brake pads with steel backplate |
| Handlebars | ONOFF S6 1.0 7050 aluminium, rise: 25 mm, width: 800 mm, 8° horizontal crank/backsweep, 5° vertical crank/upsweep, 31.8 mm handlebar diameter. Size L and XL: rise 1.5. |
| Seat post | ONOFF Pija telescopic post, internal cable routing, diameter 31.6 mm, 1 remote lever with bearing, size S: 140-115 mm (388-235 mm), size M: 160-135 mm (428-255 mm), size L: 180-155 mm (468-275 mm), size XL: 210-185 mm (528-305 mm) |
| Saddle | SDG Bel-Air 3.0, LPU foam, steel struts |
| Stem | ONOFF S9 30 mm 0º, Full CNC, 31.8 mm handlebar diameter |
Log in
Safety information for bicycles, e-bikes and children's bicycles
The safe and long-term use of bicycles, e-bikes and children's bicycles requires careful checks, regular maintenance and proper handling. These instructions provide you with practical recommendations for safe use and should be taken into account in conjunction with the operating instructions of the respective manufacturer.
1. Safety checks before riding
The following checks should be carried out before every journey:
Brakes and steering: Test the functionality of the brakes and ensure that the steering is smooth and stable.
Tyres and wheels: Check that the tyres are correctly inflated and that the wheels and quick-release skewers are secure.
Fastenings: Check that attachments such as mudguards, pannier racks, saddle and pedals are securely fastened.
Accessories and load: Make sure that luggage and accessories are correctly fitted and that the permitted load capacity is not exceeded.
2. Technical safety and authorised use
Component inspection: Regularly inspect safety-relevant components such as the frame, fork, handlebars, seat post and brakes for damage. Do not use the bike if there are visible defects.
Maximum load capacity: Observe the weight limits for the total weight (bike, rider, payload and trailer, if applicable). The details can be found in the manufacturer's information.
Proper use: Only use the bike or e-bike within the scope of the intended use category. Improper use leads to safety risks.
Accessories and modifications: Only use approved accessories such as child seats or trailers and do not make any unauthorised modifications, especially to the drive system of e-bikes.
3. Special instructions for e-bikes
Battery and charging process:
Only use batteries and chargers approved by the manufacturer.
Charge the battery in a safe place and in accordance with the temperature specifications.
Remove the battery before transporting the e-bike.
Electric assistance:
Familiarise yourself with the assistance modes and the pushing aid. Test the e-bike in a safe environment first, especially with different loads or difficult ground conditions.
Running in the disc brakes:
Run in new brakes before your first big ride to ensure optimum braking performance.
Transport specifications:
Observe the manufacturer's instructions and legal regulations when transporting.
Component manuals:
For detailed information on e-bike systems from drive component manufacturers, find help here:
For Fazua motors:
https://fazua.com/de/support/help-center/knowledge-base/fazua-app/
For Bosch motors:
https://help.bosch-ebike.com/de/help-center#wss-manuals
For Shimano motors:
https://lifestylebike.shimano.com/de/support/
4. Special safety rules for children's bikes
Duty of supervision: Children may only use bicycles under the supervision of a responsible person.
Appropriate size and equipment: Make sure that the bike is age-appropriate and that all safety devices (e.g. brakes, reflectors, chain guard) are intact.
Loading and accessories: Attach child seats and pannier racks securely and ensure that the load capacity is not exceeded.
5. Care and maintenance
Cleaning: Use a soft cloth and mild cleaning agents. Avoid high-pressure cleaners to prevent damage to electrical and mechanical components.
Regular inspections: Schedule regular maintenance at a qualified specialist company to check for wear and ensure safety.
Spare parts: Only use original or approved spare parts to maintain the functionality of the bike.
6. Behaviour after the ride
Documenting damage: In the event of recognisable damage or malfunctions, the bike must not be used any further. Have it checked by a specialised company.
Avoid hot components: Avoid contact with heated components such as brake discs or drive units to prevent burns.
Final notes
This safety information provides you with a comprehensive overview for the safe use of bicycles, e-bikes and children's bicycles. Always observe the operating instructions of the respective manufacturer and contact a specialist dealer if you have any questions. Safe and responsible handling not only ensures your safety, but also extends the service life of your bike.
