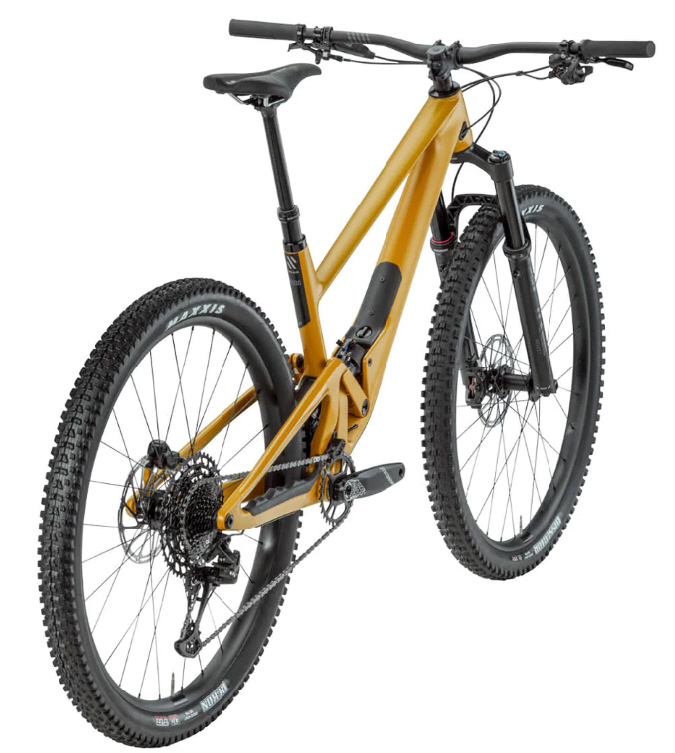

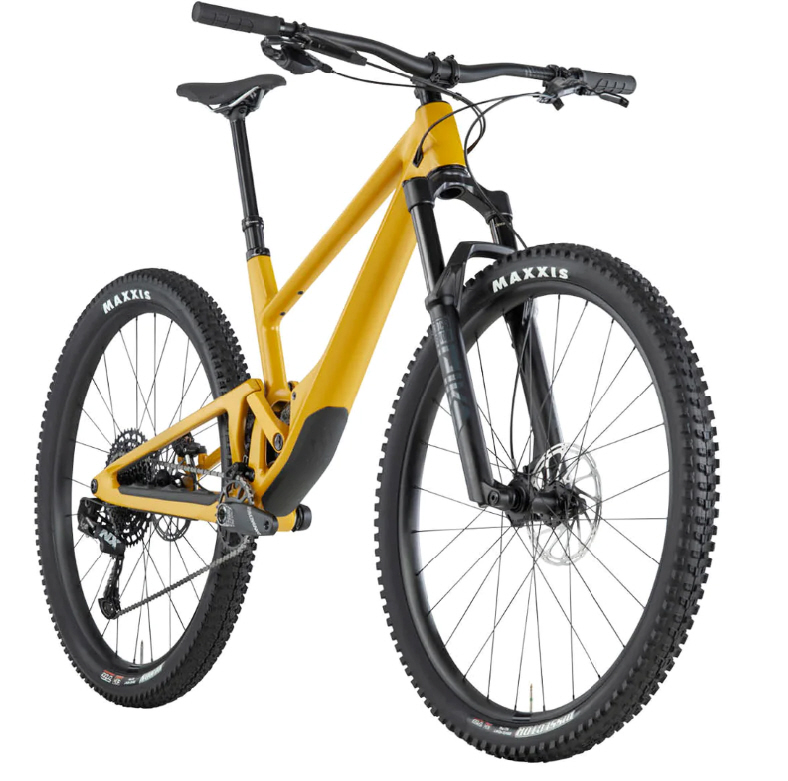

SCOR 2030 ST Carbon NX
-
Currently not available
-
Fast delivery!
-
Convenient financing with easyCredit instalment purchase
-
Purchase on account
-
Pay only after 30 days further information
Pedalability Meets Shredability. The 2030 NX is a short-travel bike with enduro genes. Paired with high-quality suspension components from RockShox, the carbon frame pumps you up with its 120 mm suspension, which impresses with its efficiency on the climbs and inspires with its power and agility on the descents. Thanks to solid and affordable components, you can get started right away - without having to break the bank first.
Enduro-strong, trail-light
The lightweight carbon frame of the 2030 fulfils the same stability standards as our enduro bike, the 4060 (ASTM 4). Thanks to steel axles and additional seals at all pivot points, it is not only robust but also low-maintenance.
SCOR geometry
Well balanced: With its 64.5° steering angle and long front centre, the 2030 provides enormous confidence on steep, technical descents. The short rear end provides the agility and playfulness you would expect from a short-travel bike.
Less is more
Our Lower-Link-Activated-Virtual-Pivot-Kinematics get the maximum out of 120 mm travel and ensure efficient suspension and optimum traction. The progressive leverage ratio ensures the perfect balance of sensitivity and support.
Equipped for everything
The storage compartment in the down tube, including a waterproof stash pouch, offers space for a repair kit or other utensils. Additional attachment points under the top tube make it possible to carry even more on longer tours.
This bike arrives (almost) fully assembled. All you have to do is straighten the handlebars and attach the pedals.
| Frame | SCOR 2030 Full Carbon Frame | Lower-Link Driven Instant Centre Linkage | 120 / 130mm Rear Wheel Travel | Fully Guided Internal Cable Routing | Internal Frame Storage | Boost 148 | SRAM UDH | Lower ISCG 05 Mount / Chainguide |
| Material | Carbon |
| Gender | Unisex |
| Fork | RockShox Pike Select RC | 140mm Travel | 44mm Rake |
| Damper | RockShox Deluxe Select+ RT | 185 x 47.5mm Trunnion |
| Switching group | SRAM NX Eagle |
| Manufacturer shift group | Sram |
| Gear lever | SRAM NX Eagle |
| Rear derailleur | Sram NX Eagle, 12-Speed |
| Number of gears | 1 x 12 |
| Crank handle | SRAM Descendant 6K Eagle | 170 mm Length |
| Cassette | SRAM NX PG-1230 Eagle |
| Pedals included in the scope of delivery | nein |
| Rims | XDX-530 | 28 Spokes | 6061-T6 Alloy | Welded Joint | 30mm Internal Width | Tubeless ready |
| Hubs | XDX-530 | 28 Spokes | Sealed Cartridge Bearings |
| Wheel size | 29 Zoll |
| Tyres | Maxxis Dissector 29 x 2.4" 3C MaxxTerra Exo TR (F) | Maxxis Rekon 29 x 2.4" 3C MaxxTerra Exo TR (R) |
| Brakes | SRAM Code R |
| Handlebars | SCOR Alloy Bar | 31.8mm Clamp | 800mm Wide | 20mm Rise | 5° Upsweep | 9° Backsweep |
| Seat post | X-Fusion Manic | S 125mm | M 150mm | M/L , L , XL 170mm Travel |
| Saddle | WTB Silverado Medium Steel SL |
| Stem | SCOR Alloy Stem | 31.8mm Bar Bore | 35 mm Length | 0° Angle |
| Weight | approx. 14.7 kg |
Log in
Safety information for bicycles, e-bikes and children's bicycles
The safe and long-term use of bicycles, e-bikes and children's bicycles requires careful checks, regular maintenance and proper handling. These instructions provide you with practical recommendations for safe use and should be taken into account in conjunction with the operating instructions of the respective manufacturer.
1. Safety checks before riding
The following checks should be carried out before every journey:
Brakes and steering: Test the functionality of the brakes and ensure that the steering is smooth and stable.
Tyres and wheels: Check that the tyres are correctly inflated and that the wheels and quick-release skewers are secure.
Fastenings: Check that attachments such as mudguards, pannier racks, saddle and pedals are securely fastened.
Accessories and load: Ensure that luggage and accessories are correctly fitted and that the permitted load capacity is not exceeded.
2. Technical safety and authorised use
Component inspection: Regularly inspect safety-relevant components such as the frame, fork, handlebars, seat post and brakes for damage. Do not use the bike if there are visible defects.
Maximum load capacity: Observe the weight limits for the total weight (bike, rider, payload and trailer, if applicable). The details can be found in the manufacturer's information.
Proper use: Only use the bike or e-bike within the scope of the intended use category. Improper use leads to safety risks.
Accessories and modifications: Only use approved accessories such as child seats or trailers and do not make any unauthorised modifications, especially to the drive system of e-bikes.
3. Special instructions for e-bikes
Battery and charging process:
Only use batteries and chargers approved by the manufacturer.
Charge the battery in a safe place and in accordance with the temperature specifications.
Remove the battery before transporting the e-bike.
Electric assistance:
Familiarise yourself with the assistance modes and the pushing aid. Test the e-bike in a safe environment first, especially with different loads or difficult ground conditions.
Run in the disc brakes:
Run in new brakes before your first big ride to ensure optimum braking performance.
Transport specifications:
Observe the manufacturer's instructions and legal regulations when transporting.
Component manuals:
For detailed information on e-bike systems from drive component manufacturers, find help here:
For Fazua motors:
https://fazua.com/de/support/help-center/knowledge-base/fazua-app/
For Bosch motors:
https://help.bosch-ebike.com/de/help-center#wss-manuals
For Shimano motors:
https://lifestylebike.shimano.com/de/support/
4. Special safety rules for children's bikes
Duty of supervision: Children may only use bicycles under the supervision of a responsible person.
Appropriate size and equipment: Make sure that the bike is age-appropriate and that all safety devices (e.g. brakes, reflectors, chain guard) are intact.
Loading and accessories: Attach child seats and pannier racks securely and ensure that the load capacity is not exceeded.
5. Care and maintenance
Cleaning: Use a soft cloth and mild cleaning agents. Avoid high-pressure cleaners to prevent damage to electrical and mechanical components.
Regular inspections: Schedule regular maintenance at a qualified specialist company to check for wear and ensure safety.
Spare parts: Only use original or approved spare parts to maintain the functionality of the bike.
6. Behaviour after the ride
Documenting damage: In the event of recognisable damage or malfunctions, the bike must not be used any further. Have it checked by a specialised company.
Avoid hot components: Avoid contact with heated components such as brake discs or drive units to prevent burns.
Final notes
This safety information provides you with a comprehensive overview for the safe use of bicycles, e-bikes and children's bicycles. Always follow the operating instructions of the respective manufacturer and contact a specialist dealer if you have any questions. Safe and responsible handling not only ensures your safety, but also extends the service life of your bike.
