Winora Sinus FS X12 27.5 inch Performance CX 800 Wh
-
Available immediately, with you in 6 - 8 working days
-
Fast delivery!
-
Convenient financing with easyCredit instalment purchase
-
100,000+ satisfied customers
-
Pay only after 30 days further information

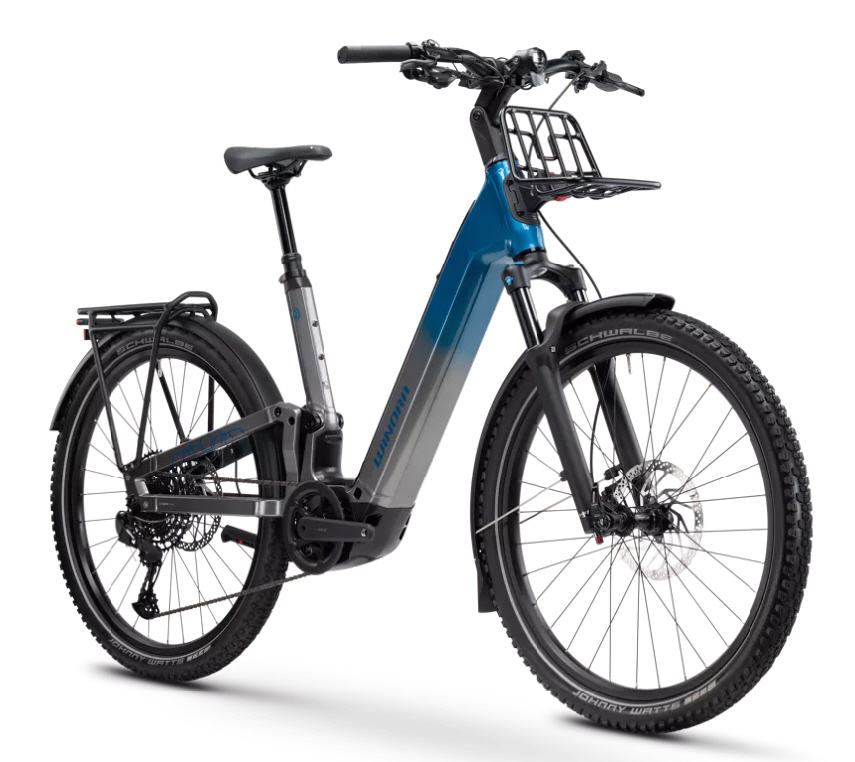

Light as a feather through every day. The Winora Sinus FS X12 takes this motto literally. Thanks to its fully set-up with frame suspension, our new comfort e-bike offers maximum lightness on all your tours. The MTB-inspired suspension is by no means the only feature that promises maximum riding enjoyment: the latest generation of the Bosch Performance CX drive with 800 Wh battery transforms even steep mountains into flat stretches, while the lowerable seat post and low step-through make getting on and off the bike in city traffic noticeably easier. Thanks to the Klickfix mount with front luggage rack and the luggage rack on the rear frame triangle, you can enjoy full suitability for everyday use. In typical Winora fashion, the bike also has a permissible total weight of 150 kg - and can therefore also carry heavy loads. By the way, you won't feel it when pedalling. Because riding this e-bike is as light as a feather.
This bike arrives (almost) fully assembled. All you have to do is straighten the handlebars and attach the pedals.
| Frame | Winora aluminium 6061, 27.5", 100mm |
| Frame shape | Tiefeinstieg |
| Material | Aluminium |
| Gender | Unisex |
| permissible total weight | 150 kg |
| Fork | SR Suntour XCR34 2CR DS Boost, 100mm |
| Manufacturer shift group | Sram |
| Rear derailleur | Sram SX Eagle 12s |
| Number of gears | 1 x 12 |
| Circuit type | Kettenschaltung |
| Crank handle | XLC Crius ISIS Cranks + SRAM Eagle T-Type Chainring |
| Cassette | Sram PG-1210 Eagle, HG, 11-50T |
| Drive type | Kettenantrieb |
| Freewheel/coaster | Freilauf |
| Pedals included in the scope of delivery | ja |
| Rims | Ryde Andra 40 32H, eyeletted, hollow chamber rim, aluminium |
| Hubs | front: Shimano HB-TC500-15-B 15x110 mm, 32H, CL, rear: Shimano FH-TC500-HM 12x142mm, 32H, CL, HG |
| Wheel size | 27,5 Zoll |
| Tyres | Schwalbe AL Grounder Performance 60-584 |
| Motor manufacturer | Bosch |
| Engine | Performance Line CX |
| max. torque | 85 Nm |
| Reach | up to 150 km |
| Support for | up to 25 km/h |
| Battery | Bosch 800Wh PowerTube |
| Display | Bosch Kiox 300 |
| Brakes | Shimano Deore BR-MT420, 4 pistons |
| Handlebars | JD TR28AL, Dia. 31.8 mm, Rise: 19 mm, 680 mm |
| Seat post | Limotec Alpha 1 Dropper, Dia. 34.9 mm, Travel: 100 mm |
| Saddle | Selle Royal Vivo |
| Stem | Satori TDS-673 Dia. 31.8 mm, L: 90 mm |
| Lighting | front: Litemove SEC-150, 150 Lux, rear: Spanninga Aerline 2.0 XE Brakelight, 6-48 V |
| Accessories/Miscellaneous | Charger included in the scope of delivery |
| Weight | approx. 23.9 kg |
| Damper | FOX Factory Air Float X Factory 205X65 |
| Impellers | Newmen Beskar 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready |
Log in
Important safety information for electric bikes
The safety information is part of the operating instructions, in which all relevant information is described.
The digital operating instructions can be accessed here www. Cube.eu/downloads.
Reading the safety information does not release you from the obligation to read and observe the operating instructions!
Failure to observe the operating instructions can lead to dangerous driving situations, falls, accidents and damage to property.
General
Disregarding the intended use can lead to the failure of components and materials with the risk of accidents and injury:
Comply with the restrictions of the specified utilisation class / bike classification
Do not exceed the permissible total weight (electric bike + rider + load + trailer if applicable)
Observe the manufacturer's specifications for transporting people and loads
Manipulation of the drive system, in particular tuning, is not permitted
Check the electric bike for possible damage before every ride, especially to the frame, fork, handlebar/stem unit, drive unit and seat post
Do not use the electric bike if any damage is found
Be aware of the increased risk of injury due to potentially high temperatures of individual components (e.g. brakes, drive unit, headlights)
Observe the manufacturer's instructions for attaching add-on parts (bags, lock, child seat, carrier systems, etc.) and for using a trailer
Observe the legal regulations applicable in the respective country for use on public roads
When transporting the electric bike, observe the instructions of the manufacturer, the legislator or the transport company
Before the journey
Before each journey, check in particular
the correct function of the brakes, steering, chassis and lights,
the tight fit of handlebars, stem, wheels, mudguards and pedals and
the tyre pressure
The tyres must be checked and adjusted in accordance with the manufacturer's instructions.
Riding behaviour
Initially familiarise yourself with the riding and braking behaviour as well as the electric assistance modes and the push assistance (if available), especially with different loads, in wet conditions and on loose surfaces
After the journey / maintenance
In the event of damage or malfunctions, the electric bike must be checked by a specialist company before further use
Have the electric bike checked and serviced regularly by a specialised company in accordance with the manufacturer's specifications in order to avoid hazards, e.g. due to wear and tear
Observe the specified torques (Nm) for the assembly of components
Only use batteries and chargers approved by the manufacturer
Observe the manufacturer's specifications for charging and using the battery, particularly with regard to the ambient temperature and location of the charging process
Only use undamaged and unmodified batteries and chargers
Modifying the add-on parts on the electric bike can affect safety and approval. Contact your specialist dealer before making any such changes.
Contact your specialist dealer if you are unable to carry out the described work on your electric bike (e.g. making adjustments) yourself, if you feel unsure or if you do not have the right tools.
Important safety information for bicycles
The safety information is part of the operating instructions, in which all relevant information is described.
The digital operating instructions can be accessed here www. Cube.eu/downloads.
Reading the safety information does not release you from the obligation to read and observe the operating instructions!
Failure to observe the operating instructions can lead to dangerous driving situations, falls, accidents and damage to property.
General
Disregarding the intended use can lead to the failure of components and materials with the risk of accidents and injury:
Comply with the restrictions of the specified utilisation class / bike classification
Do not exceed the permissible total weight (bike + rider + load + trailer if applicable)
Check the bike for possible damage before every ride, especially to the frame, fork, handlebar/stem unit and seat post
Do not use the bike if you notice any damage
Be aware of the increased risk of injury due to potentially high temperatures of individual components (e.g. brakes, headlights)
Observe the manufacturer's instructions for attaching add-on parts (bags, lock, child seat, carrier systems, etc.) and for using a trailer
Observe the legal regulations applicable in the respective country for use on public roads
When transporting the bike, observe the manufacturer's, legal or transport company's instructions
Before the journey
Before each journey, check in particular
the correct function of brakes, steering, chassis and lights,
the tight fit of handlebars, stem, wheels, mudguards and pedals and
the tyre pressure
The tyres must be checked and adjusted in accordance with the manufacturer's instructions.
Riding behaviour
Initially familiarise yourself with the riding and braking behaviour, especially with different loads, wet conditions and loose surfaces
After the ride / maintenance
In the event of damage or malfunctions, the bicycle must be checked by a specialised workshop before further use
Have the bike checked and serviced regularly by a specialist company in accordance with the manufacturer's specifications in order to avoid hazards, e.g. due to wear and tear
Observe the specified torques (Nm) for the assembly of components
Contact your specialist dealer if you are unable to carry out the described work on your bike (e.g. making adjustments) yourself, if you feel unsure or if you do not have the right tools.
Important safety information for children's bikes
The safety information is part of the operating instructions, in which all relevant information is described.
The digital operating instructions can be accessed here www. Cube.eu/downloads.
Reading the safety information does not release you from the obligation to read and observe the operating instructions!
Failure to observe the operating instructions can lead to dangerous driving situations, falls, accidents and damage to property.
General
The bicycle may only be used under the supervision of a parent or guardian
Disregarding the intended use can lead to the failure of components and materials with the risk of accidents and injury:
Comply with the restrictions of the specified utilisation class / bike classification
Do not exceed the permissible total weight (bike + rider + load + trailer if applicable)
Check the bike for possible damage before every ride, especially to the frame, fork, handlebar/stem unit and seat post
Do not use the bike if you notice any damage
Be aware of the increased risk of injury due to potentially high temperatures of individual components (e.g. brakes, headlights)
Observe the manufacturer's instructions for attaching add-on parts (bags, lock, child seat, carrier systems, etc.) and for using a trailer
Observe the legal regulations applicable in the respective country for use on public roads
When transporting the bike, observe the manufacturer's, legal or transport company's instructions
Before the journey
Before each journey, check in particular
the correct function of brakes, steering, chassis and lights,
the tight fit of handlebars, stem, wheels, mudguards and pedals and
the tyre pressure
The tyres must be checked and adjusted in accordance with the manufacturer's instructions.
Riding behaviour
Initially familiarise yourself with the riding and braking behaviour, especially with different loads, wet conditions and loose surfaces
After the ride / maintenance
In the event of damage or malfunctions, the bicycle must be checked by a specialised workshop before further use
Have the bike checked and serviced regularly by a specialised company in accordance with the manufacturer's specifications in order to avoid hazards, e.g. due to wear and tear
Observe the specified torques (Nm) for the assembly of components
Contact your specialist dealer if you are unable to carry out the described work on your bike (e.g. making adjustments) yourself, if you feel unsure or do not have the right tools
